Fixed Ball Valve

We are a professional valve maker holding ISO, API and CE certifications. We own advanced production equipment and a full set of quality control systems. We also accept OEM and ODM orders, with flexible minimum order quantities. Our reliable products are exported globally and win wide recognition from clients.

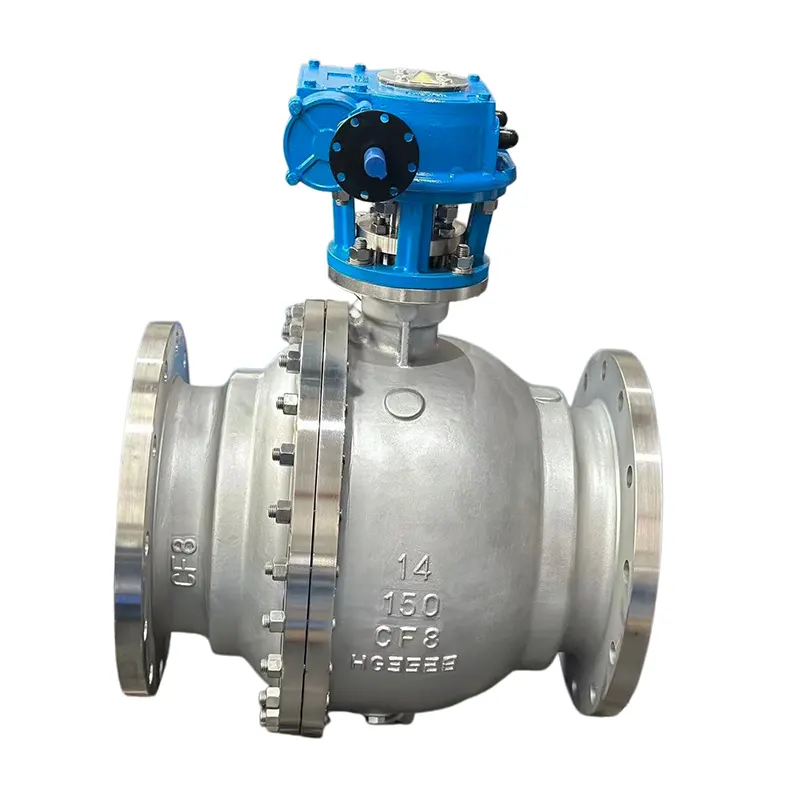

What is a trunnion mounted fixed ball valve?

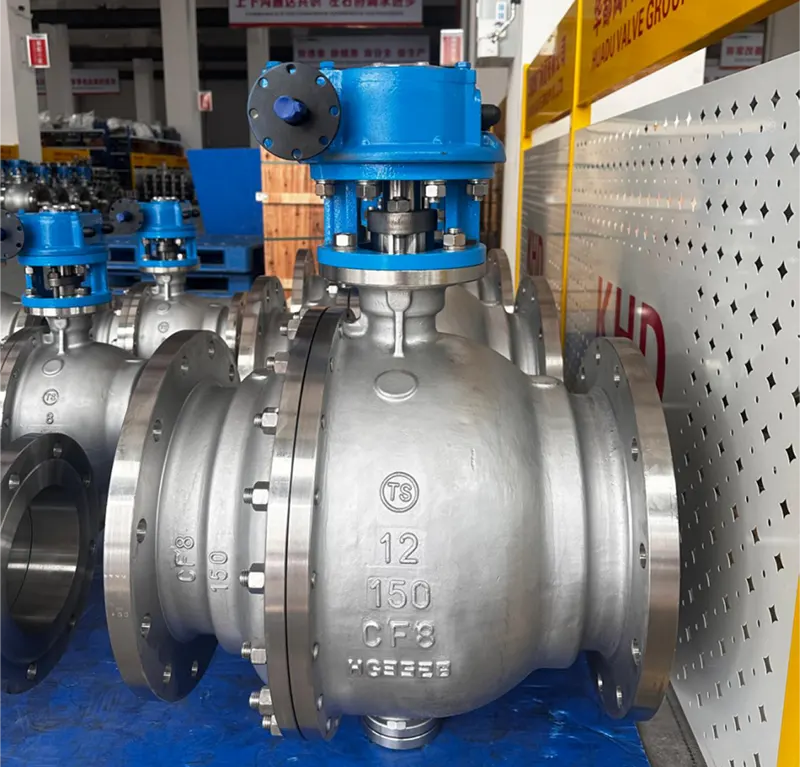

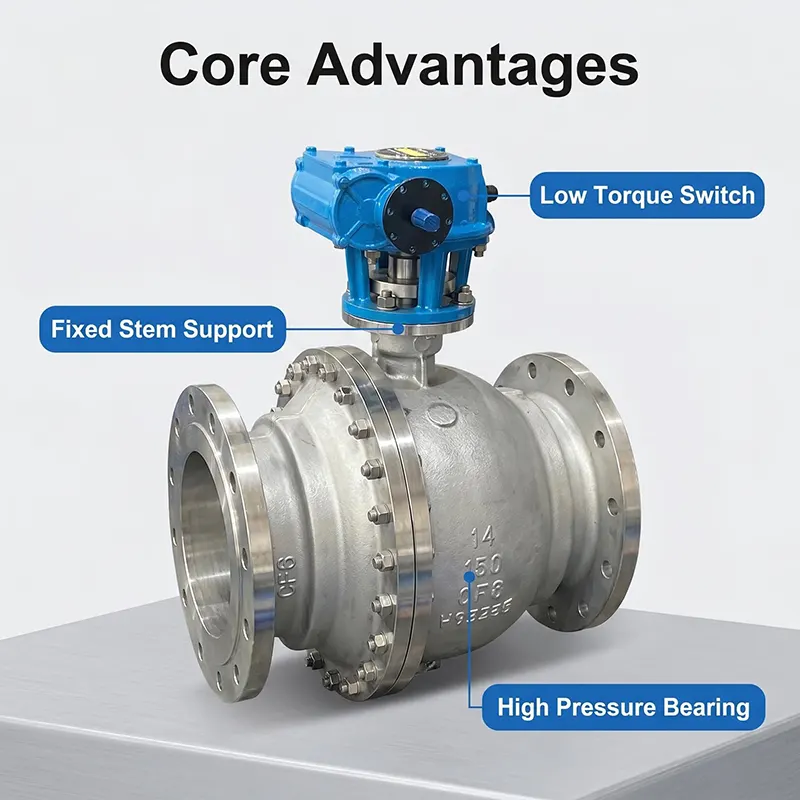

Trunnion mounted fixed ball valves are engineered for high pressure and large diameter pipelines. Compared with floating ball valves, the ball is locked in place via the upper valve stem and lower trunnion shaft. It merely rotates for opening and closing without drifting when pressure applies. The trunnion structure takes most fluid pressure load, effectively lowering friction on the sealing seat. This design makes fixed ball valves much more stable and durable for long-term continuous industrial operation.

What is the difference between fixed ball valve and floating ball valve?

This is the most frequently asked question by global buyers. The core difference lies in the ball supporting structure and pressure bearing mode.

Floating ball valves have no lower trunnion support. When the pipeline pressure rises, the medium pushes the ball tightly against the downstream seat. This creates large friction, high operating torque and fast seat wear. Floating types are only suitable for small size and low to medium pressure working conditions.

Fixed trunnion ball valves fix the ball in position. The pressure load is undertaken by the trunnion shaft and body bearing, not the sealing seat. It features low operating torque, slight seat abrasion, stable sealing performance and longer service life. For DN100 / NPS4 and above large-bore or high-pressure pipelines, fixed ball valves are always the first choice in industrial engineering.

Key Attributes

Where are fixed ball valves commonly used?

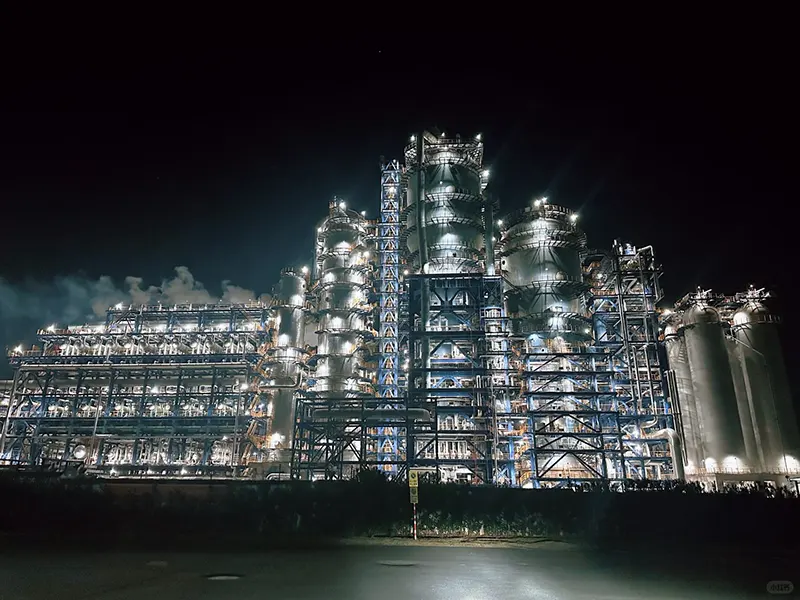

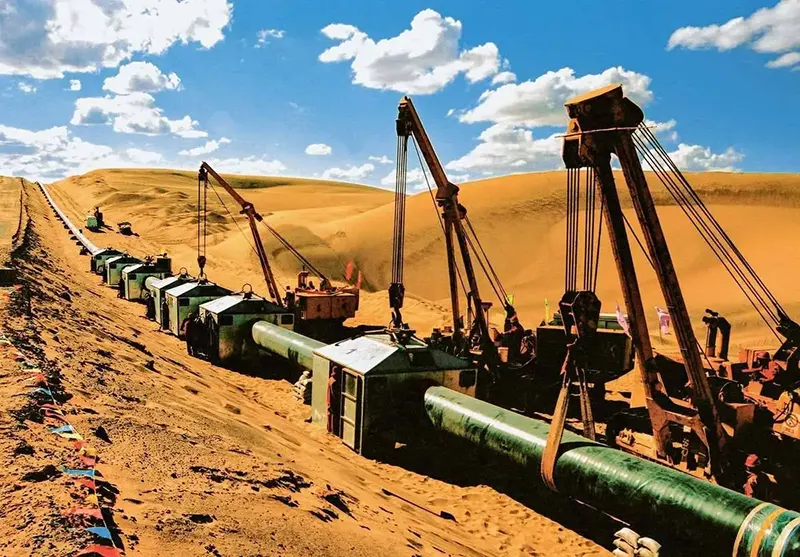

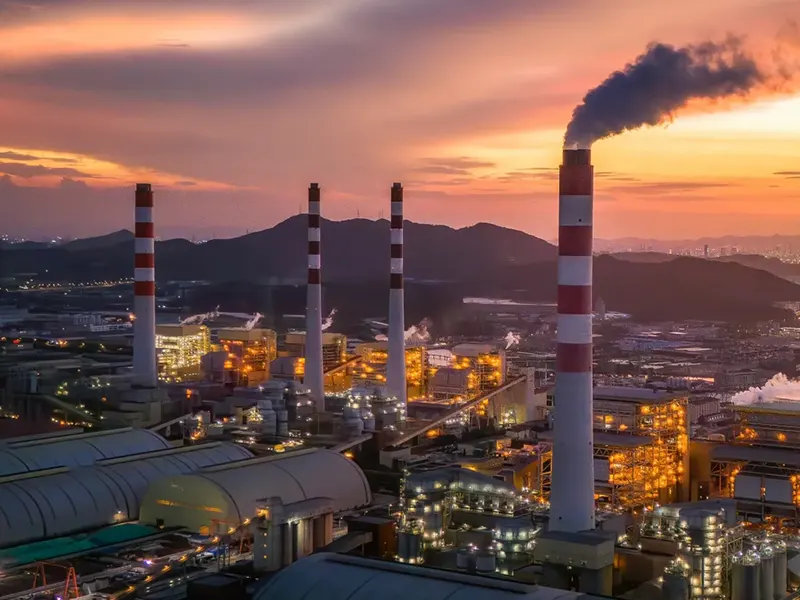

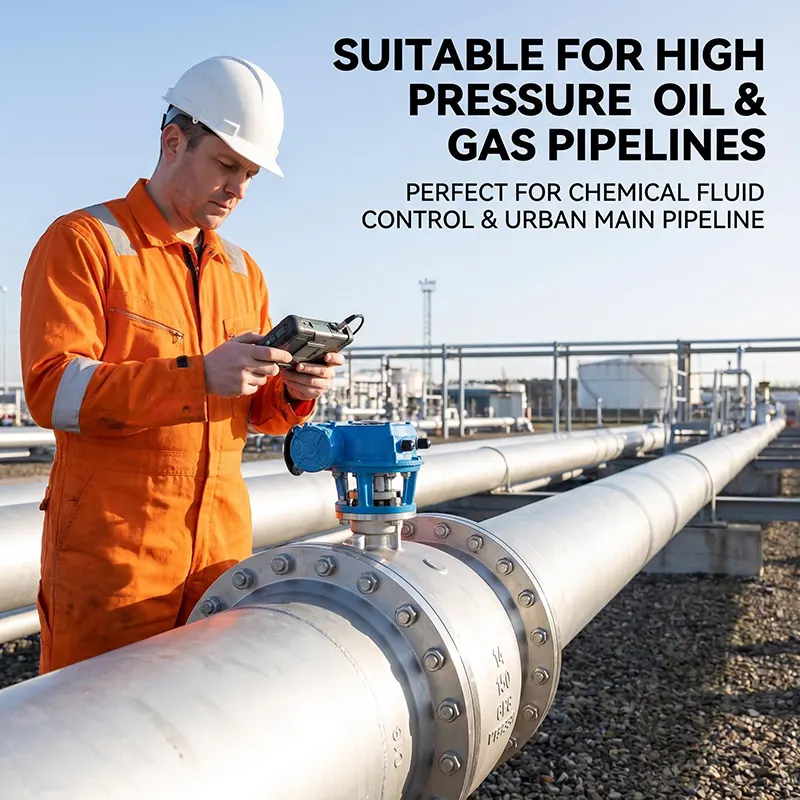

Trunnion fixed ball valves are widely applied in heavy-duty industrial scenarios that require stable sealing and long service life. Typical industries include oil and gas transmission pipelines, petrochemical plants, thermal power stations, water treatment projects, natural gas stations and long-distance industrial fluid delivery systems. It is especially suitable for working conditions with high pressure, large flow rate, frequent switching and strict zero-leakage requirements.

What materials do you support for fixed ball valve bodies and internal parts?

We offer a range of body and internal materials to match different working conditions. WCB carbon steel is our standard choice for general industrial pipelines, delivering reliable durability at a competitive price. For services with corrosive liquid or gas, we select CF8 (304) and CF8M (316) stainless steel for dependable corrosion resistance.

We are also able to source special materials such as low-temperature steel and alloy steel for harsh, demanding projects.For internal parts such as the ball and valve seats, we are able to configure different combinations based on your actual working requirements.Metal hard seal parts are available for harsh working conditions, while classic PTFE and RPTFE soft seal materials are supplied for standard sealing demands, fully adapting to diverse project requirements。

What standards and certifications do your fixed ball valves comply with?

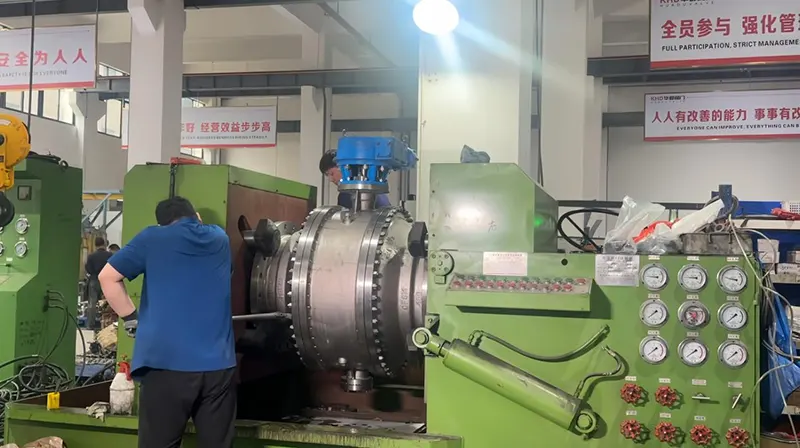

All our trunnion mounted fixed ball valves are manufactured strictly according to API 6D and ASME B16.34 international standards. Our factory has complete API, ISO and CE certifications. Every finished valve passes professional shell pressure test, seat tightness test and air tightness test before delivery. All test reports and certification documents can be provided to support customers’ project inspection and customs clearance.

Should I choose soft seal or metal seal fixed ball valve?

It depends on your pipeline medium and working temperature. Soft-seated fixed ball valves adopt PTFE or RPTFE sealing, achieving bubble-tight zero leakage. They are ideal for clean water, gas and normal-temperature oil medium with strict sealing requirements.

Metal hard-sealed fixed ball valves can adapt to high temperature, high pressure and medium containing tiny solid particles. The metal-to-metal sealing structure is wear-resistant and high-temperature resistant, widely used in harsh petrochemical and high-temperature pipeline conditions.

Can fixed ball valves be equipped with electric or pneumatic actuators?

Yes, fully customizable. Our fixed ball valves can be matched with manual gear operation, pneumatic actuators, electric actuators and hydraulic actuators. Thanks to the trunnion support structure, the operating torque is much lower than floating ball valves. It can effectively reduce the configuration cost of actuators and ensure more stable automatic opening and closing operation.

What is your quality guarantee and after-sales policy?

All our trunnion mounted fixed ball valves enjoy long-term quality warranty. We provide complete technical support, installation guidance and after-sales consultation. We focus on long-term cooperative relationships with global clients, not one-time deals.
