Customized Carbon Steel Ball Valve for Your Specific Requirements
Huadu is a professional source valve factory based in Wenzhou, China. We focus on product research, development and technical upgrading, and consistently deliver high-quality products to customers.Our carbon steel ball valves are best-selling items widely used in various industries. A large number of repeat customers fully recognize and trust our quality. You are welcome to order a sample first to check the quality; our sample speaks for itself.We also have three-way ball valves, electric stainless steel flanged ball valves and more.

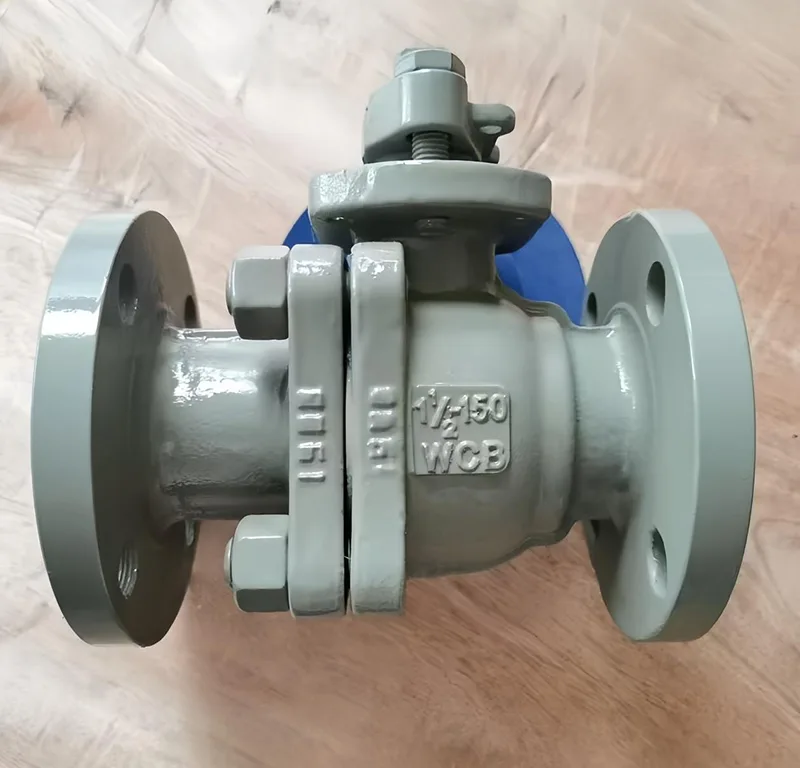

Specifications and Parameters of Carbon Steel Ball Valve
Body Material：Carbon Steel WCB, Low Temperature Carbon Steel LCB / LCC
Nominal Diameter：DN15～DN1000 Inch Size：1/2"～40"
Bore Type：Full Bore, Reduced Bore
Pressure Rating
GB Pressure Rating：PN16, PN25, PN40, PN64, PN100
ANSI Pressure Rating：Class 150, Class 300, Class 600, Class 900, Class 1500
End Connection：Flanged End,Threaded End, Socket Weld End, Butt Weld End
Structure Type
One-Piece Carbon Steel Ball Valve,2-Piece Carbon Steel Ball Valve
3-Piece Carbon Steel Ball Valve,Floating Ball Valve,Trunnion Mounted Ball Valve
Operation Mode
Lever Operated,Gear & Handwheel Operated,Pneumatic Actuated
Electric Actuated,Hydraulic Actuated
Applicable Medium：Water, Sewage, Oil, Diesel, Crude Oil, Steam, Natural Gas, Chemical Fluid
Advantages of Carbon Steel Ball Valve
Low flow resistance with smooth flow passage, no medium easy to remain inside.
Quick and easy on-off operation with 90-degree rotation, time-saving and labor-saving.
Excellent sealing performance, tight closure, effectively avoiding internal leakage.
Carbon steel WCB features high temperature and high pressure resistance, wide working condition adaptability.
Simple structure, low failure rate, convenient for later maintenance and disassembly.
Wear and erosion resistant, ideal for oil, natural gas, steam and chemical medium transportation.
Long service life and cost-effective, the preferred choice for industrial pipelines.
Full bore design is available, convenient for pipeline pigging and cleaning.
Certification & Custom Service
With ECM Certificate
Fire safe and anti-static design
OEM & ODM customized service available
Custom specifications and working parameters are acceptable
- View as
Carbon Steel ANSI Ball Valve
This is a Carbon Steel ANSI Ball Valve produced in accordance with the ANSI standard. It is suitable for US standard system pipelines in industries such as petrochemicals, urban water supply, and power energy. It is used to achieve precise on-off and opening/closing operations of pipeline media, helping to ensure the safe and efficient operation of the pipeline system. We provide selection support and can respond quickly to purchase quotations.

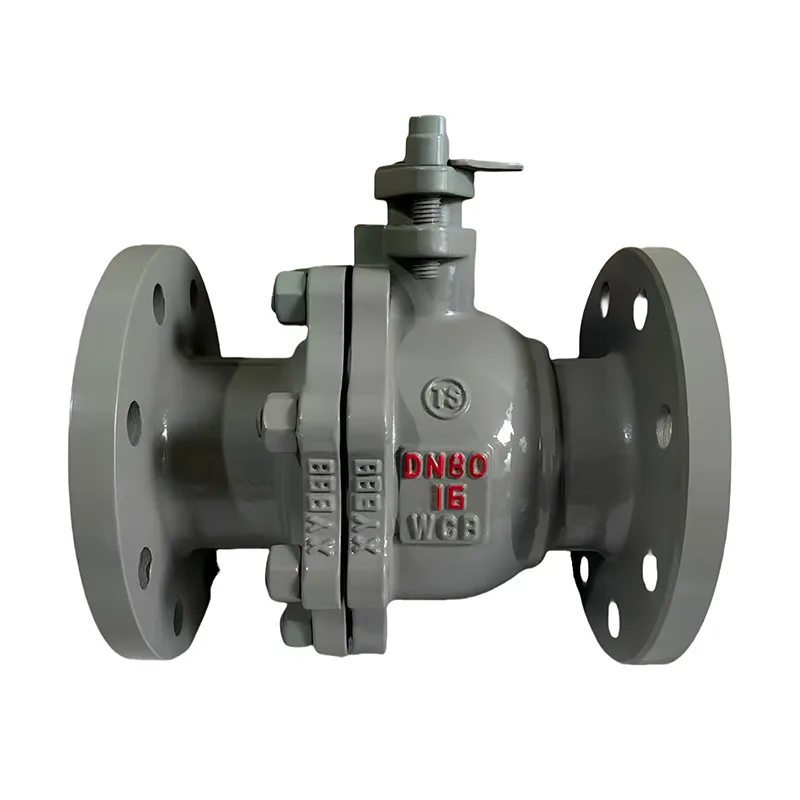

Carbon Steel National Standard Ball Valve
This is a Carbon Steel National Standard Ball Valve produced by Huadu Valve Factory. The fluid control solution range covers from DN25 to DN300. High-quality raw materials: the valve body is made of WCB carbon steel.

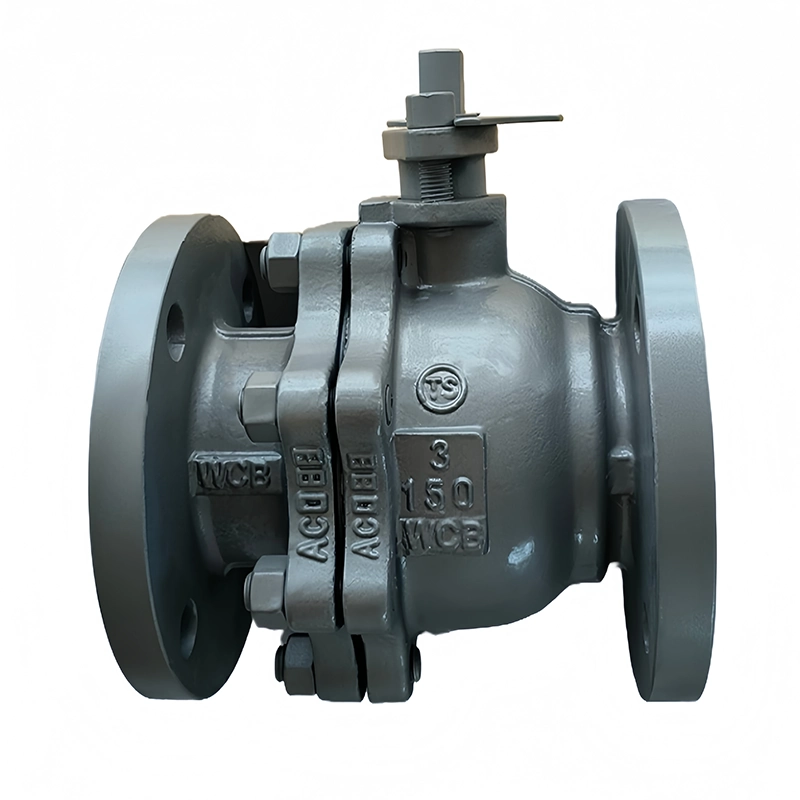

Carbon Steel Flange Ball Valve
Huadu Valves is a professional manufacturer deeply engaged in the Carbon Steel Flange Ball Valve industry. Adhering to the principle of "professional manufacturing and quality first", it is committed to providing one-stop valve solutions for partners both at home and abroad. We welcome you to contact us at any time to jointly explore new opportunities for cooperation!
Huadu Valve is a professional Carbon Steel Ball Valve manufacturer and supplier in China. We warmly welcome you to buy high quality products at competitive price from our factory.
