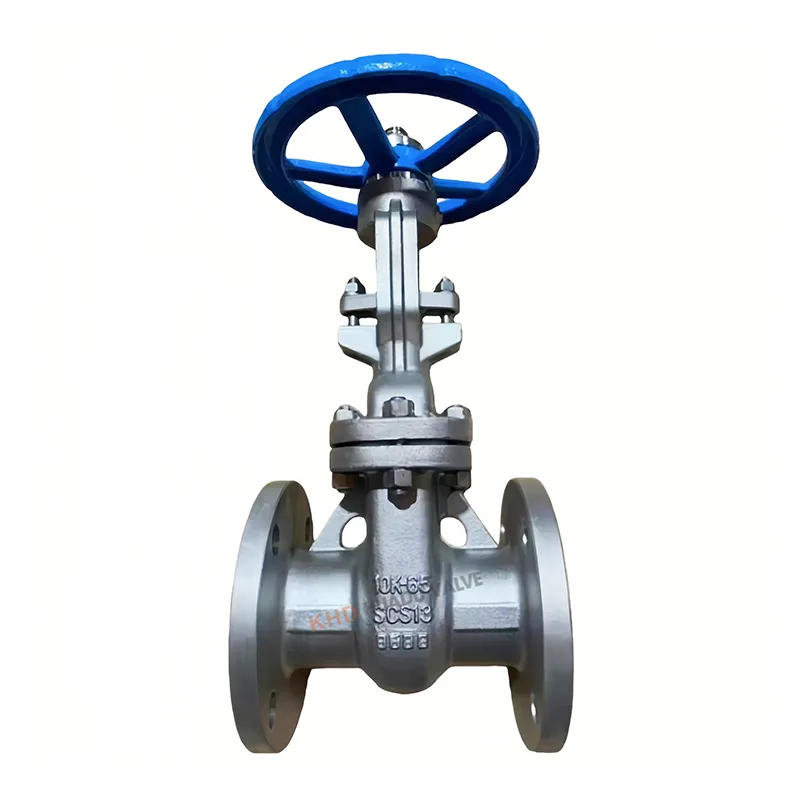

Stainless Steel JIS Gate Valve

Huadu Valves supplies the Stainless Steel JIS Gate Valve, which are cut-off type valves that comply with the Japanese industrial pipeline standards. They mainly cover fields such as petrochemicals, municipal water supply and drainage, and general industrial equipment. They can directly meet the demand for foreign trade orders that adopt the JET system.

Core Parameters and Compatibility

The parameters of this product strictly follow the Japanese industrial valve standards. The core configuration is as follows:

- Size range: DN15-DN200

- Pressure rating: 10K-20K

- Material configuration: The Stainless Steel JIS Gate valve body and valve cover are made of SCS13 stainless steel, the valve stem is made of the same material stainless steel, and the sealing surface is processed by precise grinding

- Temperature range: -29℃ to 425℃, suitable for most non-corrosive media under standard industrial conditions

- Connection method: Flange connection, in accordance with the JIS B2220 standard for flanges

- Operating mode: Manual exposed stem type, allowing for intuitive determination of the valve opening, facilitating on-site daily maintenance

Quality Assurance and Testing

The production process of Huadu Valves' standard gate valves complies with the ISO quality management system standards and also meets the quality requirements of standard valves.

- Production equipment: The workshop is equipped with CNC machining centers, precision grinding machines, standard pressure testing benches, etc.

- Factory inspection: Each Stainless Steel JIS Gate Valve must undergo water pressure strength test and sealing performance test.

In addition, product inspection reports that meet the standards of standard valves can be provided according to customer needs, to meet the compliance requirements of export orders.

Foreign trade supporting services and sample support

For foreign trade orders of gate valves, the factory provides market-applicable supporting services

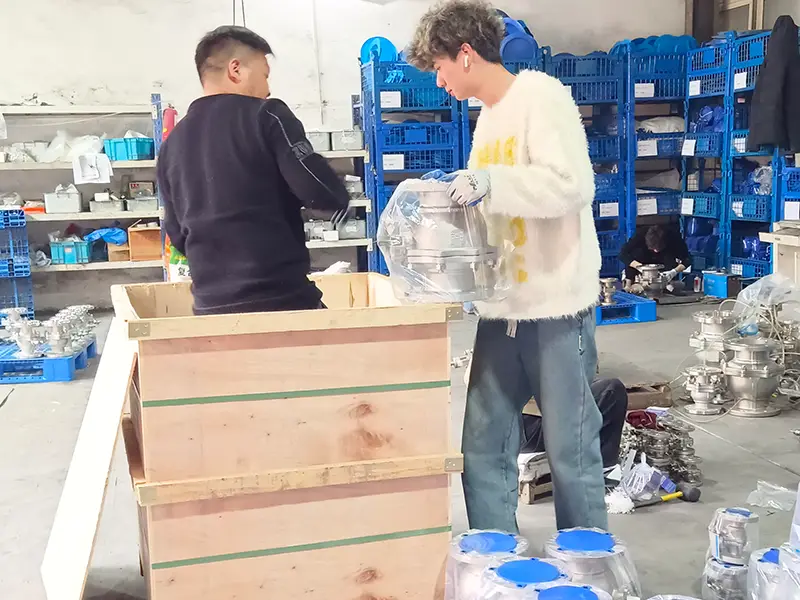

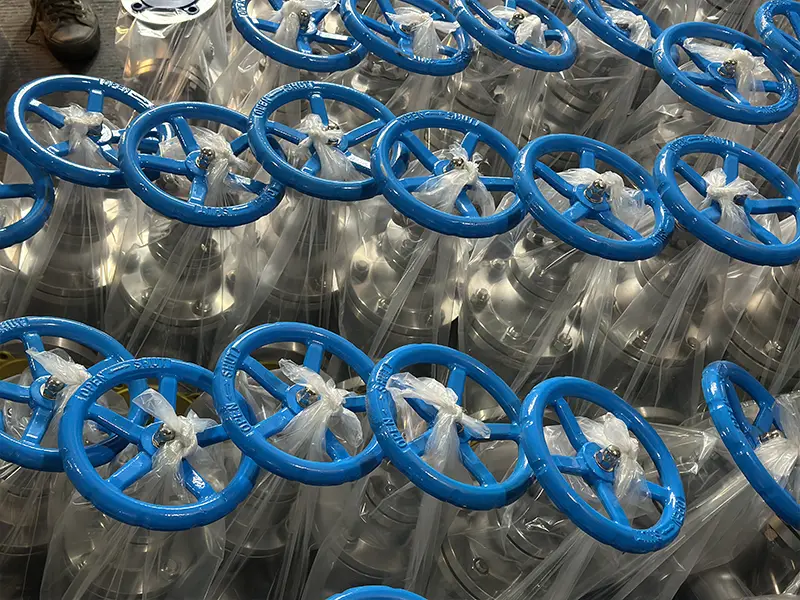

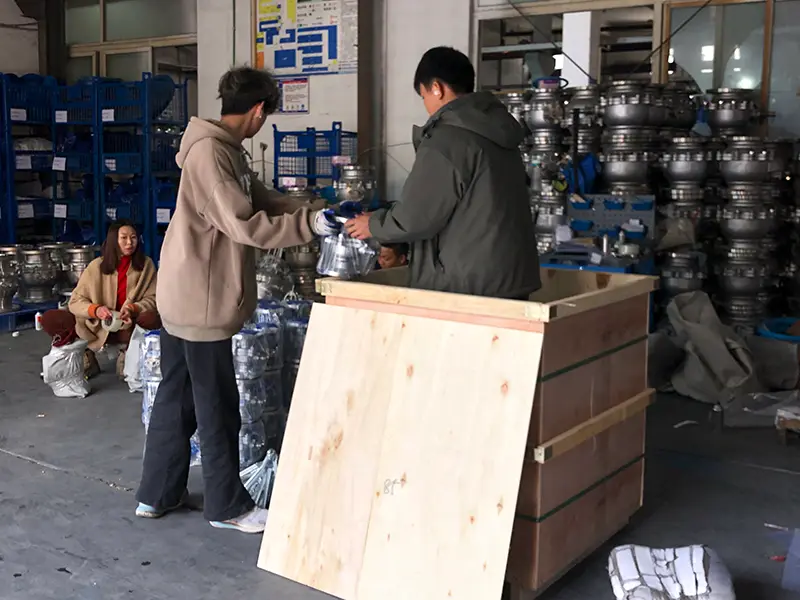

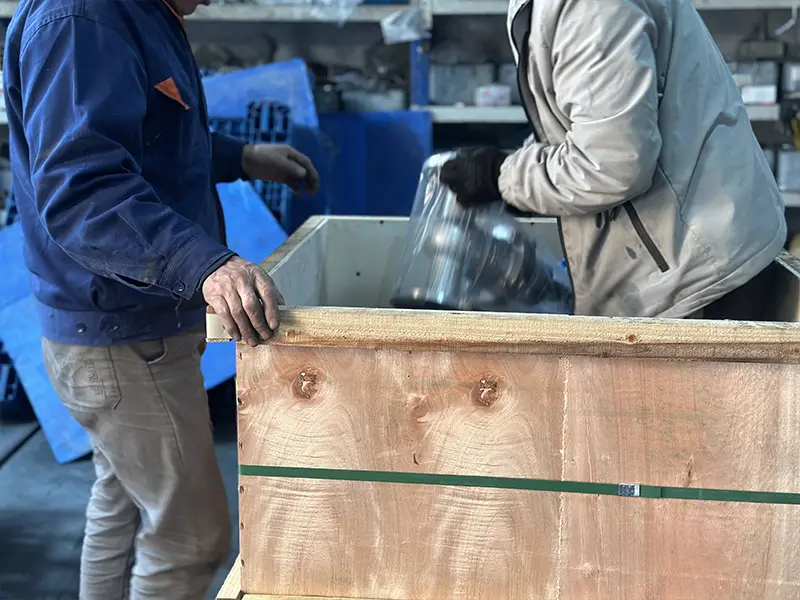

- Packaging method: Outer layer wrapped with moisture-proof film to prevent the valve body from being knocked or getting damp during transportation;

- Logistics options: Supports sea freight, air freight, EXW, FOB, CFR and other foreign trade trade terms;

- Customs clearance support: Provides complete customs clearance materials such as bills of lading, packing lists, commercial invoices, etc., to assist customers in completing the customs clearance process in regions adopting the JIS system;

- Sample support: Can provide small-sized Stainless Steel JIS Gate Valve samples for customers to conduct material, size and compatibility tests. The sample production process is consistent with the mass production process, ensuring the consistency between the sample and the mass-produced products.

The advantages of compatibility and the reasons for cooperation with peers

Compared to common market valves, the compatibility advantages of this gate valve lie in the following: its parameters and tests are strictly in accordance with the JIS standard. The flange size, material grade, etc. are exactly the same as those of Japanese pipelines, avoiding the adjustment costs when common valves are adapted to the Japanese system; at the same time, it can directly provide the corresponding detection documents for the Japanese standard, reducing the additional compliance costs for customers.

The reasons for choosing Huadu standard gate valves include

1. Equipment and process: The workshop is equipped with specialized equipment for manufacturing Stainless Steel JIS Gate Valve, and the production process complies with the standard requirements, ensuring product accuracy;

2. Customization capability: Parameters can be adjusted according to the specific needs of customers' standards.

3. After-sales service: Installation and maintenance manuals in English version are provided. Technical support can be accessed through emails or video conferences to assist in resolving operation and maintenance issues.

Product Specification Parameters

Packaging
