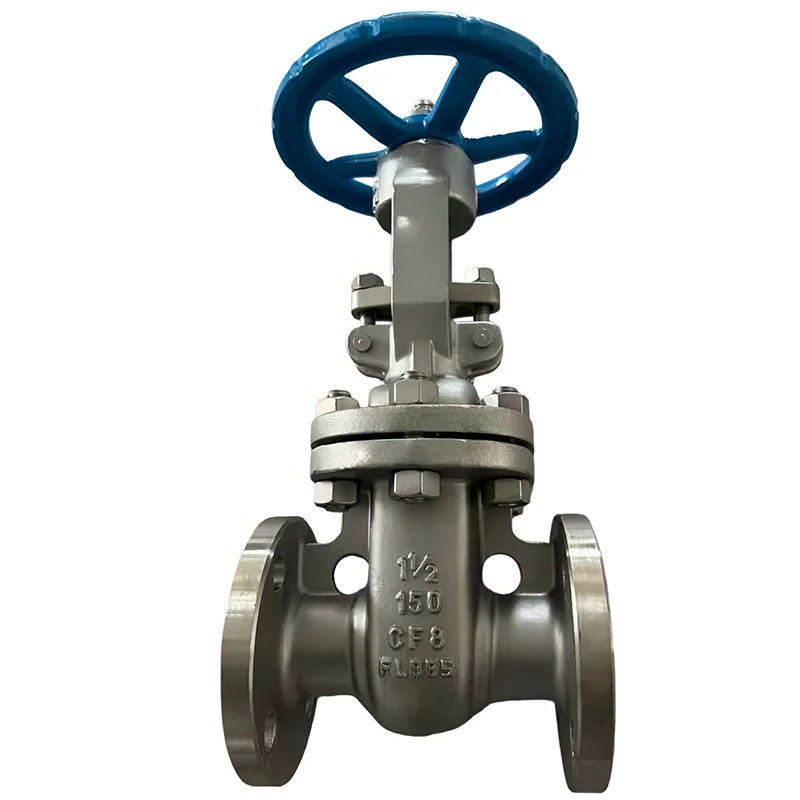

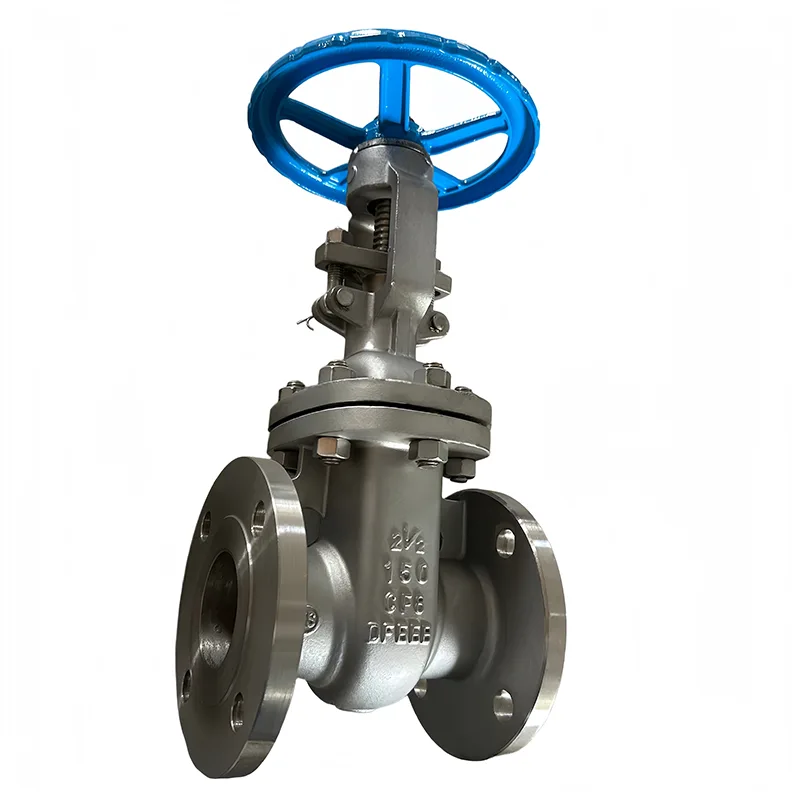

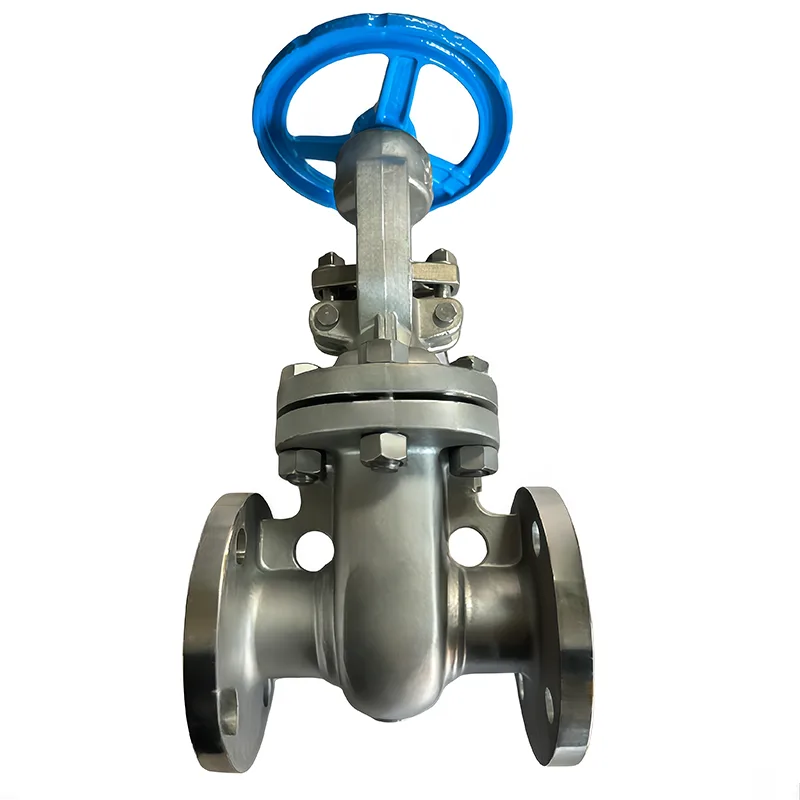

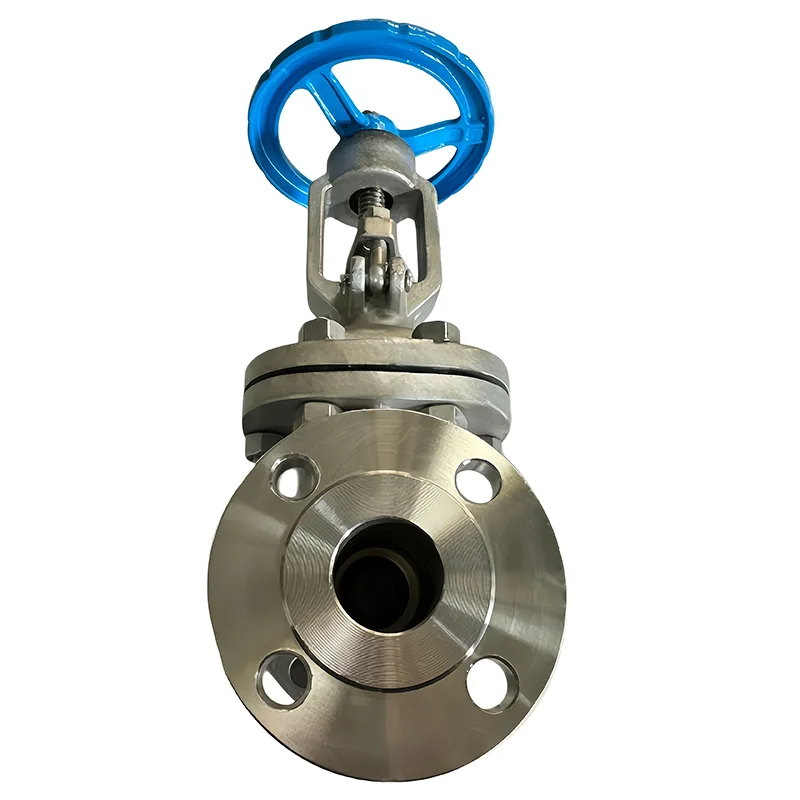

Stainless Steel API Flanged Gate Valve

Core Structure & Working Principle

The Stainless Steel API Flanged Gate Valve mainly consists of key parts including valve body, bonnet, gate disc, stem, handwheel (or actuator) and flange. Its core structural design complies with American standards to ensure stable operation.

Working Principle

Rotating the handwheel (or driving the actuator) lifts and lowers the valve stem, thereby controlling the opening and closing of the gate disc and seat. When the gate disc is fully open, media flows through the full bore without obstruction with minimal pressure drop. When fully closed, it fits tightly with the seat to achieve reliable shut-off.

Gate Disc

Designed in wedge or parallel type. The Stainless Steel API Flanged Gate Valve is most widely used. It can automatically compensate for deformation caused by temperature changes, ensure tight sealing and prevent media leakage.

Valve Stem

Mostly adopts OS&Y (Outside Screw & Rising Stem) design. The stem threads are exposed outside the valve body, making it easy to check the valve opening status. Meanwhile, it prevents threads from being corroded by media and extends service life.

Flanged Connection: Compliant with ANSI flange standards such as ASME B16.5. It can be directly connected to ANSI pipeline systems, featuring easy installation, firm connection, and resistance to high pressure and high temperature.

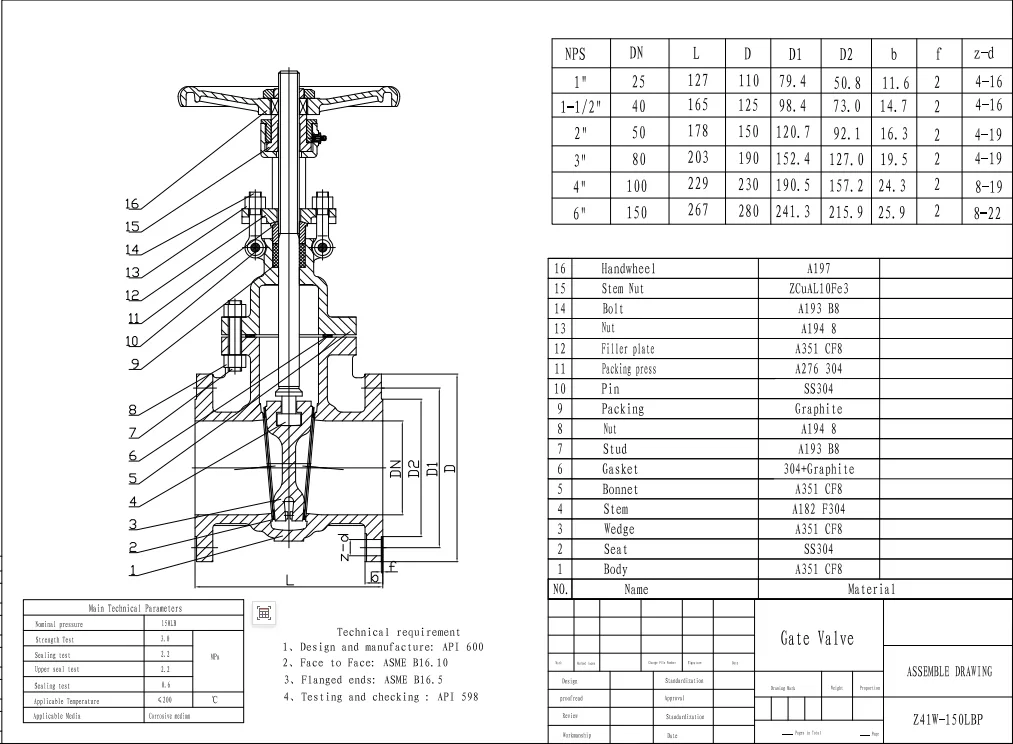

Technical Parameter

Precautions for Use

During the operation of Stainless Steel API Flanged Gate Valve, avoid opening and closing the valve violently, so as to prevent damage to the gate disc and valve seat, which may affect the sealing performance.

Lubricate the valve stem, handwheel and other parts regularly to prevent jamming and extend the service life.

Select appropriate stainless steel material and sealing type according to medium characteristics, to avoid valve corrosion and leakage caused by material mismatch.

Exhibition Experience

Huadu has participated in exhibitions in many regions and countries, including Shanghai, the United States, Germany and other places. We have successfully developed the international market and promoted our products to the global market.

Huadu Company Advantages

Sophisticated Equipment and Comprehensive Inspection Methods

The company has high-precision CNC machines and machining centers to ensure the accuracy and quality of product manufacturing. The company has established a comprehensive service system with a 24-hour service hotline to provide customers with pre-sales, in-sales and after-sales consulting and services.

Professional Team and Full-Process Capabilities

Huadu has professional technology in product marketing, design, manufacturing and inspection, and also has various high-quality talents in the field of enterprise management.

Mature Shipping Process and High-Quality Logistics Partners

A mature shipping process, coupled with high-quality logistics partners, ensures that customers receive the products they need in the shortest possible time.

Comprehensive Service System

We not only produce and sell Stainless Steel API Flanged Gate Valve, but also aim to create greater value for our customers. The company has established a comprehensive service system.
