Welded Gate Valves

As a Chinese valve supplier specializing in pipeline on-off equipment, Huadu Factory has produced this Welded Gate Valves. These are stainless steel gate valves connected by welding - thanks to the corrosion resistance of the CF8 material and the high sealing performance of the welded interface, they have become a practical choice for many pipelines with strict sealing requirements, and are suitable for a variety of mainstream working conditions.

Core selling point advantages

The most prominent feature of this Gate Valve is "stable sealing + durable material": It is made of CF8 stainless steel (corresponding to 304 material). During the material input process at Huadu factory, component testing is conducted. The chromium-nickel content meets the standard, and the corrosion resistance is sufficient to handle the transportation scenarios of clean fluids and neutral media; it adopts a welding connection method, having fewer sealing gaps than flange connections, resulting in lower leakage risks when the pipeline is connected or disconnected; at the same time, it is a stem-type structure, allowing the handwheel operation to directly show the lifting status of the valve stem, eliminating the need for additional checks on the switch status, making on-site operation more convenient.

Technical Specifications

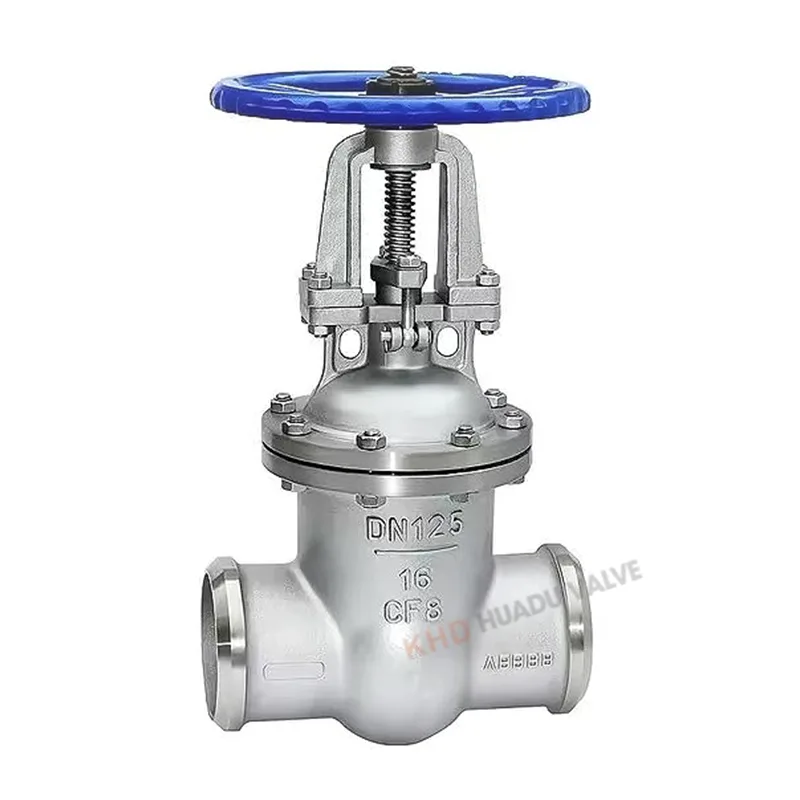

The key parameters can be directly seen from the engraved characters on the valve body: diameter DN125, pressure rating PN16, material designation CF8, all of which are common specifications used in domestic pipelines; the welding interface complies with the connection requirements of national standard pipelines, and there is no need to modify the size of the pipe end; after welding, it can be directly integrated into the existing pipeline system; combined with the exposed stem structure design, the opening and closing stroke of the valve stem is clear, and the pipeline connection can be precisely controlled during operation, without the need for repeated adjustments.

Application fields

The applicable scenarios for this welded gate valve are mostly those requiring high sealing performance: such as the clean fluid transportation pipelines in the food and pharmaceutical industries (with CF8 material, the hygiene property combined with the welded seal can prevent medium contamination); the transportation pipelines for neutral media (like pure water and common solvents) in the chemical field, the welded interface can reduce the risk of leakage; the medium-temperature thermal circulation pipelines in municipal engineering, the exposed stem structure makes it convenient for on-site personnel to quickly confirm the valve status; even for some medium-sized industrial equipment's supporting pipelines, as long as stable on-off control is needed, this welded gate valve can be adapted.

Peer advantages

Compared with ordinary gate valves on the market, the advantages of Huadu's Gate Valves are quite obvious: First, the sealing performance of the welded connection is better than that of flange valves, making them suitable for scenarios with sensitive leakage risks; second, the quality control of the CF8 material is stricter. The factory conducts testing on each batch of raw materials, which is more durable than the non-standard materials of small factories; third, the exposed stem structure is more practical, and no additional disassembly is required for on-site operation, which saves more maintenance time compared to the concealed stem valves.

Price and Freight Advantage

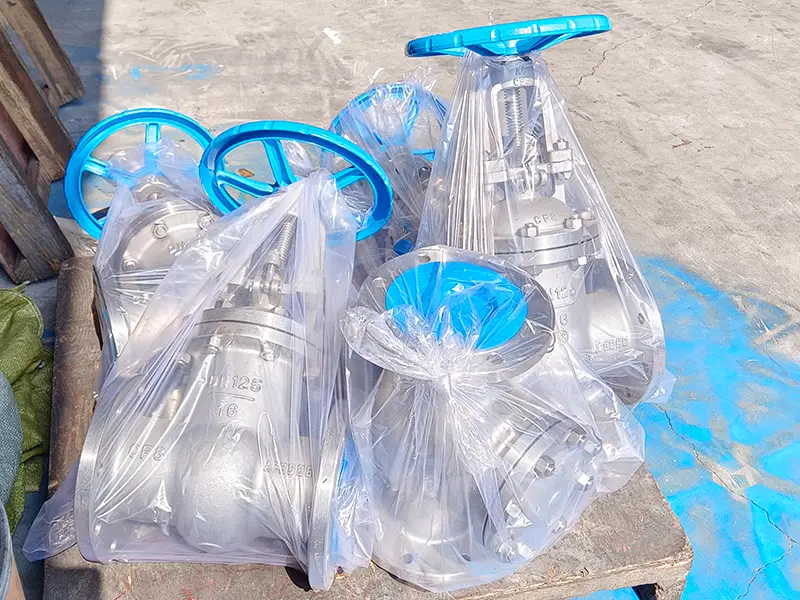

As a factory directly supplied product from a Chinese domestic manufacturer, this welded gate valve has a price that is nearly 40% lower than the imported Welded Gate Valves of the same specification. There are no tariffs or middleman premiums. In terms of freight, common specifications such as DN125 have regular inventory, and the order can be shipped within 3 days. The valve body of the welded valve will also be packaged for rust prevention, and the interface condition will not be affected during long-distance transportation.

After-sales service

Huadu's after-sales service is also in line with the usage scenarios of welding valves: If there are uncertainties about the interface details during on-site welding, the technical team will issue welding operation guidelines; if non-human-induced sealing problems occur within the warranty period, the factory will directly arrange for replacement; for bulk purchases, corresponding material inspection reports can also be provided, facilitating project acceptance.

When choosing a welded gate valve, the key points are "good sealing and convenient operation". Huadu's Welded Gate Valves precisely hits these two points. Whether it's for project integration or pipe repair, it is a reliable choice.
