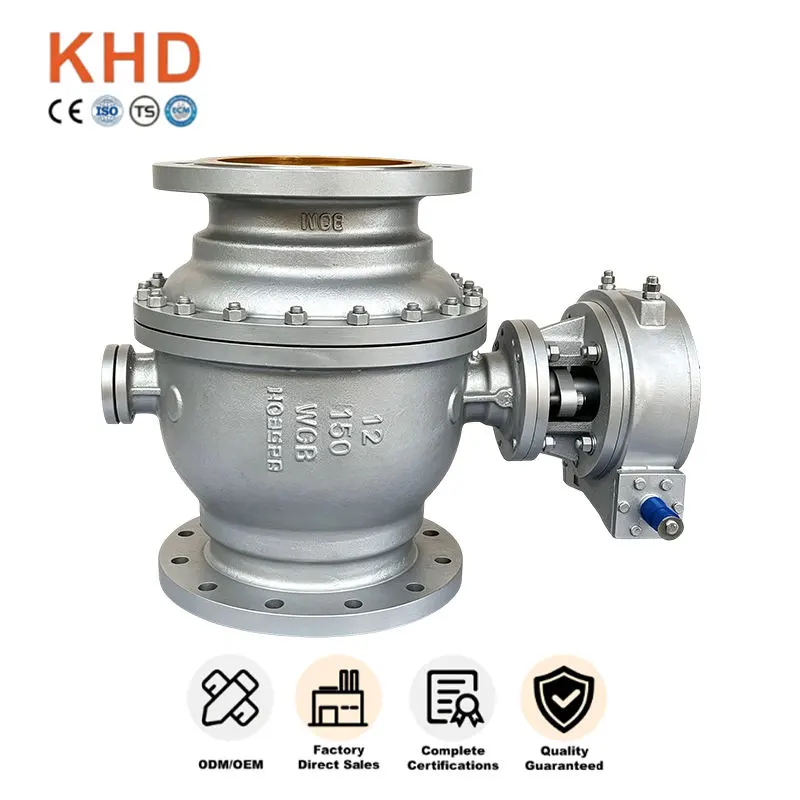

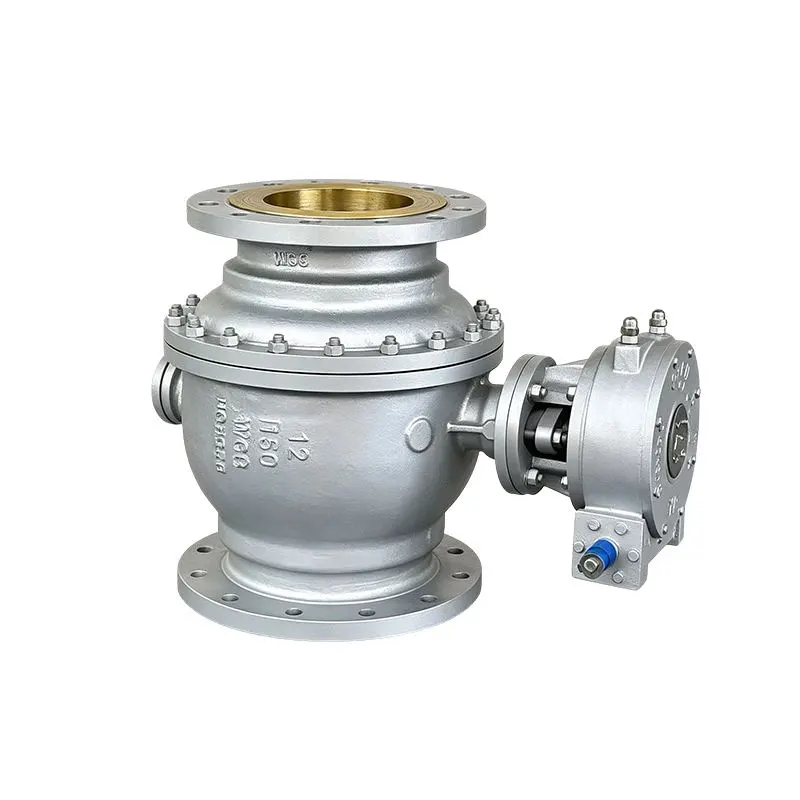

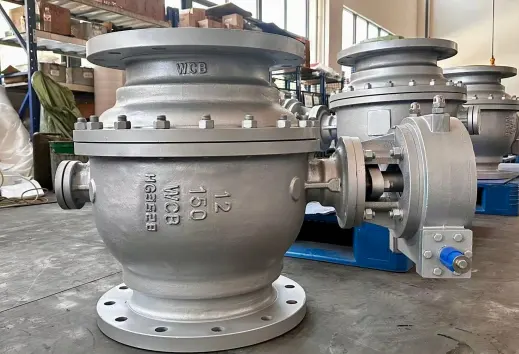

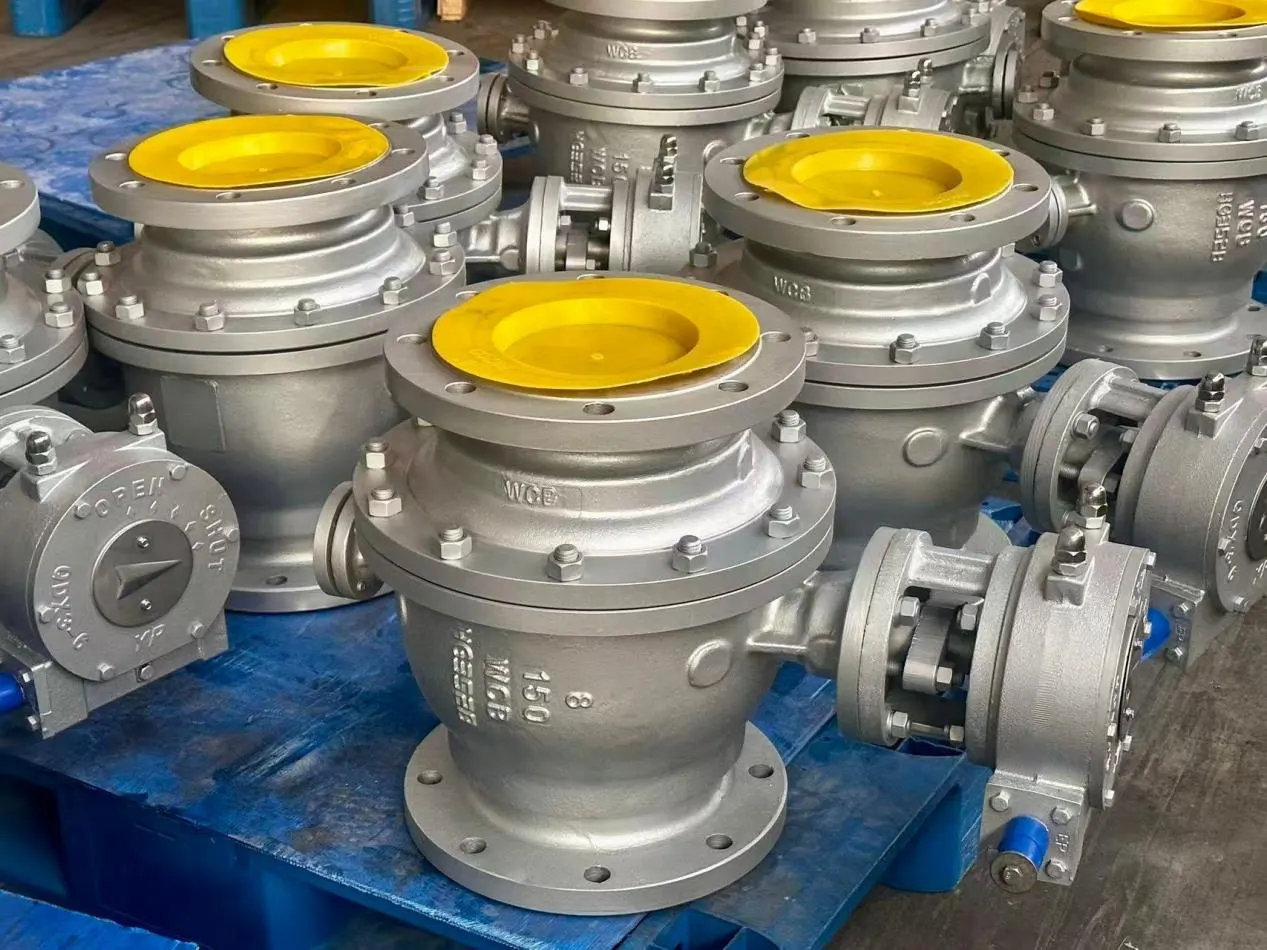

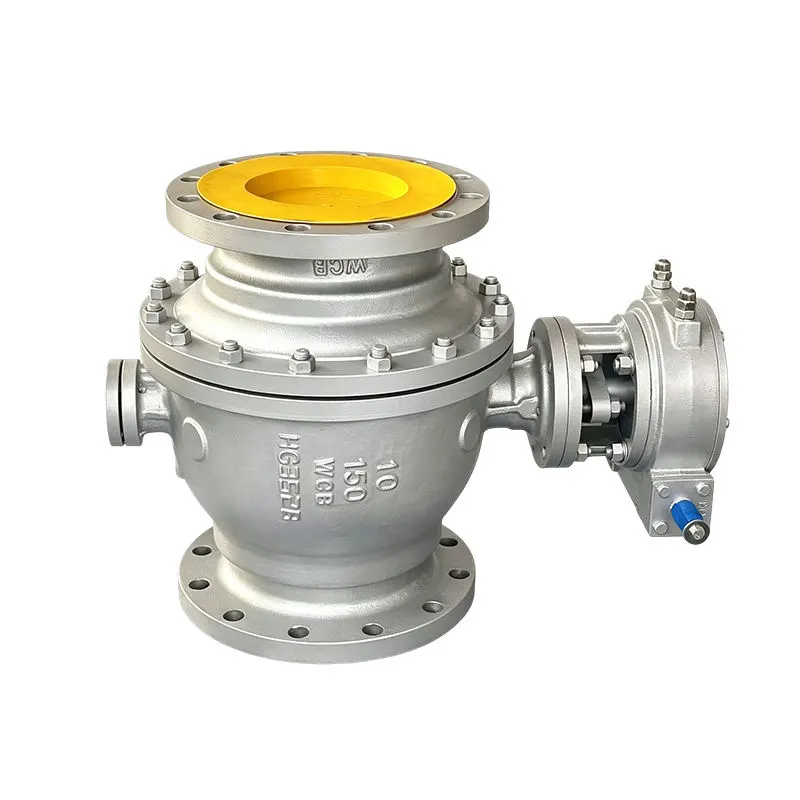

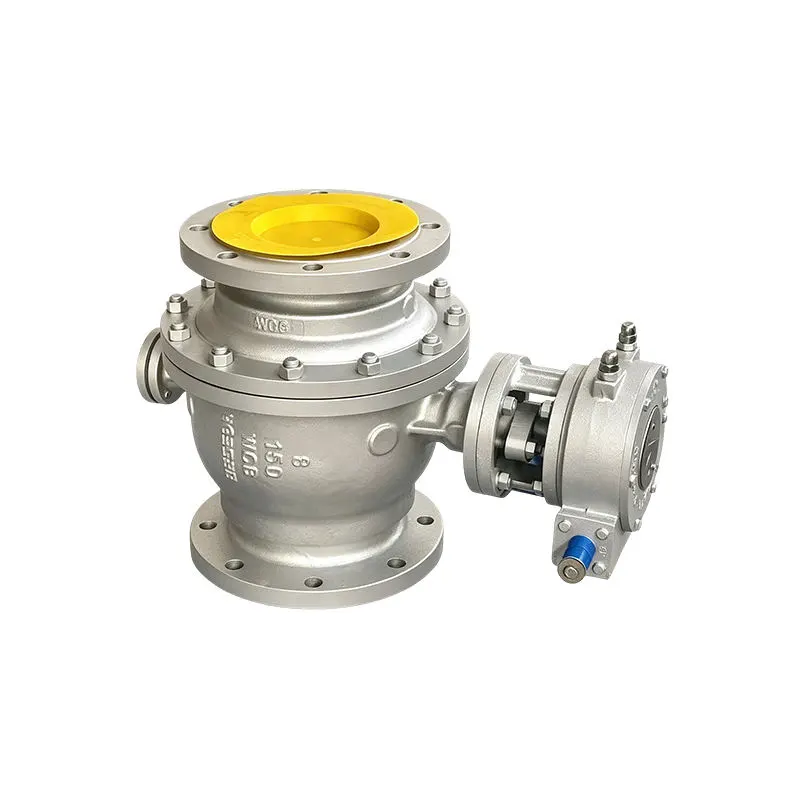

WCB Carbon Steel Fixed Ball Valve

The WCB Carbon Steel Fixed Ball Valve is a heavy duty industrial valve built for pipeline isolation and flow control, manufactured by Huadu Valve Group. It adopts trunnion fixed ball design and A216 WCB carbon steel material, well suited for high pressure critical pipeline working conditions.

This industrial valve performs reliably under continuous high pressure service and long cycle operation, widely selected for projects where sealing safety and long service life are core requirements.

Raw Material & Structural Advantages

Premium A216 WCB Carbon Steel Body

The WCB Carbon Steel Fixed Ball Valve is cast from A216 WCB carbon steel, bringing these core merits:

-High mechanical strength and excellent impact resistance

-Good temperature adaptability against pressure surge and water hammer

-Sufficient wall thickness for high pressure class service

-Rigid casting inspection to eliminate internal and surface defects

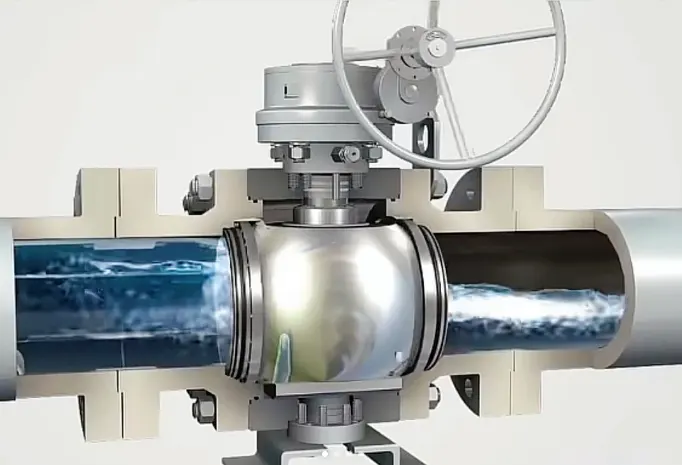

Trunnion Mounted Fixed Ball Structure

Different from ordinary floating ball valves, our trunnion fixed ball design transfers most pipeline pressure load to upper and lower support shafts. The ball remains locked in position, so valve seats only bear minimal contact force. It greatly reduces seat abrasion even with frequent open-close cycles under sustained high pressure. Stable bi-directional sealing prevents leakage regardless of pressure direction, improving system safety for critical process loops.

Optimized Sealing & Safety Construction

Spring loaded floating seat assembly is equipped for this WCB Carbon Steel Fixed Ball Valve. Built in springs compensate for minor wear after thousands of operations to sustain tight shut off performance. Anti blow out stem serves as standard safety feature against sudden pressure spikes. Multi layer graphite packing minimizes fugitive emissions around stem gaps. All sealing components are specially matched for high pressure, medium temperature working media instead of generic spare parts.

Key Attributes

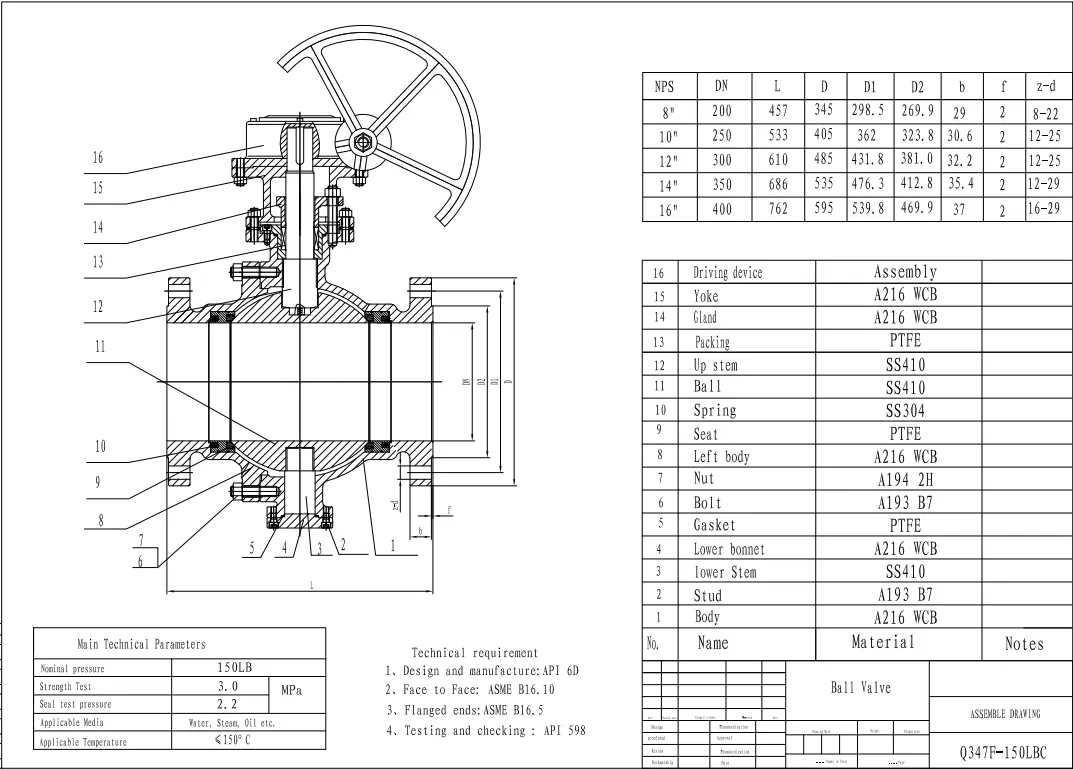

Technical Specifications

Standard Parameters

Size: DN50-DN1200

Pressure Rating: Class150-Class2500

Material: A216 WCB carbon steel

Structure: Trunnion mounted fixed ball valve

Temperature Range:-29℃ ~ 425℃

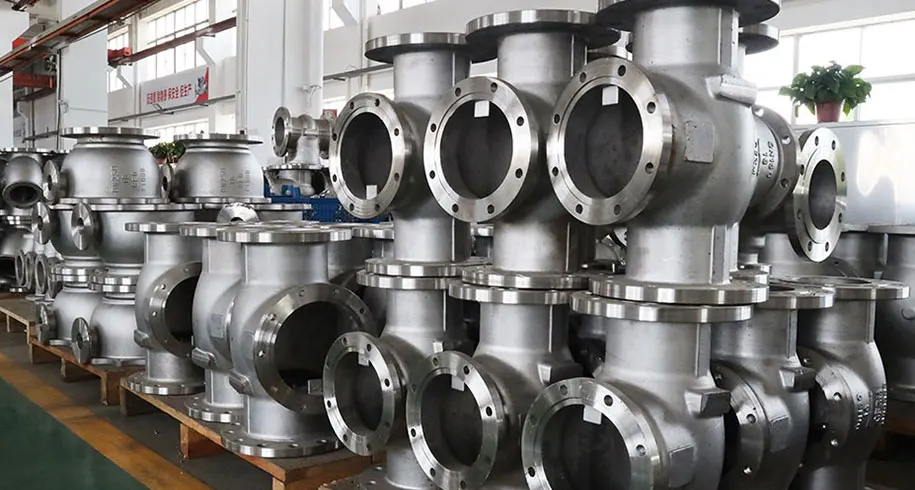

Manufacturing Process

The WCB Carbon Steel Fixed Ball Valve goes through:

- Qualified A216 WCB casting production

- Heat treatment for stable material property

- CNC precision machining for sealing surfaces

- Assembly with matched sealing and actuator components

Performance Features

- Low wear trunnion structure for frequent cycling service

- Reliable bi-directional tight shutoff

- Low seat failure rate under continuous high pipeline pressure

- Compatible with multiple actuator options: manual gear, pneumatic, electric

- Designed for full-open / full -close isolation service

Application Areas

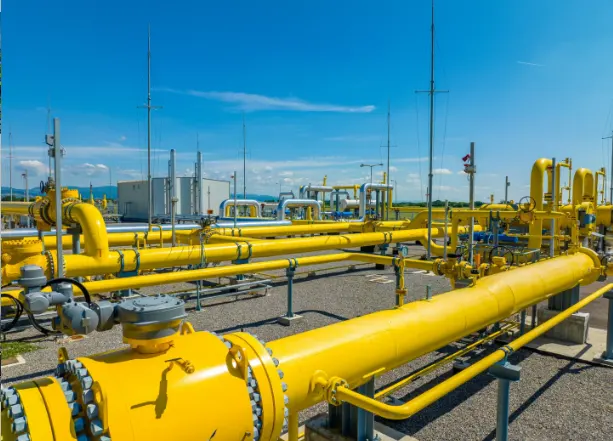

Oil & Gas Industry

The WCB Carbon Steel Fixed Ball Valve is widely applied in:

- Natural gas transmission main pipelines

- Oil refinery process lines

- Crude oil transfer facilities

- Gas gathering station piping systems

Petrochemical Industry

- High pressure petrochemical process loops

- Process unit main isolation pipelines

- Medium temperature non-corrosive & mild-corrosive fluid circuits

Power Industry

- Power plant main process piping

- Heavy duty industrial plant loop systems

General Industrial Projects

- New build EPC project pipeline packages

- Existing pipeline renovation & retrofit work

- Industrial sites with difficult maintenance access and high safety requirements

Quality Control & Project Procurement Support

As a certified valve manufacturer with ISO, CE and API certificates, every WCB Carbon Steel Fixed Ball Valve undergoes complete factory tests before shipment, including hydrostatic shell test, seat sealing test and dimensional inspection. Full piece testing is implemented for heavy duty large size valves without sampling inspection. Raw material verification, casting inspection, assembly supervision and finished valve testing run through the whole production workflow. Material test certificates and inspection reports can be provided for tender submission and site acceptance.

Flexible configuration options are available according to on-site working conditions, covering varied pressure grades, sealing material combinations and multiple operating modes. Flexible MOQ supports sample testing, small batch stock supply and large volume bulk project orders. Huadu Valve Group’s WCB fixed ball valves are exported globally and earn repeat orders from worldwide industrial clients.

How is the seat and stem sealing built for real world site durability?

We use spring loaded floating seat design for this fixed ball valve. Internal springs keep the seat pressed against ball surface. When minor wear happens after thousands of operations, springs can compensate for small gaps, maintaining good sealing performance over time. Anti blow out stem structure is built in as standard safety feature. Under unexpected pipeline pressure spikes, it prevents the stem from blowing out. Multi layer graphite packing is fitted for stem sealing, to stop tiny fugitive emissions around stem gap. These sealing parts are not generic cheap spare parts; they are selected to match high pressure and medium temperature working conditions.
