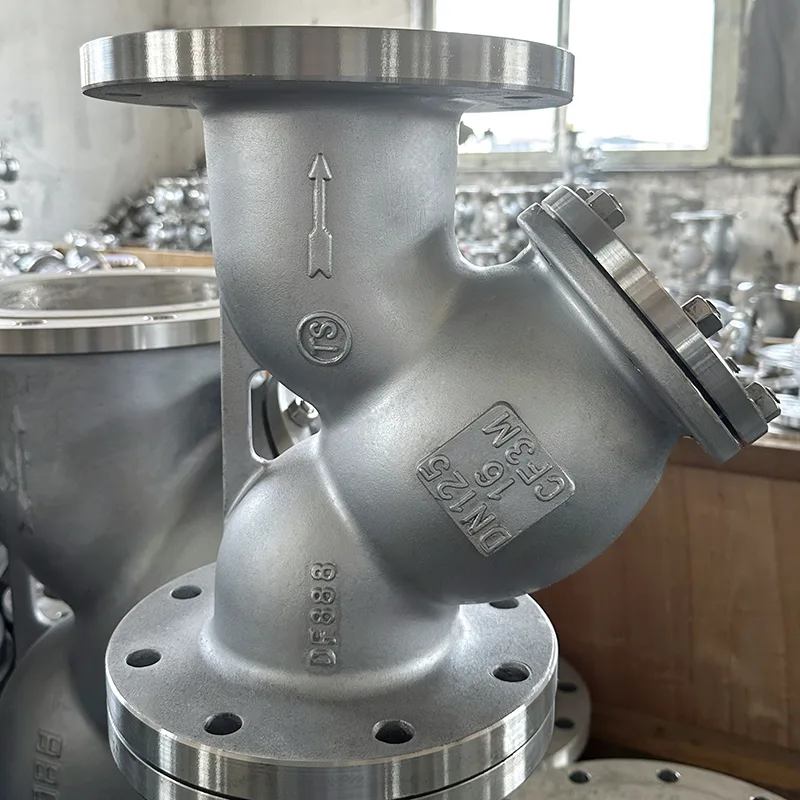

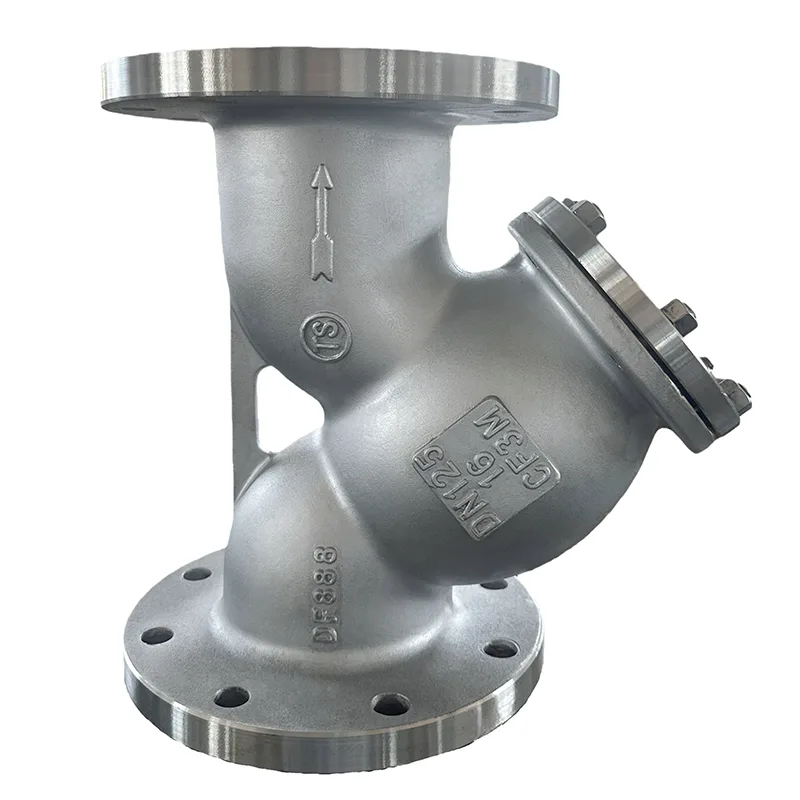

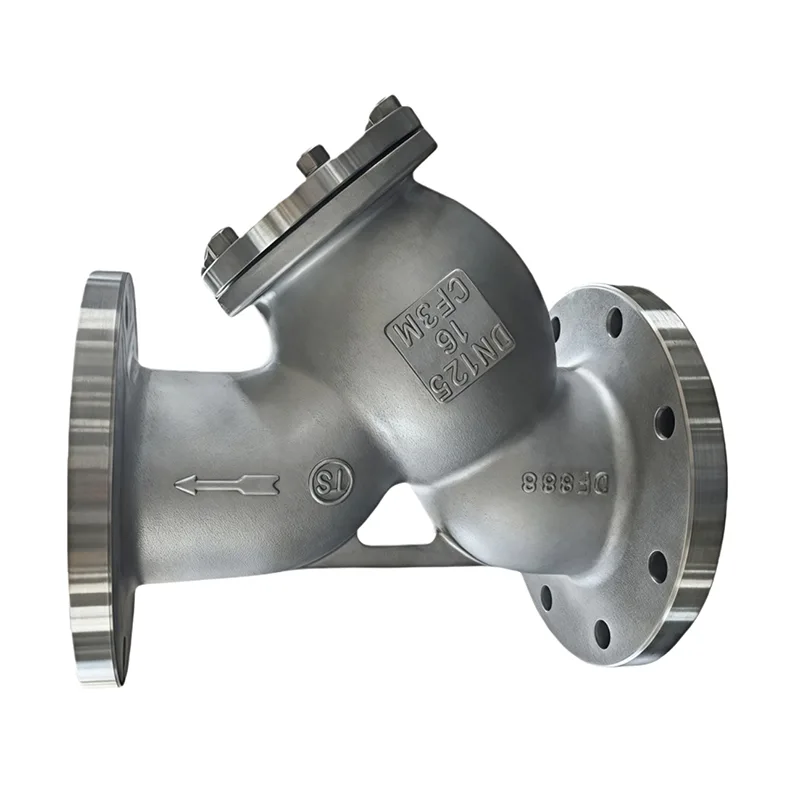

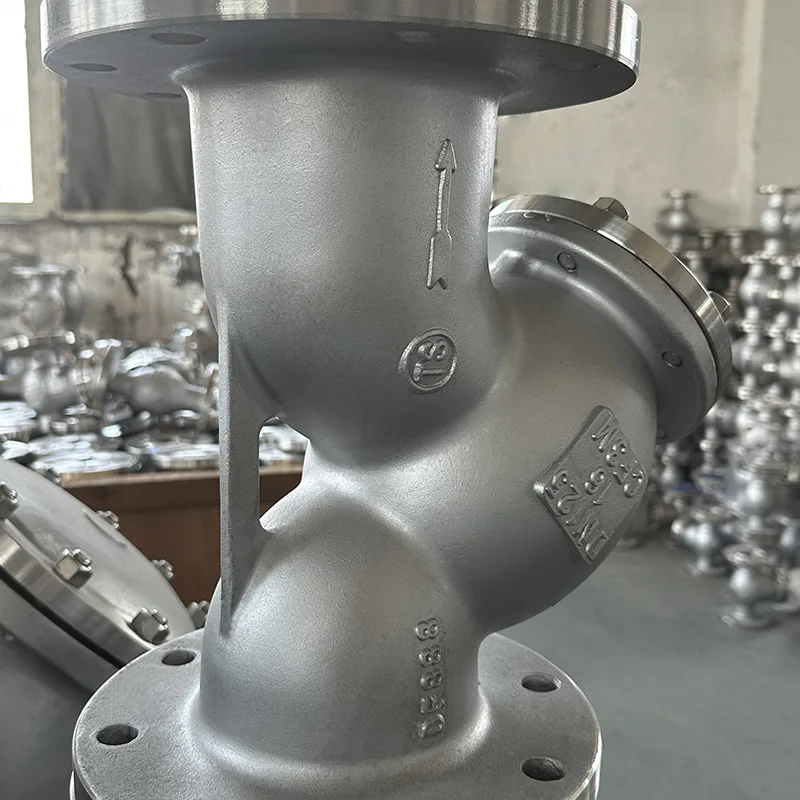

Stainless Steel GB Standard Y-type Filter

Huadu Valve Group is a professional China valve manufacturer specializing in industrial valves and pipeline purification accessories. This Stainless Steel GB Standard Y-type Filter is designed to intercept solid impurities in industrial pipelines and protect downstream equipment such as pumps, valves, meters, and heat exchangers.

Manufactured with high-quality 316 stainless steel and GB standard flange connections, the product offers excellent corrosion resistance, stable sealing performance, and convenient maintenance for industrial and municipal pipeline systems.

What Is Stainless Steel GB Standard Y-type Filter?

It is a pipeline filtration device installed in fluid transportation systems to remove impurities such as:

Sand particles

Welding slag

Rust debris

Metal particles

Sediment impurities

The Y-shaped structure allows smooth medium flow while effectively filtering contaminants through the internal filter screen.

It is widely used in:

Water treatment systems

Chemical pipelines

Food & pharmaceutical plants

Municipal engineering

Industrial circulation systems

The Stainless Steel GB Standard Y-type Filter helps reduce equipment wear, minimize downtime, and improve overall pipeline operation stability.

Core Advantages

316 Stainless Steel Material

The valve body uses national standard 316 stainless steel material with strong resistance to:

Corrosion

Rust

Pressure fluctuation

Weak acid and alkali media

Each batch of raw material undergoes composition inspection before production.

Easy Maintenance Design

Compared with welded filter structures, the detachable screen design is more convenient.

Advantages include:

Quick impurity cleaning

Reduced maintenance time

No need to remove the whole valve

Lower labor cost during operation

The bottom drain port allows operators to clean the screen efficiently.

Stable Filtration Performance

The filter screen adopts integrated stamping technology with:

Uniform mesh distribution

Strong pressure resistance

Stable filtration efficiency

It effectively protects downstream precision equipment from impurity damage.

Why Choose Huadu?

Real 316 Stainless Steel Material

Unlike some low-cost suppliers using non-standard recycled stainless steel, Huadu provides genuine national standard materials with inspection reports.

Lower Flow Resistance

The optimized Y-type flow channel design ensures smoother medium flow and lower pressure loss.

Faster Delivery

Common specifications such as DN50-DN125 are available in stock and can usually be shipped within 3 days.

Competitive Factory Direct Price

As a China direct manufacturer, Huadu reduces intermediate costs and provides more cost-effective pricing than imported products.

Strong Customization Capability

The Stainless Steel GB Standard Y-type Filter supports:

Customized mesh accuracy

Special flange standards

Customized pressure ratings

OEM logo services

Key attributes

FAQ

Can a Y-strainer be installed vertically?

Yes, a Y-strainer can be installed vertically, but it depends on the flow direction and operating conditions.

For the Stainless Steel GB Standard Y-type Filter, the recommended installation practice is:

Preferred position: horizontal pipeline (filter chamber facing downward)

Vertical installation: acceptable when flow is downward

Avoid: upward vertical flow (impurities may fall back into the pipeline)

Key installation considerations

Install with the filter chamber pointing downward for proper debris collection

Ensure sufficient space below for easy cleaning and maintenance

Follow GB flange alignment to avoid stress on pipeline connections

Confirm flow direction arrow on valve body before installation

In industrial practice, the Stainless Steel GB Standard Y-type Filter is most stable in horizontal installation, especially in continuous operation systems.

How do I clean a Y-strainer?

Cleaning a Y-strainer is simple and designed for quick maintenance, especially in the Stainless Steel GB Standard Y-type Filter.

Step-by-step cleaning process

Step 1: Shut down the system

Close upstream and downstream valves

Release internal pressure safely

Step 2: Open the drain plug

Use the bottom drain port to release trapped impurities

Step 3: Remove the filter screen

Unscrew the cover and take out the mesh basket

Step 4: Clean the filter element

Rinse with clean water or suitable solvent

Remove sand, rust, and solid debris

Step 5: Reinstall and tighten

Reassemble the filter screen

Ensure sealing gasket is properly positioned

Maintenance advantage

The Stainless Steel GB Standard Y-type Filter uses a detachable design, so cleaning does NOT require removing the entire pipeline—saving time and reducing downtime.

What are the primary applications?

Y-strainers are widely used in industrial fluid systems to protect downstream equipment from contamination.

1. Water Treatment Systems

Municipal water supply networks

Wastewater treatment plants

Cooling water circulation systems

2. Chemical & Petrochemical Industry

Acid and alkali pipelines

Process fluid filtration systems

Refinery transport lines

3. Food & Pharmaceutical Industry

Hygienic liquid transfer systems

Process water filtration

Beverage production lines

4. Power & Industrial Plants

Boiler feedwater systems

Cooling circulation pipelines

Equipment protection for pumps and valves

5. General Industrial Pipeline Protection

The Stainless Steel GB Standard Y-type Filter is commonly used to:

Protect pumps from particle damage

Extend valve service life

Reduce pipeline blockage risk

Improve system stability
