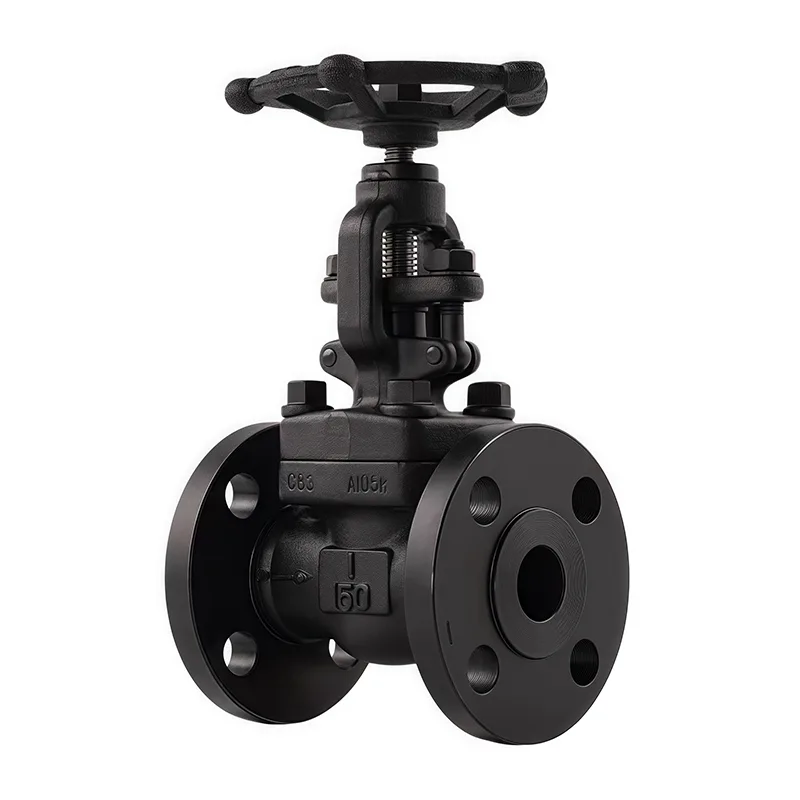

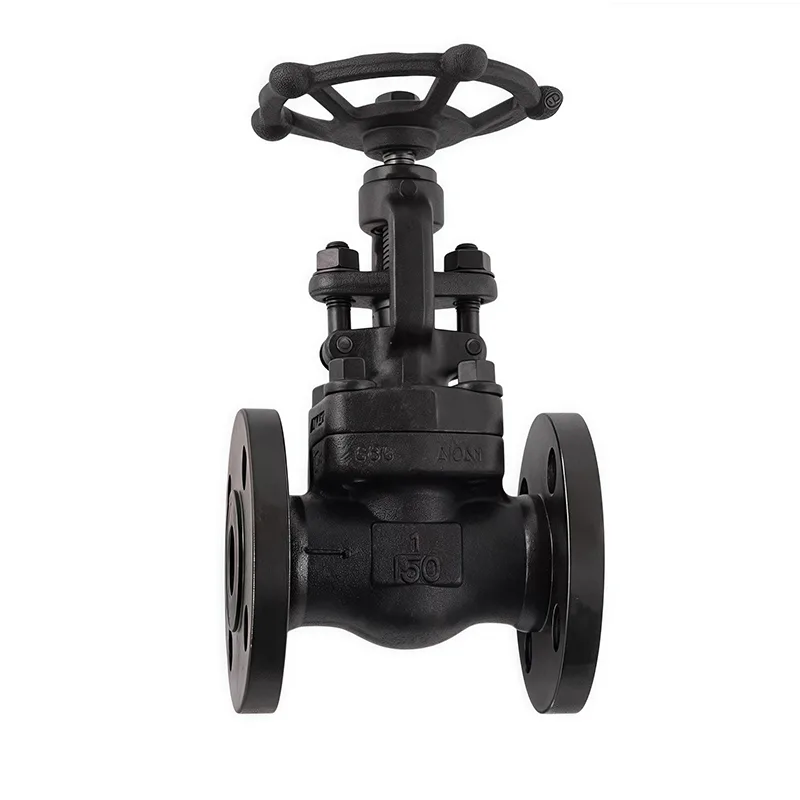

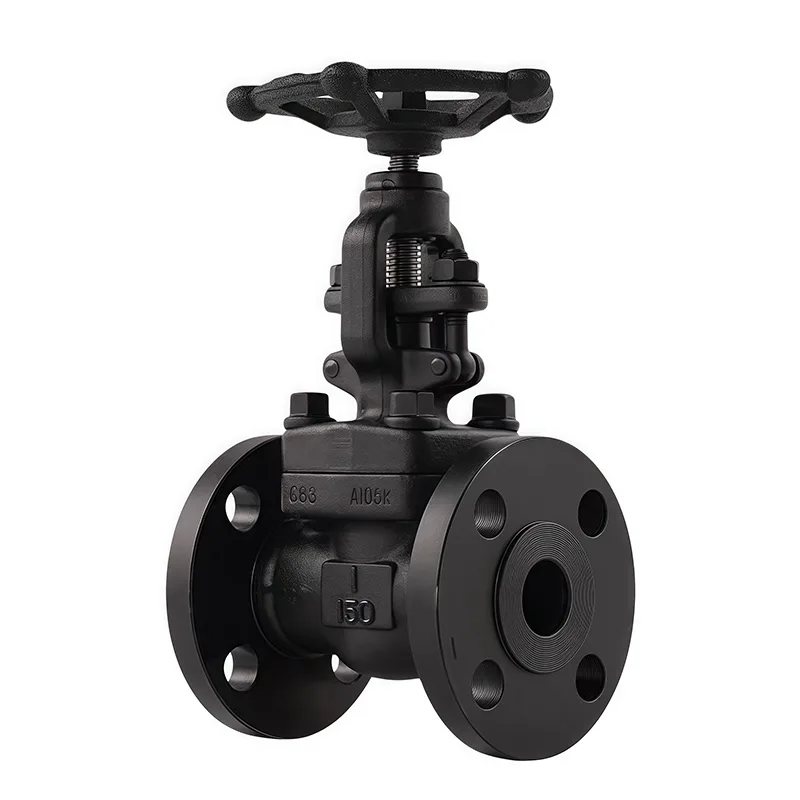

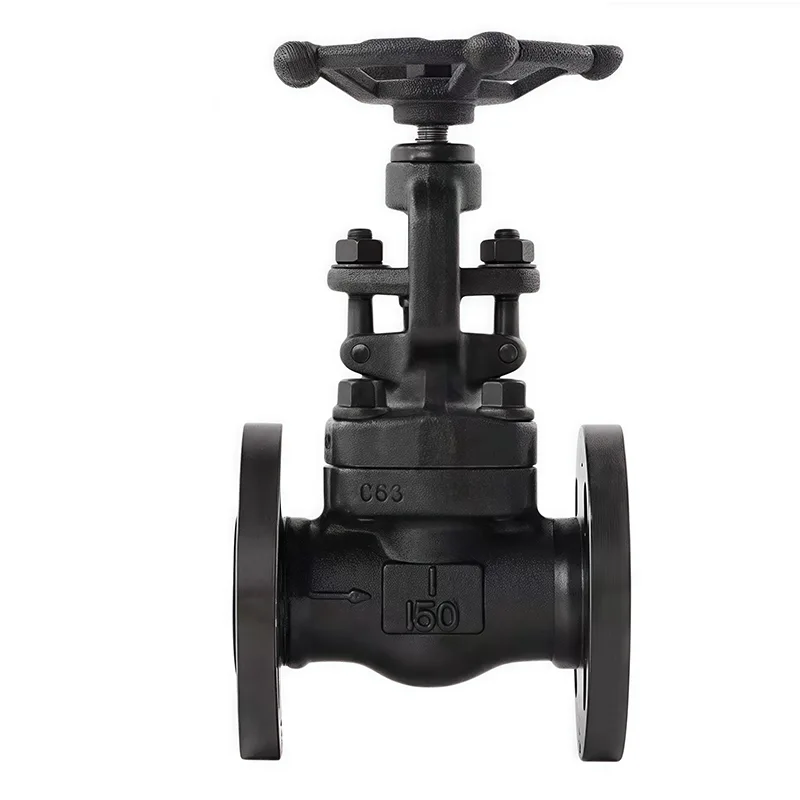

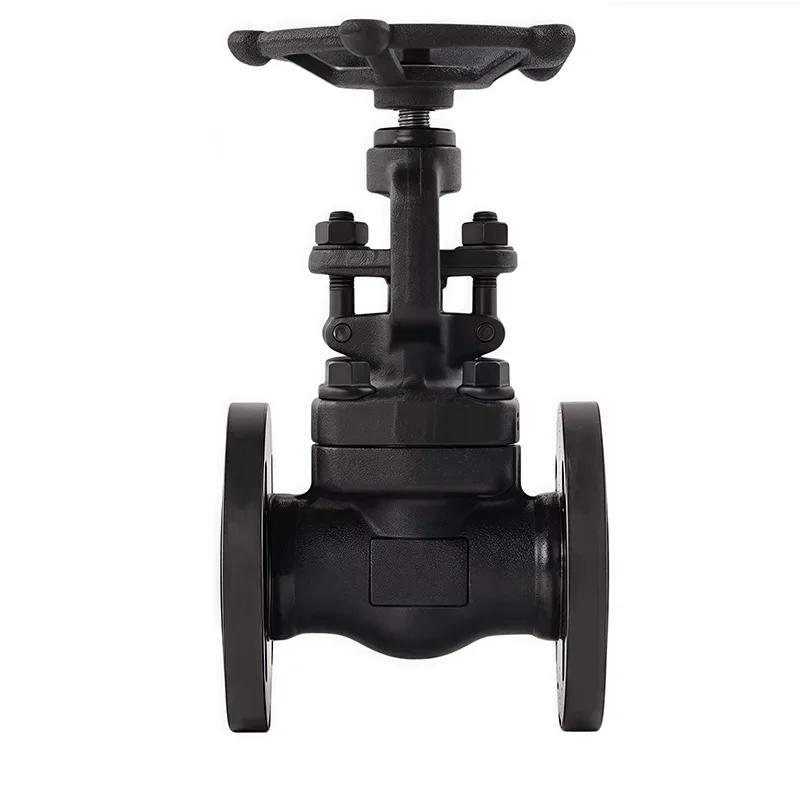

Forged Flanged Globe Valve

Huadu Valve is a leading Chinese manufacturer of high-quality Forged Flanged Globe Valve, the valve disc and valve seat adopt a hard seal structure design, matched with precision-machined conical sealing pairs. The sealing surfaces are fully processed by CNC grinding technology, with a fitting accuracy up to micron level. The finished product leakage rate is far lower than the requirements of national standards, which can achieve zero-leakage shut-off of the medium. It not only eliminates invalid loss of fluid in the pipeline, but also fundamentally avoids environmental pollution and safety hazards caused by medium leakage, achieving the ultimate control.

Three Core Advantages

Forged Steel Body, Building a Solid Safety Foundation for High-Pressure Conditions

The valve body is integrally forged with A105 forged steel, which fundamentally eliminates inherent defects common in cast valve bodies such as blowholes, sand holes and porosity through the forging process. With a denser metal structure, it has far better impact and fatigue resistance than cast valve bodies of the same specification. Even under extreme working conditions of continuous high pressure and frequent opening and closing, it can maintain structural stability without deformation and cracking. It is perfectly suitable for pipeline control of flammable, explosive, toxic and harmful media, with safety engraved into the product foundation.

Humanized Design

Full-dimensional optimized design is carried out based on the actual needs of on-site operation and maintenance: the non-slip textured handwheel realizes uniform and stable torque transmission, ensuring light and non-jamming valve opening and closing; the rising stem structure supports online adjustment of the packing seal, which can quickly solve the leakage problem without disassembling the whole valve body; a special maintenance port is reserved on the valve body, which can quickly complete the replacement of wearing parts such as the valve disc after wear, greatly shortening the downtime for maintenance and reducing the life cycle operation and maintenance cost.

Standardized Technical Design, Adapted to Mainstream Pipeline Requirements

Key parameters are clearly cast on the surface of the valve body. The whole series adopts standardized design, which can be seamlessly connected with most mainstream pipeline systems in China, and can be installed and used without additional modification.

Material Optimization: A105 forged steel valve body main body, with hard alloy surfacing on the sealing surface, which has excellent wear resistance and corrosion resistance, and can adapt to complex and harsh working conditions;

Structure Upgrade: The combined design of angle flow path and rising stem is adopted, which effectively reduces fluid resistance, has no rotational wear during the whole opening and closing process, and doubles the service life of the valve stem compared with the traditional swing-type structure.

Full Working Condition Adaptation, Universal for Multiple Industries

With stable performance and strong adaptability, this Forged Flanged Globe Valve can cover the fluid control needs of multiple industries:

Petrochemical Industry: It can be used as an emergency shut-off valve for crude oil and refined oil transmission pipelines, and a medium isolation valve for high-pressure process pipelines. Its impact and corrosion resistance perfectly adapt to complex working conditions;

Municipal Gas System: Used for sectional shut-off control of urban gas pipeline network, with zero-leakage seal design, to avoid the safety hazards of gas leakage from the source and protect people's livelihood safety;

Industrial Steam/Thermal Pipeline: Excellent high temperature resistance, which can ensure the long-term stable operation of the pipeline under high temperature working conditions without performance attenuation;

Food and Pharmaceutical Clean Pipeline: It can be used for shut-off and isolation of liquid medicine and food-grade fluid, without medium retention and secondary pollution risk, meeting the use requirements of clean pipelines;

Mining and Metallurgy System: It can be used as an emergency shut-off valve for tailings transmission pipelines and a control valve for cooling water pipelines of smelters, with wear-resistant structure design, perfectly adapting to the use scenarios of high-impurity media.

Local Intelligent Manufacturing, Full of Differentiated Advantages

Compared with ordinary cast globe valves, non-standard forged products on the market, and imported valves of the same specification, the core advantages of Huadu's forged globe valve are clear at a glance:

More Reliable Technology: The integrally forged valve body has no inherent casting defects. Its structural stability and safety under high pressure working conditions are far better than cast products, and the whole process quality control is traceable;

More Outstanding Cost Performance: The direct supply mode of local factory, no middleman markup and no import tariff, the price of products of the same specification is nearly 30% lower than that of imported brands, so that projects with limited budget can also use compliant high-pressure valves;

Stronger Adaptability: National standard flange connection + full series standardized parameters, which can directly replace imported brand valves of the same specification without any modification to the existing pipeline, saving time and effort;

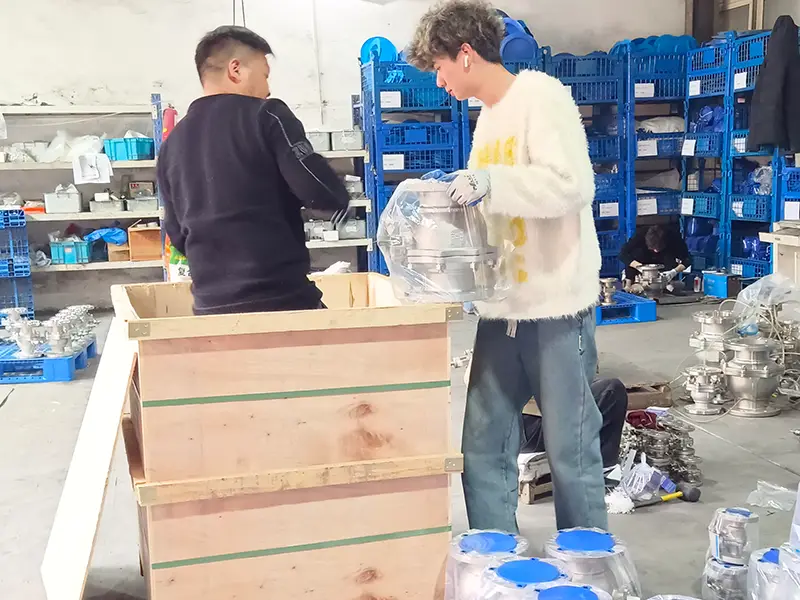

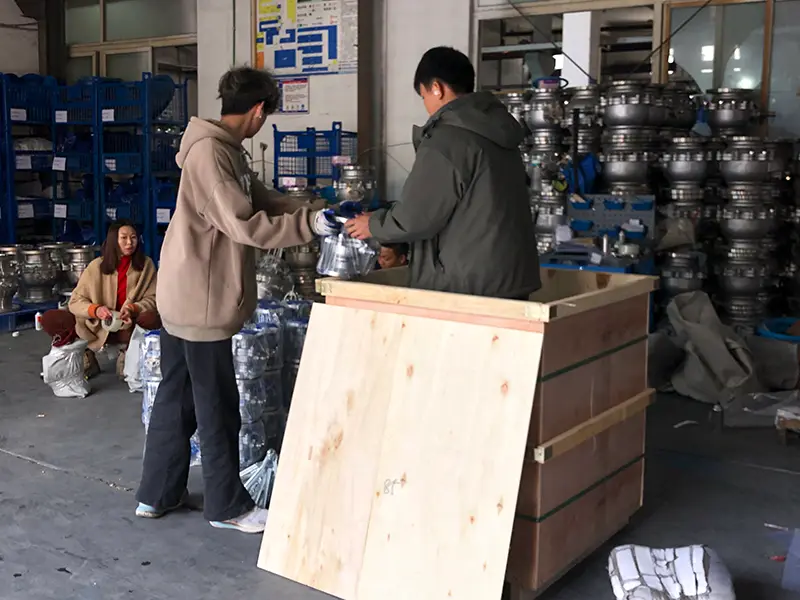

More Efficient Delivery: The full series of conventional calibers DN15-DN50 are in regular stock, and can be delivered quickly after placing an order, perfectly matching the tight construction period requirements of the project; the surface of the valve body is blackened for rust prevention, and the outer layer is packed with thickened cartons and custom wooden frames, which will not damage the flange sealing surface even during long-distance transportation.

Full Cycle After-Sales Service, Meeting On-Site Use Needs

Huadu has built a full-process after-sales service system that meets on-site needs, solving the worries of the whole cycle of procurement, installation and use:

Installation Stage: For installation questions such as flange docking and packing adjustment, the technical team can provide clearly marked installation drawings, matched with one-on-one telephone guidance to ensure correct installation;

Warranty Period: During the warranty period, if there are non-human-induced quality problems such as seal leakage and valve stem jamming, the factory will directly arrange free replacement of parts without prevarication and delay;

Customized Service: For bulk purchase customers, we can provide exclusive selection recommendations of material and pressure grade according to the actual working conditions of the project, and customize one-to-one pipeline control solutions.

Choosing a globe valve is never about choosing a simple pipeline accessory, but choosing a long-term safety guarantee.

Huadu Forged Flanged Globe Valve, with the toughness of forged steel, precise technology and considerate service, accurately matches every core demand under high pressure working conditions. Whether it is for new project supporting or old pipeline upgrading and transformation, it is the best choice balancing safety, performance and cost-effectiveness. With local Chinese intelligent manufacturing, it protects every kilometer of safety of industrial pipelines.
