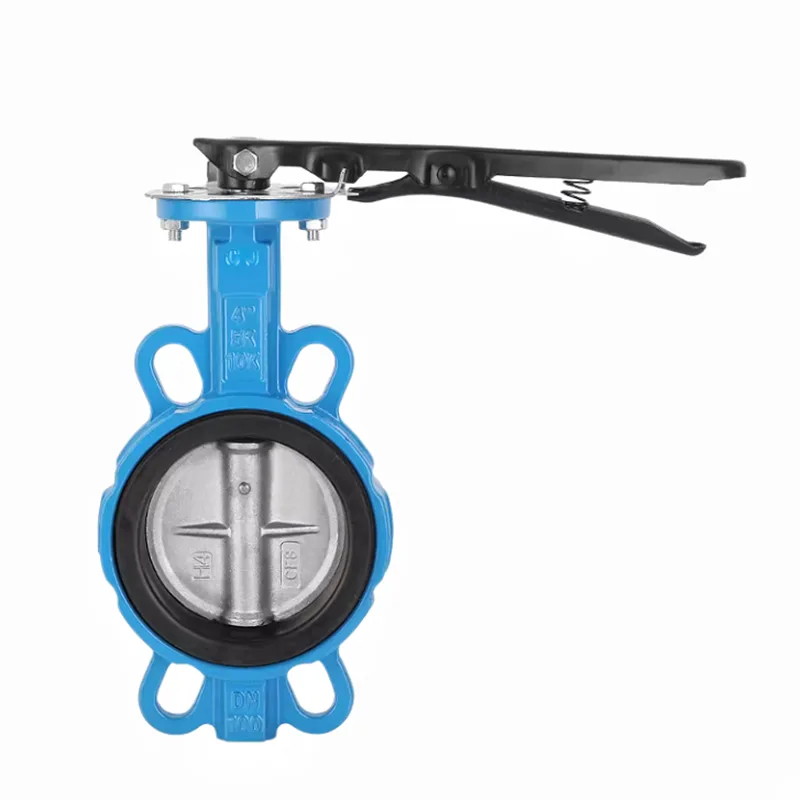

Manual Butterfly Valve

Finding a Manual Butterfly Valve with complete specifications, stable quality, and fast delivery is a common challenge in engineering procurement. With years of manufacturing experience, Huadu provides a one-stop solution with reliable performance, full-size coverage, and strong supply capability.

Product Features

Fast Operation

Low torque design reduces operating force by about 30%

Quick open/close with simple handle operation

No complex tools required, improving on-site efficiency

Manual Butterfly Valve is suitable for frequent switching pipeline systems

Compact & Lightweight

Wafer structure saves 30–50% installation space

Lightweight design reduces transportation and labor costs

Easy installation without complex flange alignment

Ideal for projects with limited installation space

Versatile Applications

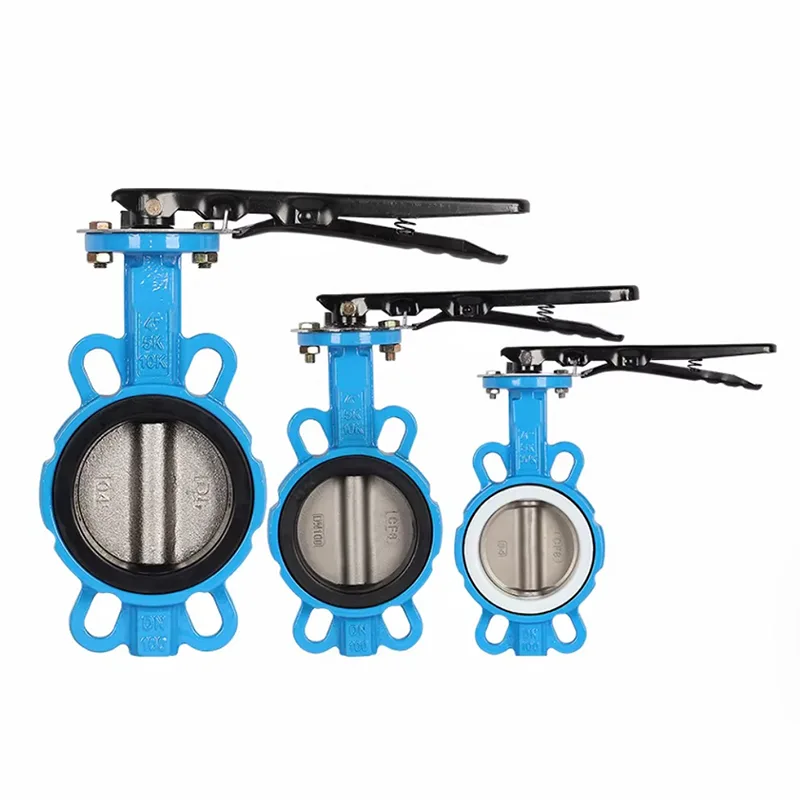

Size range: DN40–DN1200 for small to large pipelines

Pressure: PN10 / PN16 (customizable available)

Temperature range: -20°C to 120°C

Suitable for:

Water supply & drainage

Sewage systems

HVAC pipelines

General industrial oil media

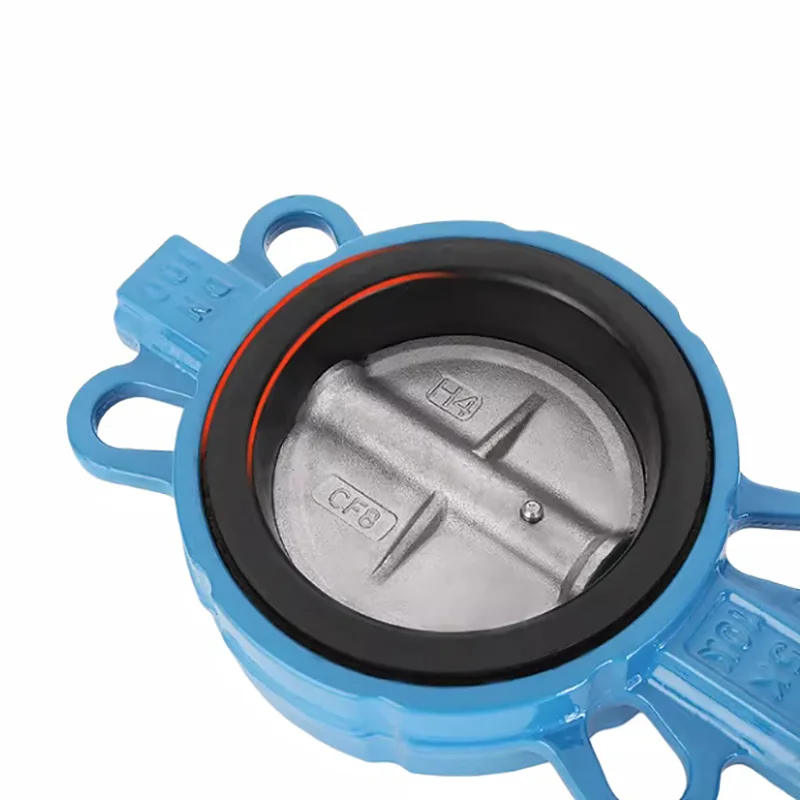

Optional soft seal (zero leakage) or hard seal (high temperature resistance)

Low Cost & High Value

40–50% lower cost than same-size gate valves

Factory direct supply—no middlemen markup

Significant savings for large-diameter project procurement

Long service life (5+ years) reduces replacement costs

Reliable Quality Assurance

Manufactured according to JB/T8527 standard

100% strength and sealing tests before delivery

Full QC process from raw materials to finished products

Stable performance with minimal leakage or failure risk

Proven Project Performance

Manual Butterfly Valve is Widely used in municipal water and heating projects

Bulk orders (100+ units) successfully applied in real projects

Verified no leakage or jamming after installation

Strong customer referrals and repeat purchases

Fast Delivery & One-Stop Supply

3,000+ products in stock

Common sizes (DN50–DN200) shipped within 48 hours

Custom large sizes delivered 3–5 days faster than competitors

Emergency orders supported to avoid project delays

How do I know if the manual butterfly valve is open or closed?

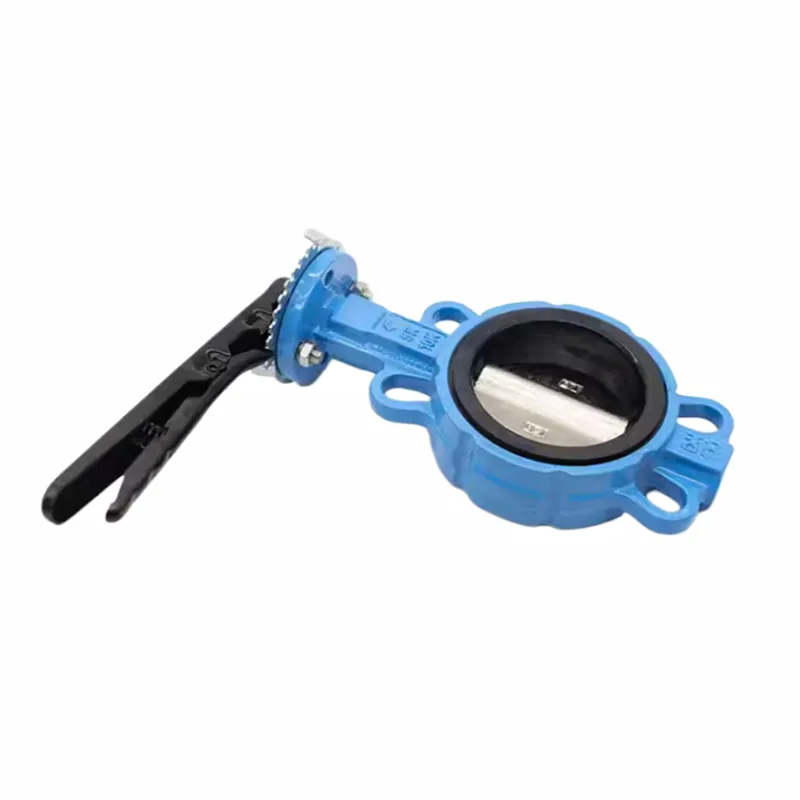

Handle Position:

The easiest way to identify the status of a manual butterfly valve is by checking the handle direction. When the handle is parallel to the pipeline, the valve is fully open; when it is perpendicular, the valve is fully closed.

Indicator Plate:

Many valves are equipped with an indicator plate marked from 0° to 90°. A reading of 0° means the valve is closed, while 90° indicates it is fully open, allowing quick visual confirmation.

Stem Position:

The manual butterfly valve stem rotates together with the internal disc. When the stem direction aligns with the flow, the valve is open; when it is across the flow direction, the valve is closed.

Wafer Type:

For wafer type valves installed between flanges, internal parts are not visible, so the position is usually judged by the handle or the indicator plate on the top.

Lug Type:

Lug type valves typically have clearer mounting structures and markings, making it easier to determine the open or closed status through the handle position or indicator display.
