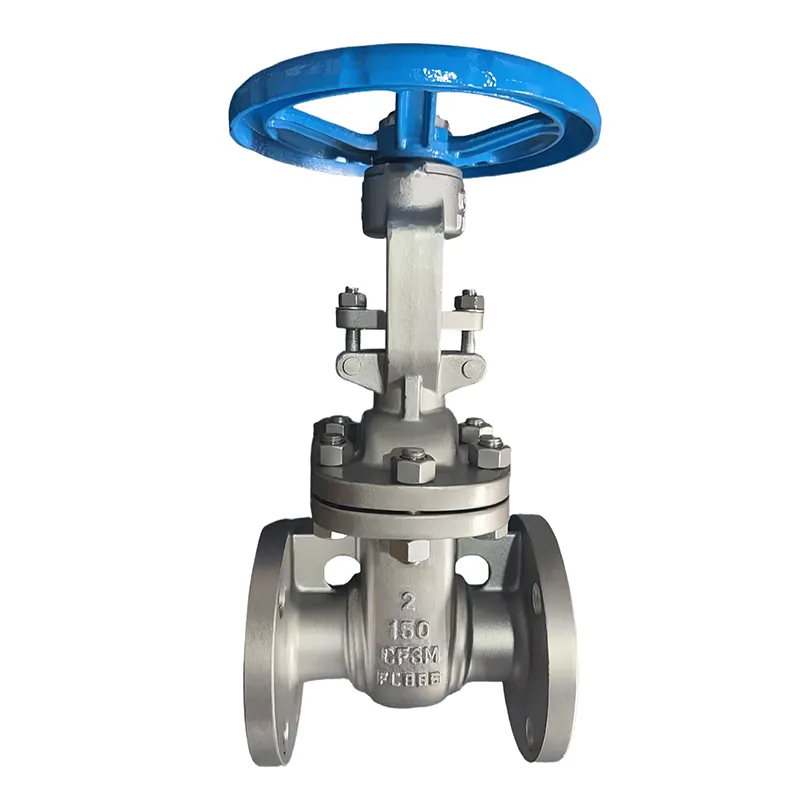

Gate Valve With Handwheel

We are a professional valve maker holding ISO, API and CE certifications. We own advanced production equipment and a full set of quality control systems. We also accept OEM and ODM orders, with flexible minimum order quantities. Our reliable products are exported globally and win wide recognition from clients.

What is a Gate Valve With Handwheel, and how does it work?

Handwheel gate valves are traditional manual shut-off valves. Turning the handwheel drives the wedge gate up and down, to fully open or block the flow inside pipelines. Thanks to its straight internal passage, the valve barely hinders fluid flow and lets medium circulate smoothly.Unlike ball valves, gate valves are designed purely for full open or full closed status, not for flow adjustment. It is one of the most widely adopted valves for industrial main pipeline systems.

Key Attributes

What materials do you offer, and what are their differences?

We prepare two common material options for handwheel gate valves to adapt to various working scenarios.

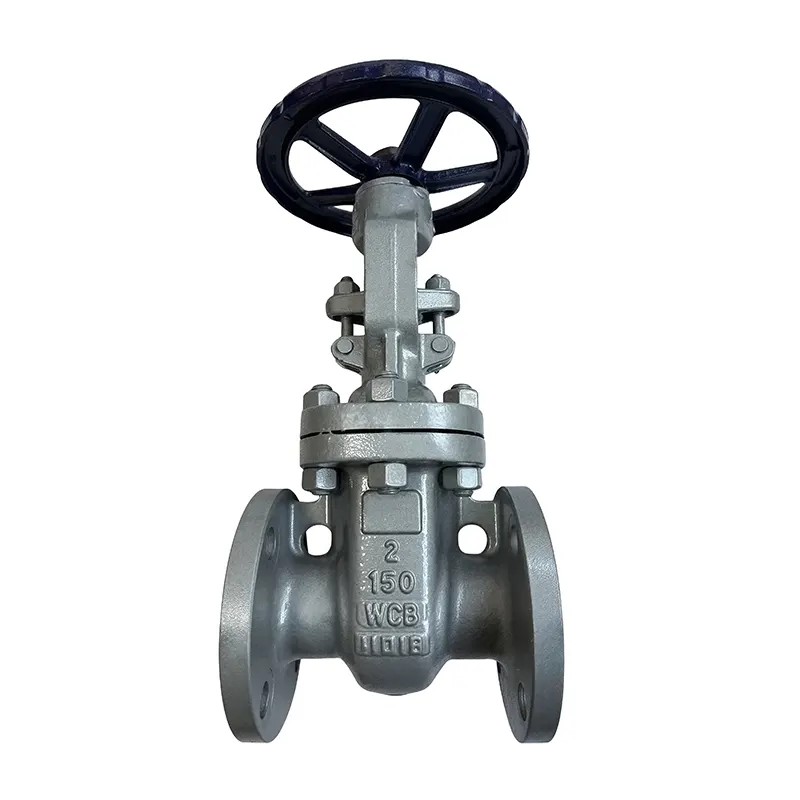

WCB carbon steel is sturdy and economical, and it can withstand high pressure well. It suits common working media such as water, steam, fuel oil and inert gas, so plenty of customers choose this material for heating pipes, urban water supply pipelines and conventional piping systems in power stations.

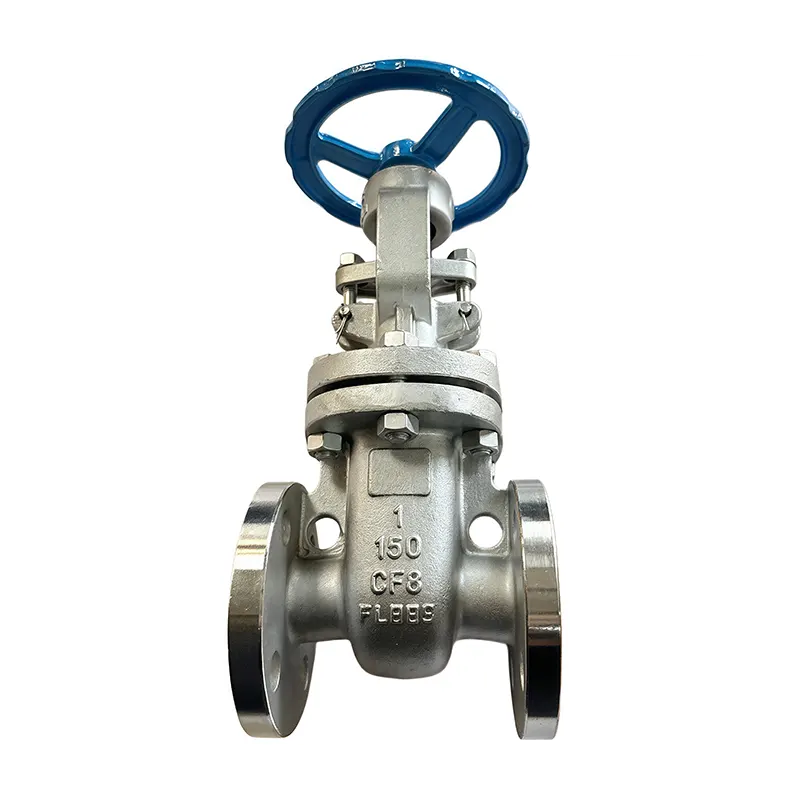

CF8 Stainless Steel (304) features outstanding anti-rust properties, and it can withstand mild acid and alkali erosion.It keeps stable performance in damp and lightly corrosive surroundings, so it is widely applied in water treatment, environmental protection projects and ordinary chemical pipelines.

What pressure classes and sizes are available?

Our handwheel gate valves cover complete industrial specifications: ANSI 150LB and 300LB pressure grades, with full caliber range from small DN15 to large DN300 and above. All sizes strictly comply with API and ASME standards. Each valve undergoes shell pressure test and seat tightness test to ensure stable performance under continuous medium and high-pressure working conditions.

Is the Gate Valve With Handwheel bidirectional sealed?

ASure enough. Our wedge gate valve adopts a mature wedge self-sealing structure with reliable two-way sealing performance. No matter the medium flows forward or backward, the valve will remain leak-free after full closure. The sealing faces fit closely, which guarantees safe and stable pipeline operation.

What are the advantages of manual handwheel operation compared to electric or pneumatic types?

Manual handwheel gate valves have extremely high field practicability. They require no electricity, no air compressor equipment and no complicated control system. The structure is simple, failure rate is extremely low, and on-site operation is intuitive and accurate. It is not affected by power failure or equipment failure, which makes it the safest choice for backup cut-off, main pipeline switch and outdoor unattended pipeline projects. Meanwhile, daily maintenance is minimal, saving long-term operating costs.

What working conditions and industries are these valves suitable for?

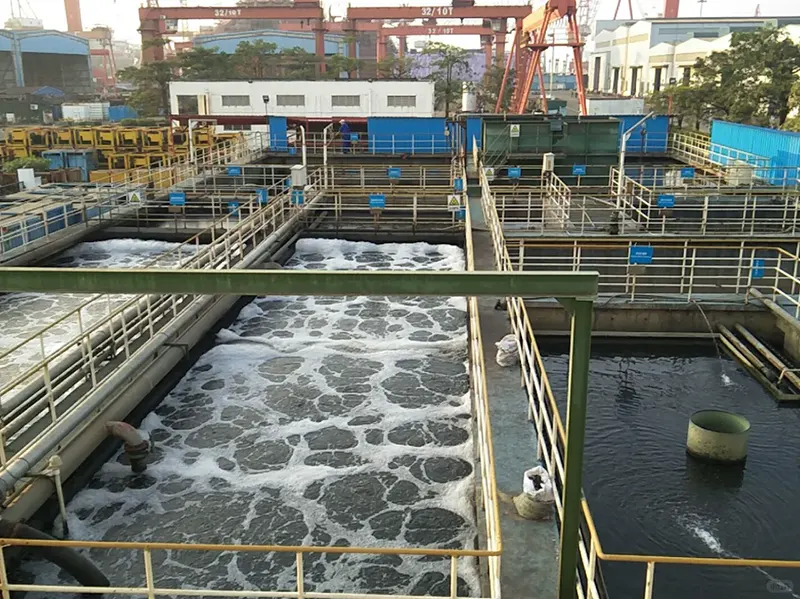

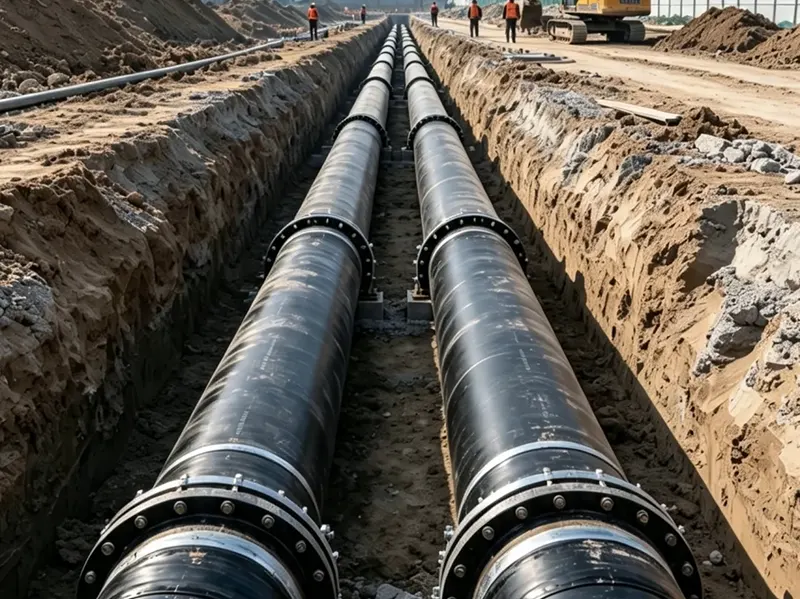

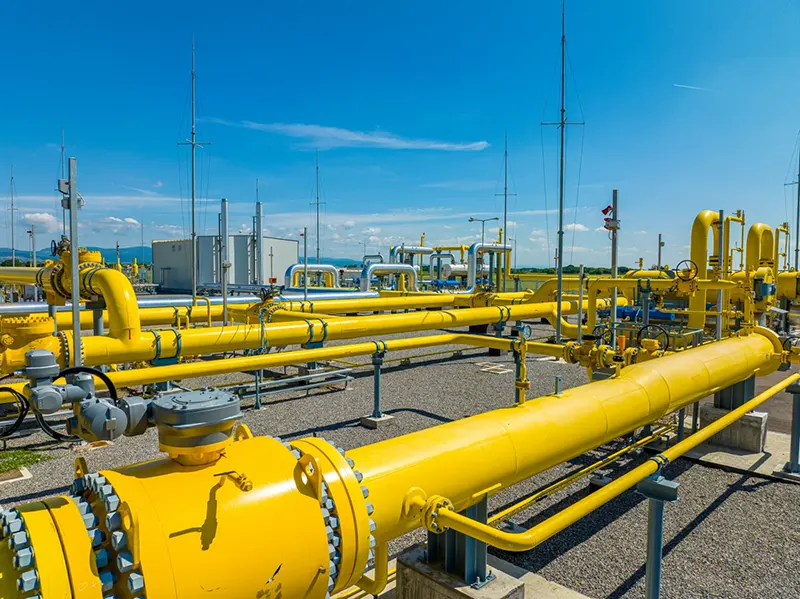

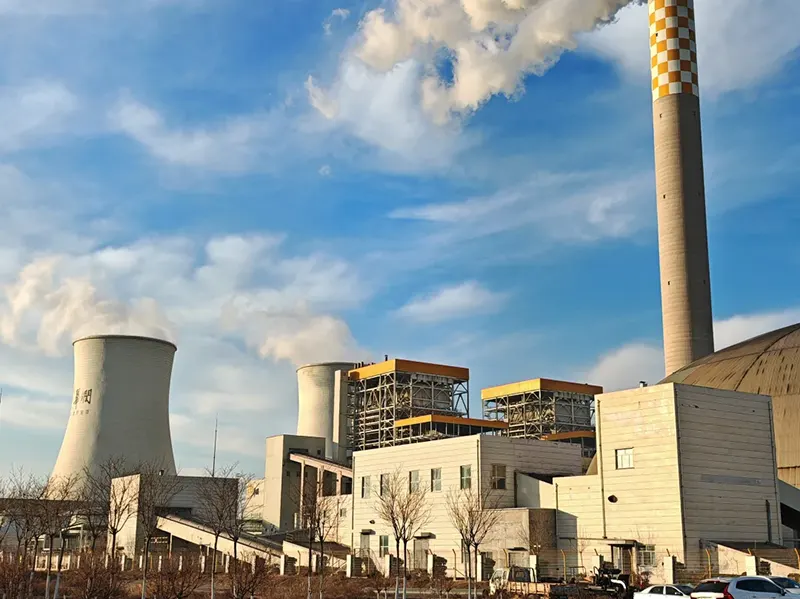

Handwheel gate valves are ideal for long-term stable fluid delivery systems. They are widely used in petrochemical industry, thermal power plants, municipal water supply and drainage, central heating systems, sewage treatment, oil transmission pipelines and general industrial equipment piping. It is especially suitable for main pipelines that require full flow and strict complete shut-off.

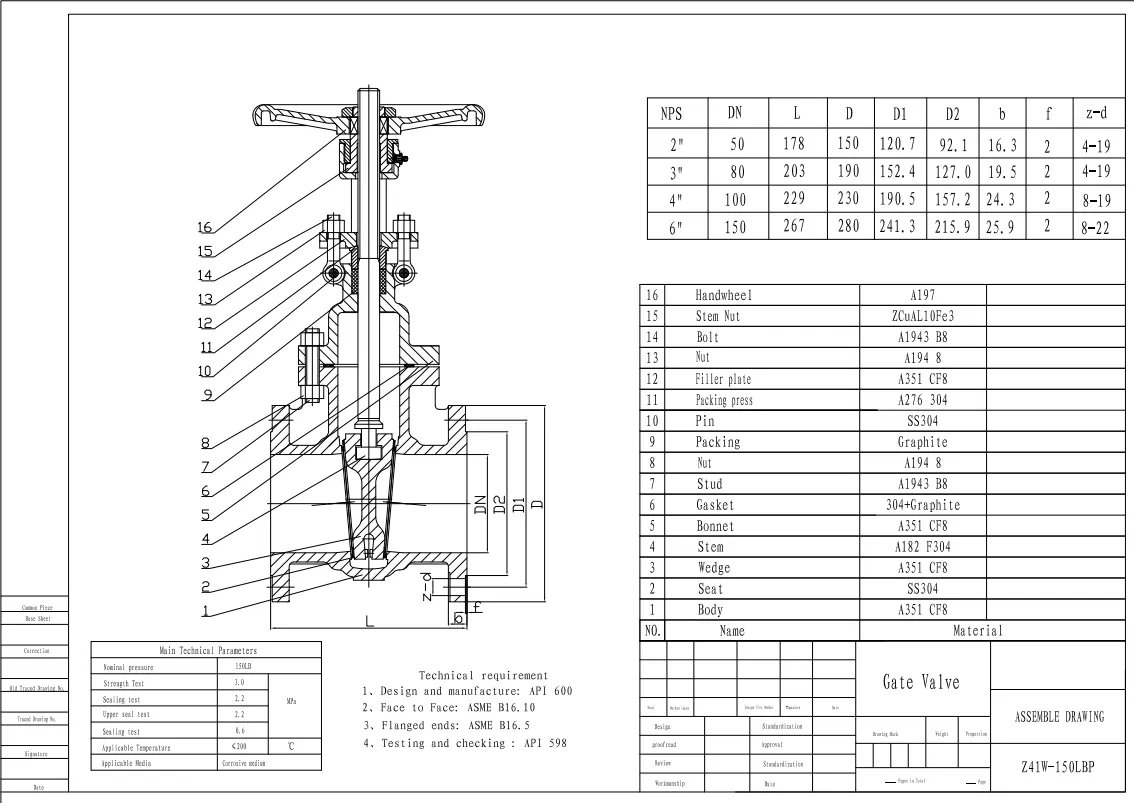

What is the structural feature of your Gate Valve With Handwheel?

Our gate valve adopts one-piece forged valve body, thickened and integrally molded for stronger pressure resistance. The precision machined wedge gate ensures smooth lifting and tight fitting. The valve stem is made of high-strength stainless steel, anti-rust and deformation-resistant. The handwheel is thickened cast iron design, non-slip and durable for frequent manual operation. The whole structure is robust, stable and not easy to deform under long-term pipeline pressure.

Can you support OEM and customized requirements?

Absolutely. We offer flexible OEM and ODM customization tailored to your project needs. We can adjust pressure ratings and non-standard dimensions, and source specialized sealing materials built for high-temperature or corrosive environments. We also support valve body logo engraving, custom surface treatment and personalized packaging. Our factory manufactures valves precisely according to your drawings and detailed technical requirements.

What certifications and inspection tests do your Gate Valve With Handwheel undergo?

All our handwheel gate valves are manufactured under ISO 9001 quality management system, with CE and API certifications. Before delivery, every single valve undergoes strict hydrostatic shell test, air tightness sealing test, opening and closing operation test and appearance inspection. Defective products will be eliminated directly to ensure all exported products meet international industrial standards.

What is your MOQ and delivery time?

We have large stock for regular standard sizes. Our order limit is quite loose, and we accept single-unit sample orders, small trial purchases as well as huge bulk orders for engineering projects. Standard specifications kept in our warehouse can be shipped out quickly. For tailor-made non-standard valves, we will work out a proper production plan based on product complexity and order volume, and promise a dependable lead time for all clients.

How to maintain handwheel gate valves for long service life?

Daily maintenance is straightforward. Check the handwheel flexibility, stem packing and flange bolts frequently, as pipeline vibration often loosens fasteners gradually. Wipe off dirt and moisture on the valve body to stop rust forming on the outer surface. Do regular opening and closing actions, so the sealing face won’t stick and get stuck after staying fully open or closed for months. Add dedicated lubricant to the valve stem on a routine basis for smooth lifting movement. Never run the valve beyond its rated pressure and temperature, which is the easiest way to greatly prolong its service lifespan.
