Pneumatic Stainless Steel Flanged Ball Valve

The Pneumatic Stainless Steel Flanged Ball Valve is an automated industrial valve designed for pipeline flow control and shut-off. Manufactured by Huadu Valve Group, it uses SS304 / SS316 stainless steel material and is well suited for automatic industrial working conditions.

It is widely used in chemical auxiliary pipelines, water treatment facilities, oil gas processing lines and automated production systems where automatic control, corrosion resistance and operational safety are critical.

The Pneumatic Stainless Steel Flanged Ball Valve ensures stable operation and long service life in demanding industrial environments.

Key Attributes

Raw Material & Structural Advantages

High Quality Stainless Steel Valve Body

The Pneumatic Stainless Steel Flanged Ball Valve is made from genuine SS304 & SS316 stainless steel material, ensuring:

-Superior rust, oxidation and corrosion resistance for humid, salty and mildly corrosive media

-Avoid rust accumulation, scale formation and medium contamination under long term service

-Standard casting & forging technology eliminates internal sand holes and air gap defects

-Solid pressure resistant structure, anti deformation under continuous running & frequent cycling

-Lower unexpected failure risk and reduced end-user replacement cost

Strict Material Inspection

Each batch of raw materials is tested to ensure:

-Accurate chemical composition for SS304 / SS316 grades

-No recycled or substandard materials

-Stable mechanical performance for harsh field conditions

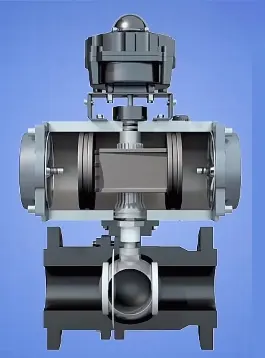

Pneumatic Actuator Drive Benefits

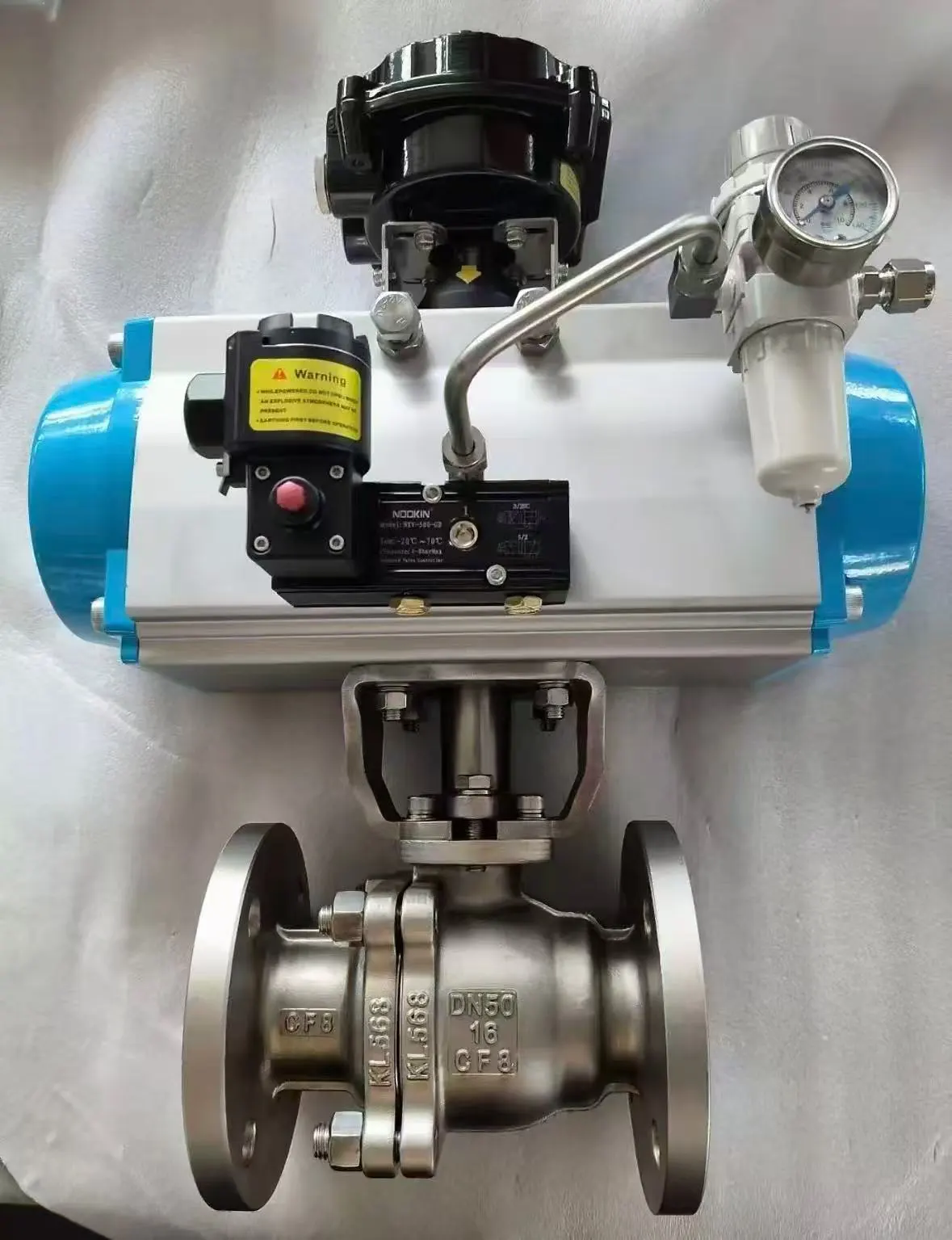

The Pneumatic Stainless Steel Flanged Ball Valve is equipped with premium pneumatic actuator, bringing these core merits:

-Air driven 90-degree on-off action, no manual operation required

-Support solenoid valve, limit switch and PLC connection for remote automatic control

- Suitable for high altitude, enclosed workshop and high risk chemical sites to avoid manual safety hazards

- Sensitive & stable switching performance, adapted to frequent on-off cycles of automated production lines

Standard Flange Connection Benefits

Standard industrial flange connection provides:

-Robust fixing, excellent tightness and strong pressure bearing capacity for heavy duty pipelines

-Easy alignment and assembly with standard pipe flanges during on site installation

-Convenient disassembly, inspection and maintenance in later pipeline overhaul

-Full bore inner design minimizes flow resistance, reduces pressure loss and guarantees smooth medium transmission

- Fully compatible with mainstream international industrial piping standards

Optimized Professional Sealing Structure

Optimized sealing details of this pneumatic flanged ball valve deliver:

-High grade PTFE seat with self lubricating and low friction property, smooth switching without scratching ball core

-Improved sealing effect under rated pressure, compensating minor wear from long time operation

-Anti blowout stem design together with multi layer packing, preventing stem ejection and tiny external leakage

-Polished floating ball core realizes precise fitting with seats for reliable bi-directional tight shut off for liquid and gas

Optional Actuator Safety Modes

Multiple actuator options satisfy different site safety requirements:

- Double acting pneumatic actuator: fast and balanced opening closing for general automatic control

- Spring return pneumatic actuator: automatic reset to full-open / full-close position upon air supply failure, preventing medium overflow and equipment damage for chemical & oil gas lines

- Hard anodized aluminum actuator housing, lightweight, wear resistant for dusty and humid workshop environment

- ISO 5211 standard mounting pad for easy matching with solenoid valves, limit switches and positioners

Technical Specifications

Standard Parameters

Size: DN15-DN200 (regular stock)

Pressure Rating: PN16 / PN25 / PN40/PN64/PN100

Material: SS304, SS316 stainless steel

Type: Pneumatic Stainless Steel Flanged Ball Valve

Temperature Range:-20 °C ~ 180 °C (subject to seat material)

Manufacturing Process

The Pneumatic Stainless Steel Flanged Ball Valve is produced through:

- Standard stainless steel casting & forging

- Heat treatment for stable material property

- CNC precision machining for sealing surfaces and flange ends

- Complete assembly with anti-blowout stem and matched pneumatic actuator

Performance Features

- Excellent anti rust and anti corrosion performance

- Full bore design for low flow resistance

- Bi directional tight shut-off for liquid and gas media

- Multiple actuator safety options for fail safe protection

- Resist pressure shock and water hammer impact caused by sudden flow change

- Designed for automatic pipeline shut-off & flow-control service

Application Areas

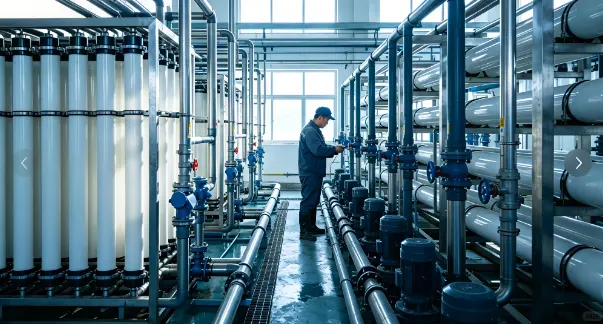

Water Treatment Industry

The Pneumatic Stainless Steel Flanged Ball Valve is widely used in:

- Automated municipal water treatment facilities

- Circulating water automatic control pipelines

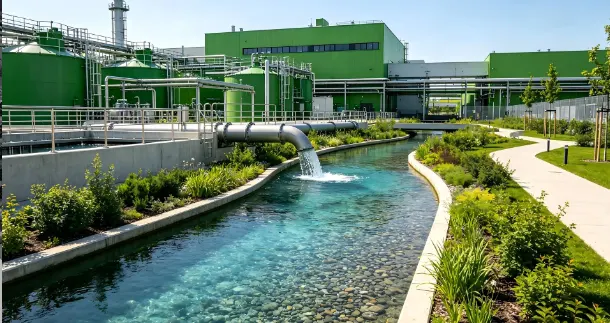

- Wastewater processing auxiliary systems

- Water supply automatic valve groups

Chemical & Oil Gas Industry

- Chemical automatic process pipelines

- Mild corrosive fluid control loops

- Oil gas processing automatic piping

- High risk zones inconvenient for manual operation

General Industrial Use

- Automated production line pipeline control

- Enclosed workshop and high altitude piping systems

- New automated pipeline construction and old site equipment renovation

Quality & Project Procurement Support

As a professional industrial valve manufacturer holding CE, ISO and API certifications, every Pneumatic Stainless Steel Flanged Ball Valve goes through strict factory tests including pressure resistance test, air tightness sealing test and appearance inspection. Our complete quality control system covers raw material screening, precision machining, professional assembly and finished product testing. Material test reports and inspection documents can be provided for overseas project review, bidding and site acceptance.

We support practical OEM and ODM customization services according to site working temperature, medium characteristics and piping standards. Customizable items include valve material, pressure class, sealing material and actuator configuration. Flexible MOQ supports small batch sample orders and large scale engineering bulk purchases. Our Pneumatic Stainless Steel Flanged Ball Valves are exported to global markets, winning consistent recognition and long term cooperation from worldwide customers.
