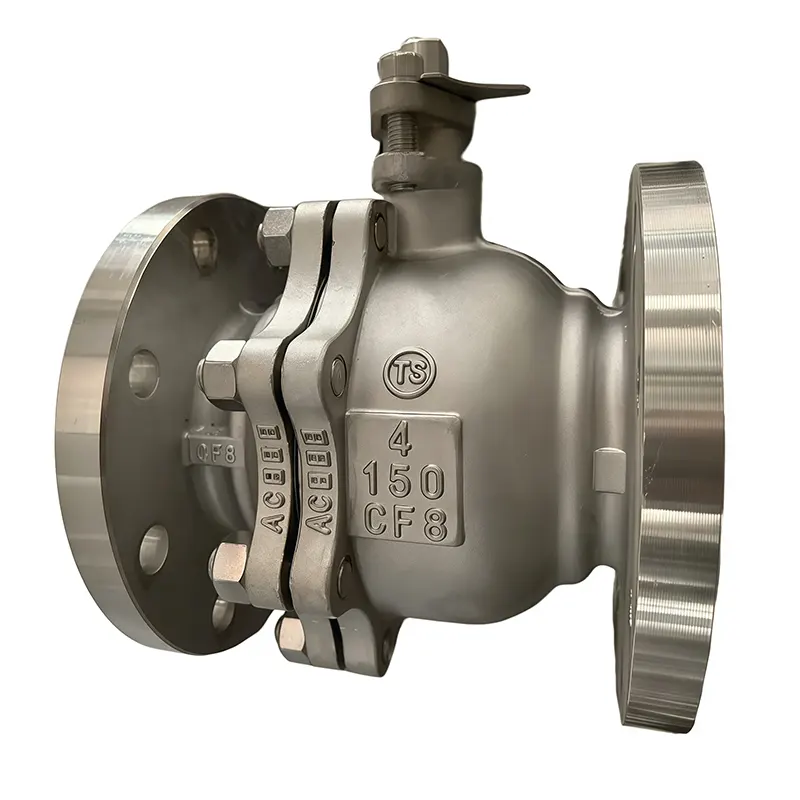

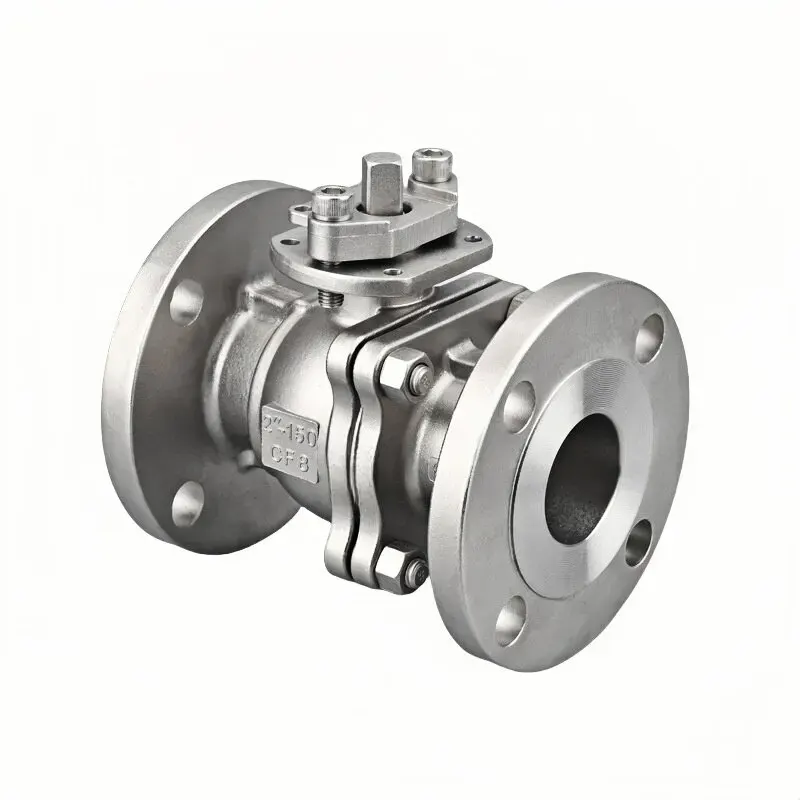

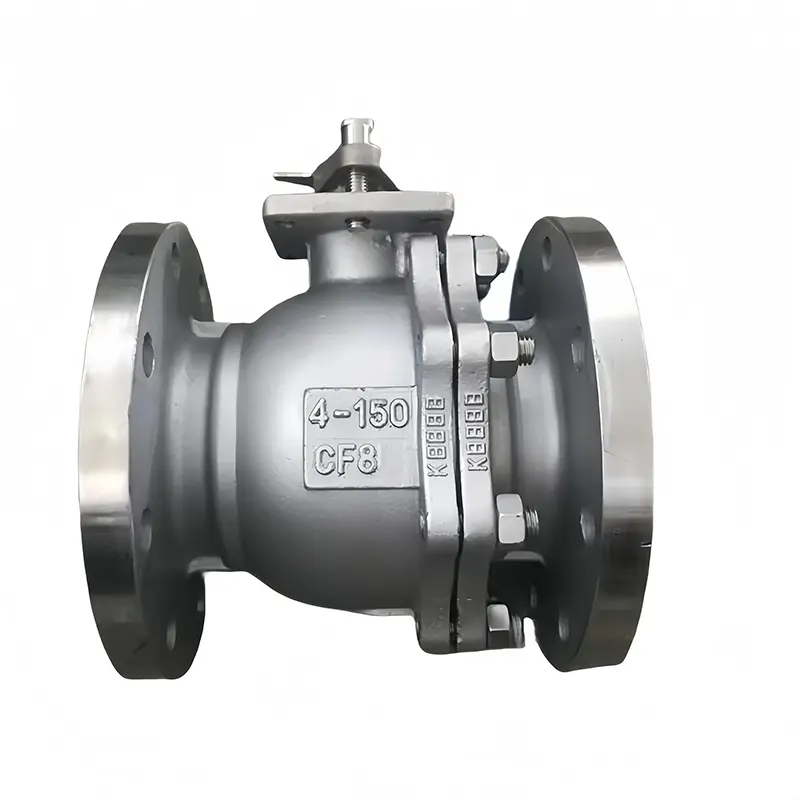

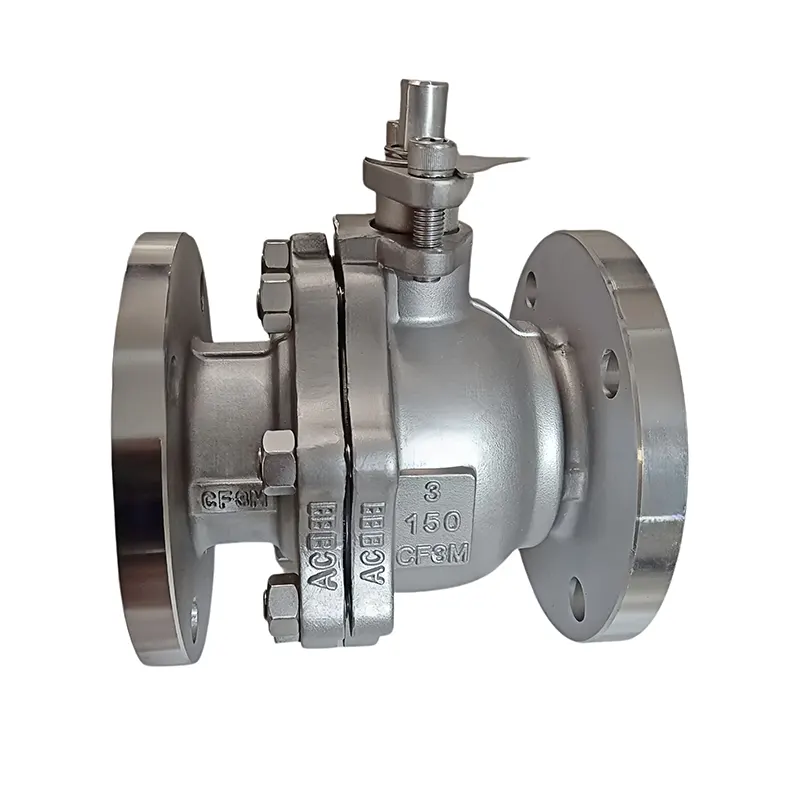

Stainless Steel Manual Ball Valve

The Stainless Steel Manual Ball Valve is a hand operated isolation & regulating valve engineered for on site fluid control. Produced at Huadu Valve factory, it leverages high spec stainless steel to tackle diverse non-extreme industrial working media.

It finds heavy deployment across water processing, light chemical, food pharma, coastal marine and general plant piping, where hygiene, anti-rust performance and power free operation are highly valued.

This manual ball valve maintains steady performance even under continuous cyclic service within tough plant environments.

Key Attributes

Raw Material & Structural Advantages

Why Stainless Steel Stands Out for Valve Bodies

Our manual ball valve is forged/cast from carefully selected SS304 and SS316 stainless steel (CF8 / CF8M casting grades).

Instead of basic carbon steel, stainless steel brings inherent resistance against rust, oxidation and mild chemical attack. This makes it ideal for damp plant workshops, coastal installations and slightly corrosive process fluids.

Advanced one piece forming techniques eliminate hidden internal flaws like blowholes or sand inclusions. The finished body delivers solid mechanical strength, good shock tolerance and stable pressure bearing capacity. Long run operation will not easily trigger body deformation or joint seepage, lowering your overall plant upkeep expense.

SS316 variant excels when chloride laden or salt containing fluids are involved. For standard water, air and gas utilities, SS304 remains the balanced, budget saving choice for most overseas buyers.

Rigid Raw Material Verification

Every incoming material batch goes through lab checks to guarantee:

- Chemical composition strictly matches SS304 / SS316 / CF8 / CF8M specifications

- Zero recycled or inferior substitute material

- Consistent mechanical properties to cope with real world site conditions

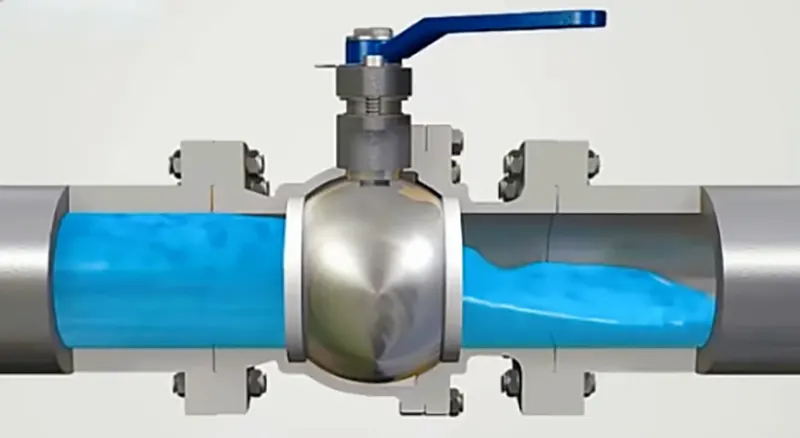

Floating Ball Manual Architecture Edge

We adopt proven floating ball principle paired with human friendly hand lever, designed for real world site usability:

-Fully manual actuation: no electricity, no air supply required; you avoid extra auxiliary hardware and associated failure risks

-Straightforward installation, intuitive operation and low barrier on site maintenance

-Optimized full bore flow path cuts flow turbulence, enabling smooth medium throughput without unnecessary pressure drop

-Precision-mated PTFE seats and polished floating ball achieve tight shut-off within rated pressure temperature envelope

-Field optional lockable handle restricts random rotation, effectively preventing accidental mis-operation by site personnel

-Designed for full-open / full-close isolation duty; prolonged throttling under half-open position is not recommended.

Flexible Connection Options for Diverse Pipework

Multiple end configurations are on offer: threaded ends, flanged ends, sanitary quick clamp connections.

- Broad size spectrum covering 1/2" up to 4 inch, compatible with multiple pressure classes

- Works equally well for small bore instrument lines and large flow main pipeline isolation

- Manufactured following ASME B16.34 standard, interchangeable with mainstream global piping layouts

- Our engineering team can assess customer drawings and develop tailor made solutions for non standard dimensional requirements.

Well Thought Out Sealing System

Sealing assembly is tuned for long term field endurance:

- Self lubricating PTFE seat lessens friction during lever rotation, protecting high gloss ball surface against wear

- Bidirectional tight shut-off performance for water, oil, gas and mild corrosive process fluids

- Optimized stem packing arrangement suppresses fugitive leakage along valve shaft

- Anti-fouling, anti-scale property preserves medium cleanliness, perfectly fitting hygienic production scenarios.

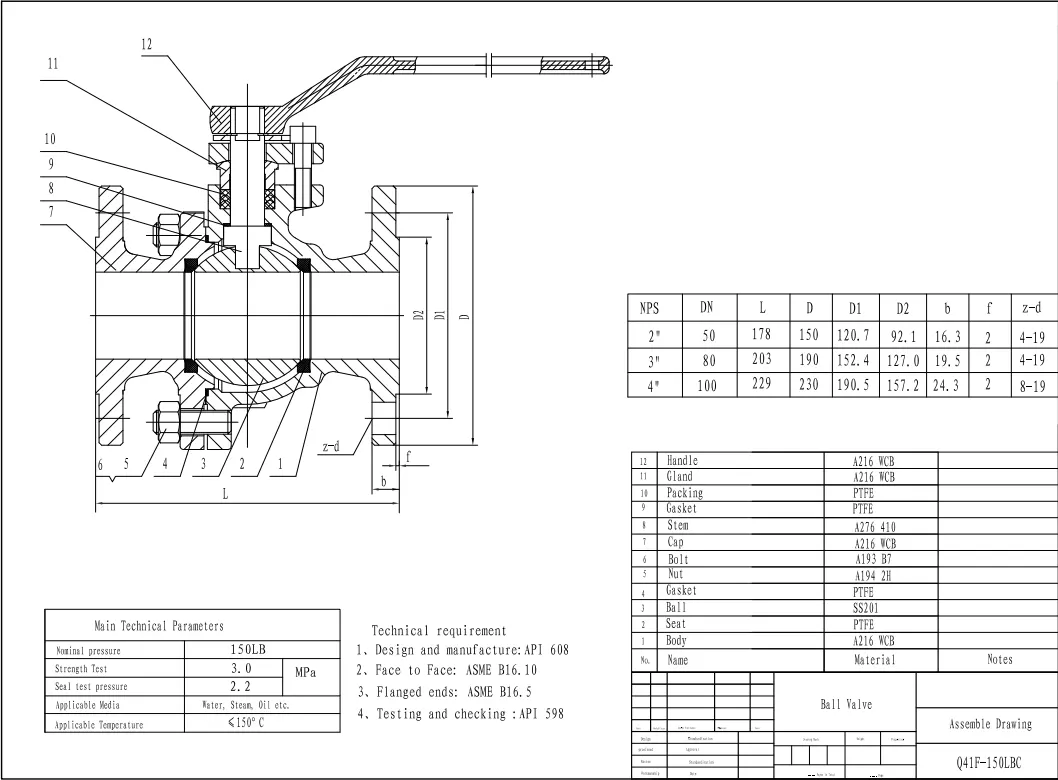

Technical Specifications

Standard Parameters

Size: 1/2"-4" (stock items available)

Pressure Class: PN16 / PN25 / PN40/PN64/PN100

Body Material: SS304(CF8), SS316(CF8M)

Valve Type: Stainless Steel Manual Ball Valve

Connection Form: Threaded / Flanged / Sanitary Clamp

Working Temperature:-20 °C ~ 180 °C (depends on seat compound)

Manufacturing Workflow

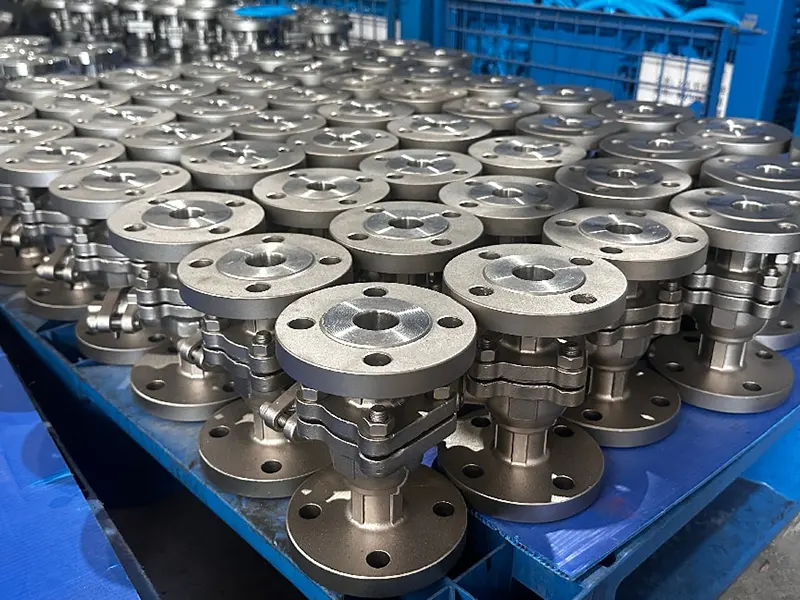

Our Stainless Steel Manual Ball Valve goes through complete production steps:

-Stainless steel precision casting / forging

-Heat treatment to stabilize material mechanical attributes

-CNC high precision machining for ball, sealing faces and connecting ends

-Full unit assembly with hand lever; lockable handle fitted upon request

Performance Highlights

- Outstanding rust & corrosion resistance

- Full bore design for minimal pressure loss

- Reliable bidirectional tight closure for liquid & gas

- Power free manual operation, high site adaptability

- Handle locking accessory for anti misoperation

- Compliant with ASME B16.34 international piping norms

Application Areas

Water Treatment Sector

The Stainless Steel Manual Ball Valve is widely applied in:

-Municipal water supply & treatment pipe networks

-Circulating water and waste water auxiliary circuits

-Clean water pipeline isolation and switching points

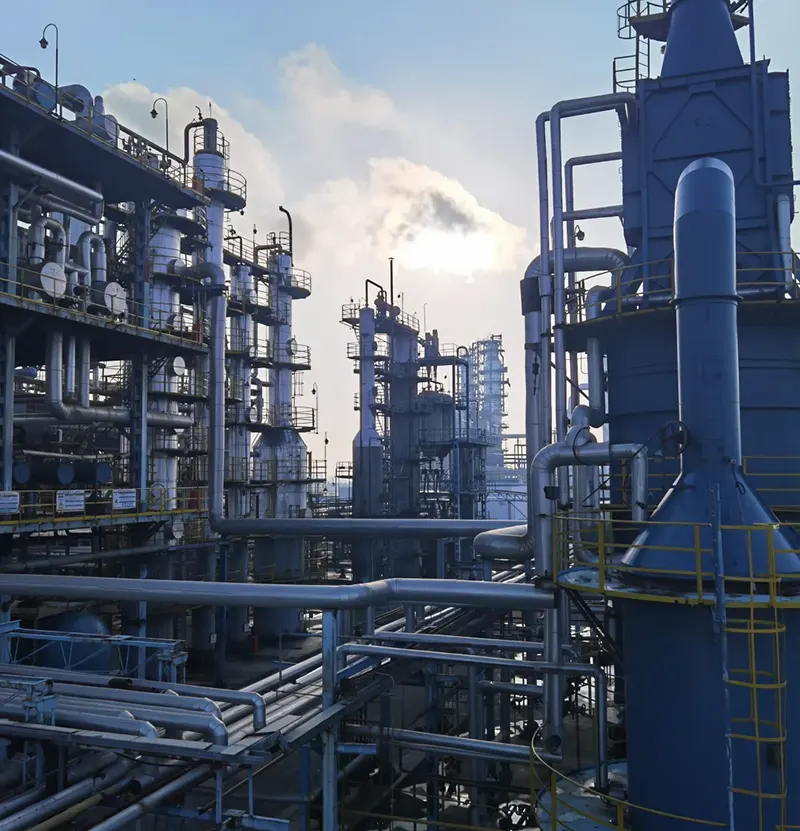

Chemical & Petrochemical Sector

- General light chemical process piping

- Mild corrosive fluid control loops

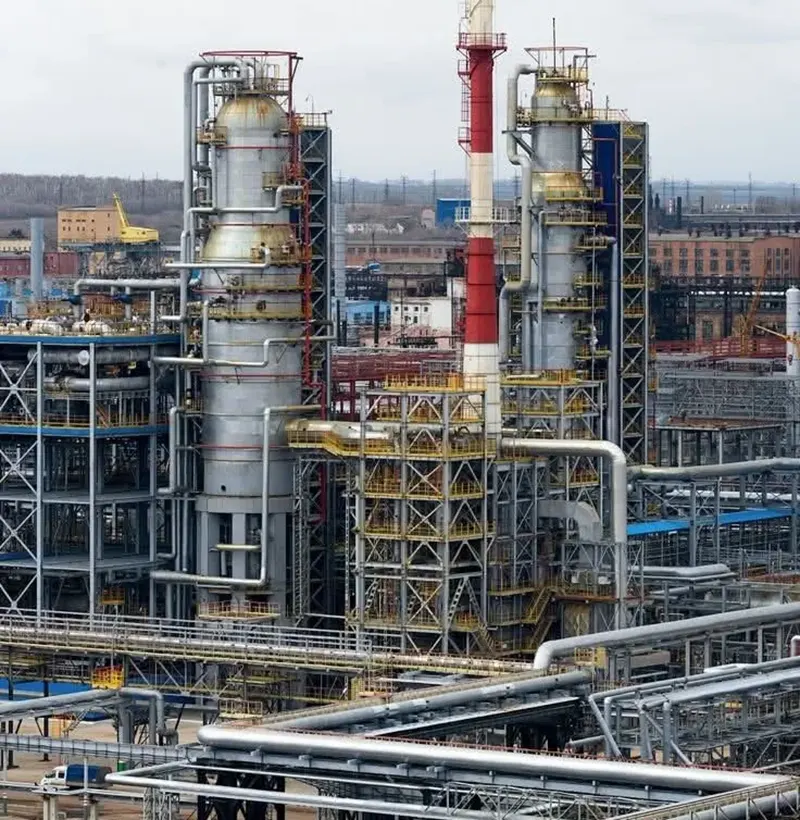

- Auxiliary pipeline networks for petrochemical plants

Food Beverage & Pharmaceutical Sector

- Sanitary pipelines for food & drink production lines

- Process piping within pharmaceutical workshops

- Hygienic fluid transfer where contamination free is mandatory

Marine & General Industrial Scenarios

- On shore coastal and near shore marine piping systems

- Auxiliary loop control for engineering contractor site projects

- Fast moving spare stock for local distributors and plant overhaul jobs

On-Site Operation Tips & Global Project Support

To maximize service lifespan: clear welding slag and solid debris inside pipelines before installation. Do not apply brute force to hand lever. Carry out periodic full stroke cycling to stop seal sticking after long static standby. Minor stem leakage can be rectified by slight packing adjustment. Include joints and handle status in your regular plant inspection rounds.

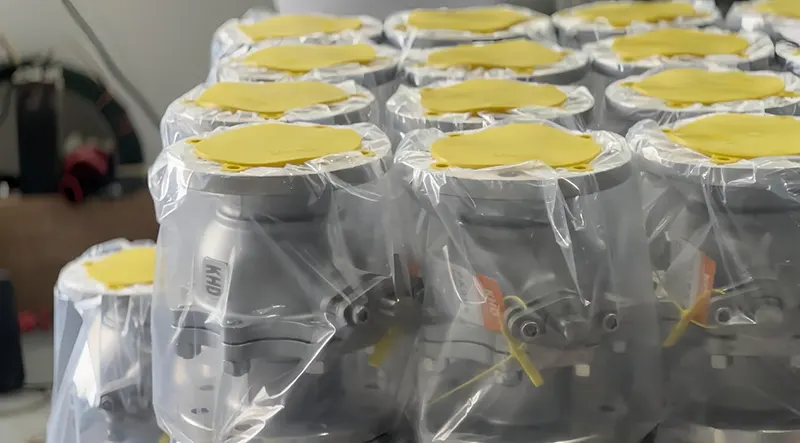

As an API, ISO, CE certified valve manufacturer, every unit passes pressure test, leakage test and visual inspection prior to dispatch. Our complete QC workflow covers raw material incoming check, precision machining through finished product validation. Material test certificates can be supplied for tender submission and site acceptance of overseas projects.

Flexible OEM & ODM custom service is accessible: material adjustment, special sizing, surface finishing, logo engraving and custom condition optimization are all supported. Flexible MOQ accommodates small sample trials as well as mass bulk orders for large scale projects.

Our stainless steel manual ball valves have gained wide market recognition across Southeast Asia, the Middle East, Africa, Europe and beyond. Thanks to consistent field performance and proven long term durability, we have built solid long term partnerships with distributors, engineering contractors and end plant operators worldwide. Whether you require dependable units for ongoing project roll outs or regular stock replenishment, feel free to get in touch with our team. We are ready to share full technical datasheets and competitive quotations tailored to your actual requirements.
