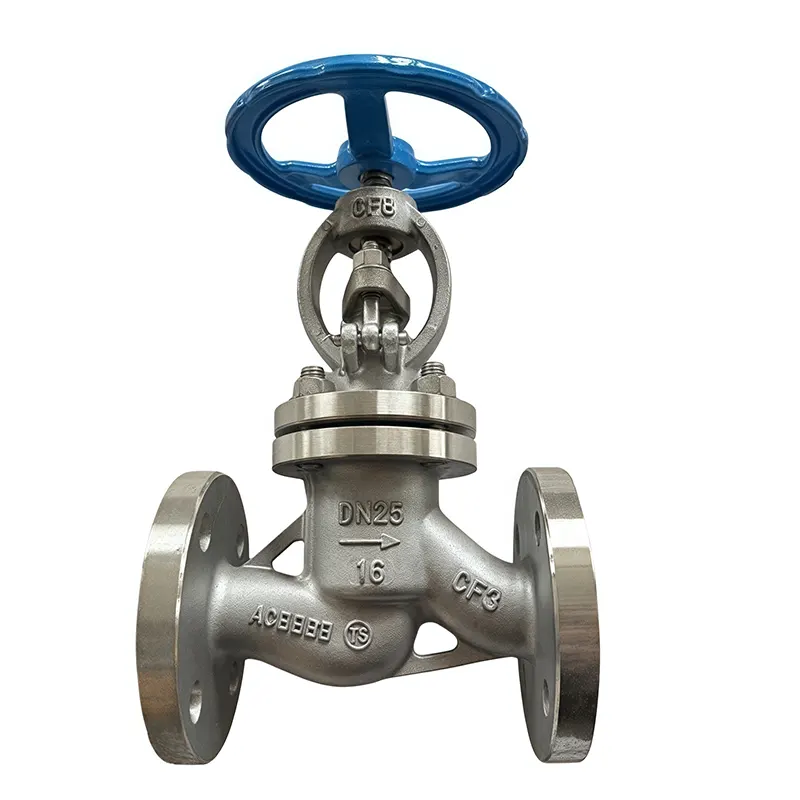

Stainless Steel Industrial Globe Valve

We are a professional valve maker holding ISO,CE and API certifications. We own advanced production equipment and a full set of quality control systems. We also accept OEM and ODM orders, with flexible minimum order quantities. Our reliable products are exported globally and win wide recognition from clients.

What are the primary uses?

This Stainless Steel Industrial Globe Valve mainly adjusts and fully cuts off fluid flow on pipelines. It handles corrosive liquids, clean water, chemical solvents and sanitary raw materials perfectly. Buyers often install it in chemical workshops, pharmaceutical lines, food processing plants, seawater treatment and marine piping systems.

Key Attributes

Why use stainless steel over other materials?

Stainless steel holds up way better against rust and chemical damage than carbon steel. It won’t corrode in damp or acidic lines, and it meets hygiene rules for food and pharmaceutical pipelines. It does cost more than WCB carbon steel upfront, but it stands up to corrosive environments for years and lowers your long-term upkeep expenses.

How does it compare to a ball valve?

Globe valves are great if you need to tweak flow rates precisely, whereas ball valves are meant for fast full open or full shut operations. The stainless steel globe valve creates minor flow resistance, but it lets you fine-tune the fluid volume easily. Ball valves barely block flow at all, yet they can’t maintain steady partial flow. If your line needs accurate flow control, go with the globe valve.

What standard sizes and pressure grades do you offer?

Our sizes cover NPS ½ all the way to NPS 24, with pressure classes ranging from Class 150 to Class 600. Flanges follow ASME B16.5, every valve gets tested to ASME B16.34 specs. We’re able to craft special sizes for jobs with unusual sizing needs.

Can you customize this stainless steel globe valve?

We do custom OEM and ODM work. Pick SS304 or 316 bodies, soft or hard seals, plus handwheel, electric or air-driven actuators. We can carve your logo and tweak surface finish too. We take small sample orders and big bulk shipments with loose MOQ limits.

What is a Stainless Steel Industrial Globe Valve?

It is a heavy-duty industrial shut-off and throttling valve with stainless steel cast body, designed for industrial pipeline systems. It adjusts flow rate and fully cuts off fluid by vertical movement of the disc, widely used in corrosive, high-purity and high/low temperature industrial working conditions.

What sealing types can be chosen?

Soft seal: PTFE, EPDM, graphite, achieving zero leakage for clean medium at medium-low temperature;

Hard seal: Stellite cobalt alloy surfacing on disc and valve seat, wear-resistant, high temperature resistant, suitable for steam, high-pressure industrial pipelines.

Any mandatory installation requirements?

Follow the flow arrow cast on valve body, medium flows from below the disc to upper side; reverse installation leads to poor sealing and heavy operation torque.

Keep valve stem vertical during installation, avoid horizontal stem placement.

Use stainless steel or alloy bolts for flange connection to prevent galvanic corrosion.

Clean all welding slag and impurities on flange sealing surface before assembly.
