ANSI Globe Valve

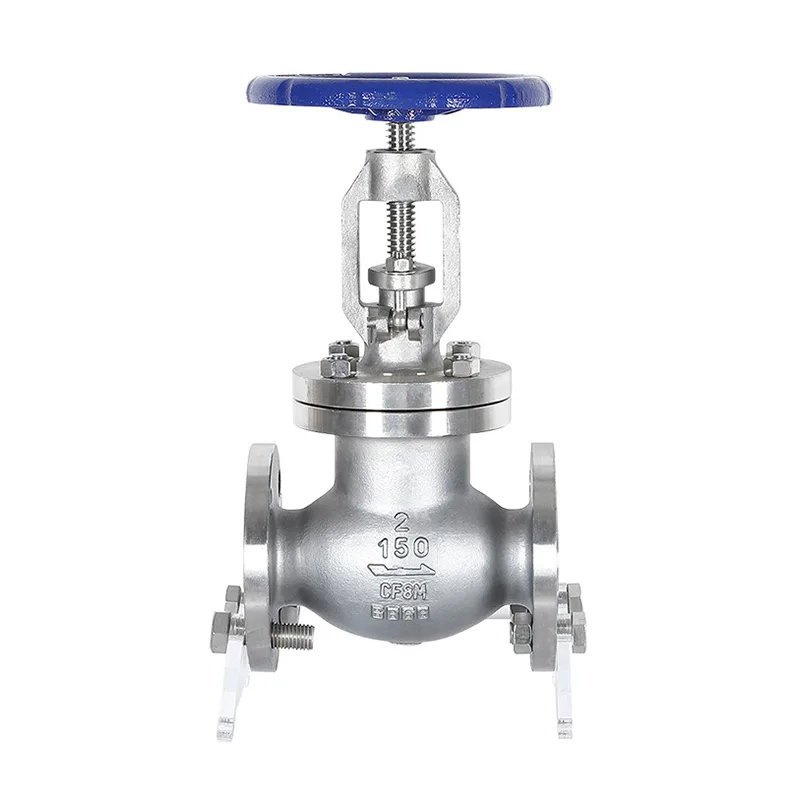

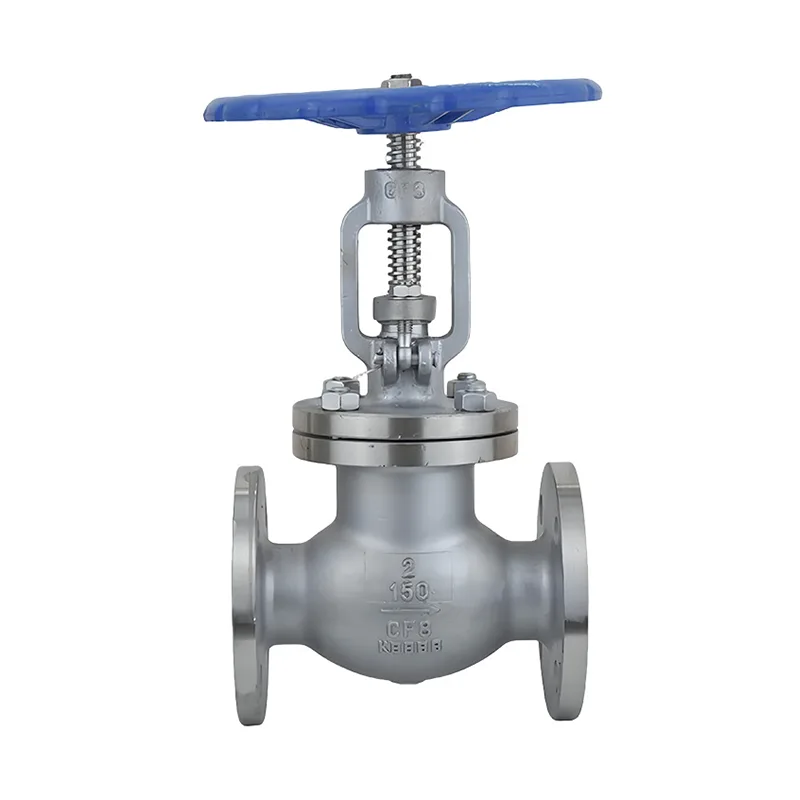

China Huadu CF8M (316L) Globe Valve, 2-inch diameter, ANSI 150-pound class, with American standard flange and no need for adapter. Equipped with a bracket for stable installation, with precisely ground seals for precise flow control. Comes with an exclusive packaging for export, suitable for foreign-related projects, etc. It is a highly cost-effective and practical choice.

Core selling point advantages

The key feature that makes this ANSI Globe Valve most suitable for American standards is "compliance + durability": The valve body is made of CF8M stainless steel (corresponding to the 316 material commonly used in American standards), and the Huadu factory will conduct material inspections according to American standards during the input process. The chromium-nickel content fully meets the requirements of the ANSI standard; The valve body also has a dedicated fixed bracket, which ensures a more stable fit with the pipeline after installation, even when the flow rate is frequently adjusted, the valve body is less likely to shake or shift; The sealing surface has been precisely ground to the American standard level, and under the ANSI 150-pound working conditions, the sealing degree during opening and closing is very high, and there is basically no leakage situation, and the flow control accuracy is much higher than that of ordinary stop valves.

Technical Specifications

The valve body casting can directly correspond to the American standard parameters: the diameter is 2 inches, the pressure rating is ANSI 150-pound level, the material is marked as CF8M, which is exactly the high-frequency usage specification for American standard pipelines; the connection method is ANSI standard flange, the hole spacing and sealing surface all comply with the requirements of ANSI B16.5, no additional modification of the American standard pipeline interface is needed, and it can be directly connected upon receipt - unlike some non-American standard valves that require additional adapter pieces, which saves a lot of installation and debugging efforts.

Application fields

The applicable scenarios for this ANSI model Globe valve are mostly related to American standard pipelines: such as American standard pressure medium transportation pipelines; the supporting pipelines for export equipment, which need to comply with the ANSI standards required by foreign customers; clean fluid transportation pipelines for export products in the food and pharmaceutical industries, as well as thermal circulation pipelines that need to interface with American standard systems - as long as the pipeline system is built according to the ANSI standards, it can be directly used without the need to find custom-made valves separately.

Peer comparison and price advantage

Compared with the imported ANSI Globe Valve, Huadu's version has a very outstanding cost-performance ratio: It is directly supplied by a Chinese local factory, and the materials and compliance meet the requirements of the American standard completely; moreover, the factory can directly meet the fine-tuning needs of the American standard parameters, unlike other valves which require waiting for the response from the brand - for valves with limited budget but compliance requirements of the American standard, choosing this one is almost certain to be correct.

After-sales service and shipping advantages

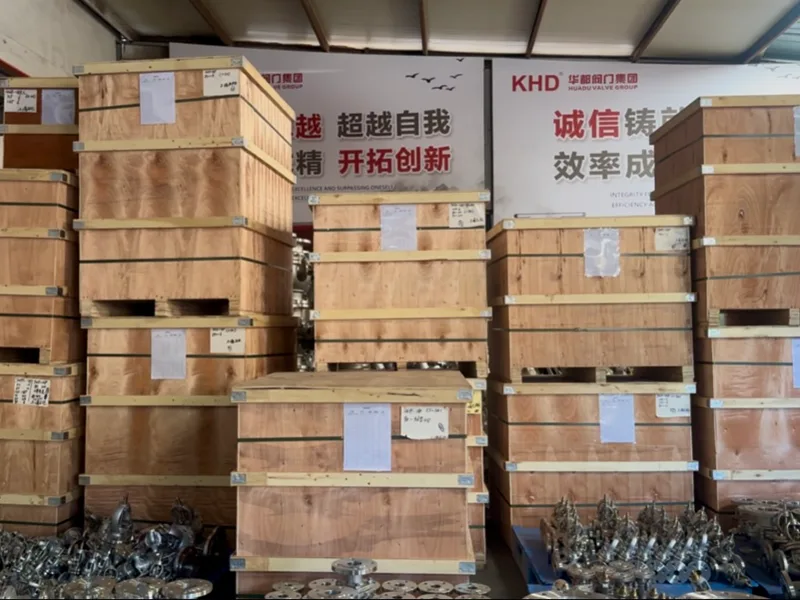

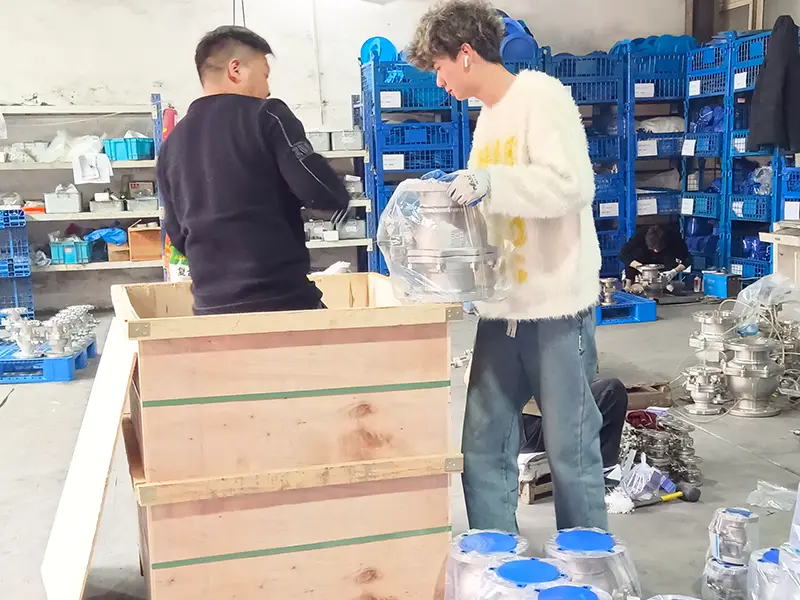

Since it is a US standard valve, the technical team of Huadu can directly address the compatibility issues related to the US standard working conditions: if you are unsure about the details of the connection of the US standard flange, the technical department will send the installation diagrams according to the ANSI standard; during the warranty period, if there are non-human-induced compatibility issues with the US standard working conditions, the factory will directly arrange for replacement. In terms of shipping, it also meets the export requirements, capable of providing export-standard packaging to avoid damage to the valve body. For small batches of US standard specifications in stock, it can quickly arrange for shipment, which is sufficient to meet the progress of export projects.

When choosing a standard valve, the key lies in "compliance + convenience". Huadu's this ANSI Globe Valve precisely covers both of these aspects. Whether it's for the export project's matching or for filling in the gaps in American standard pipelines, it is a very practical choice.

Key attributes

Packaging
