Chemical Industry Specific Gate Valve

We are a professional valve maker holding ISO, API and CE certifications. We own advanced production equipment and a full set of quality control systems. We also accept OEM and ODM orders, with flexible minimum order quantities. Our corrosion-resistant chemical valves are exported globally and win wide recognition from chemical industry clients.

Key Attributes

What are the special features of this Chemical Industry Specific Gate Valve, different from ordinary common gate valves?

Ordinary gate valves mostly focus on regular water, steam and oil medium, while our chemical dedicated gate valve is upgraded targeted at corrosive chemical media. We optimize raw material selection, sealing configuration and internal channel structure. The valve body is thickened to resist medium erosion; the wedge gate and sealing surface adopt anti-corrosion reinforcement treatment, the straight-through inner channel is polished smoothly to reduce material adhesion and residue accumulation, which effectively avoids crystallization, scaling and blockage often seen in chemical pipelines. It can stably work with acid, alkali, brine and various chemical mixed liquids, far exceeding ordinary gate valves in anti-corrosion and long-time continuous operation performance.

What material options are available for chemical industry specific gate valves, and what working conditions are each material suitable for?

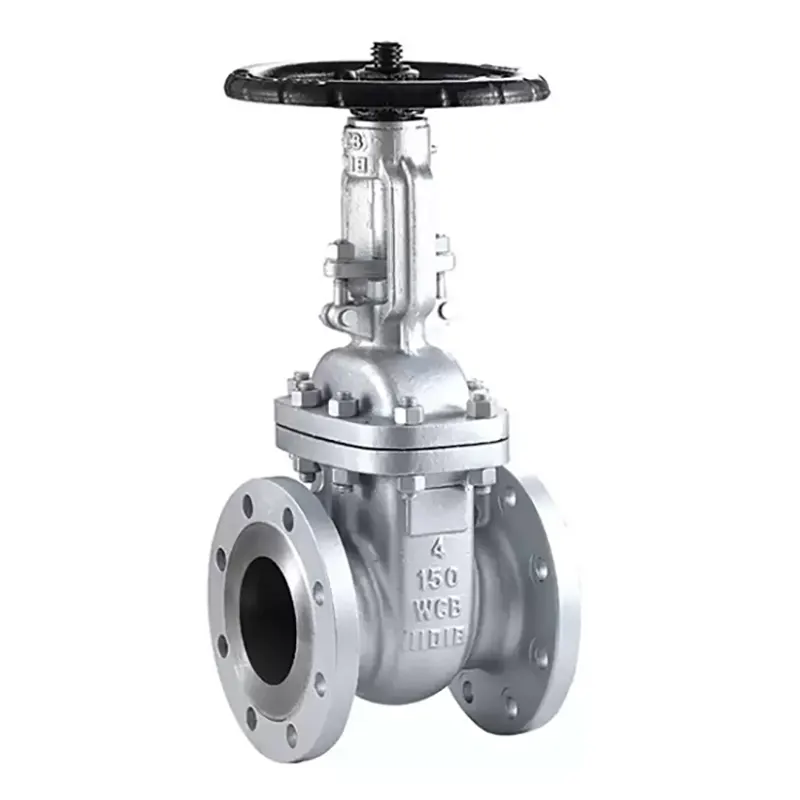

WCB carbon steel is budget-friendly. It works well with mildly corrosive liquids and neutral solvents, and fits low-temperature chemical delivery pipes, commonly used for auxiliary pipelines in ordinary chemical plants.

CF8 (304 stainless steel) is our standard anti-corrosion material. It performs steadily when transporting weak acid, weak alkali and daily chemical raw materials, and is frequently adopted for regular chemical wastewater pipelines.

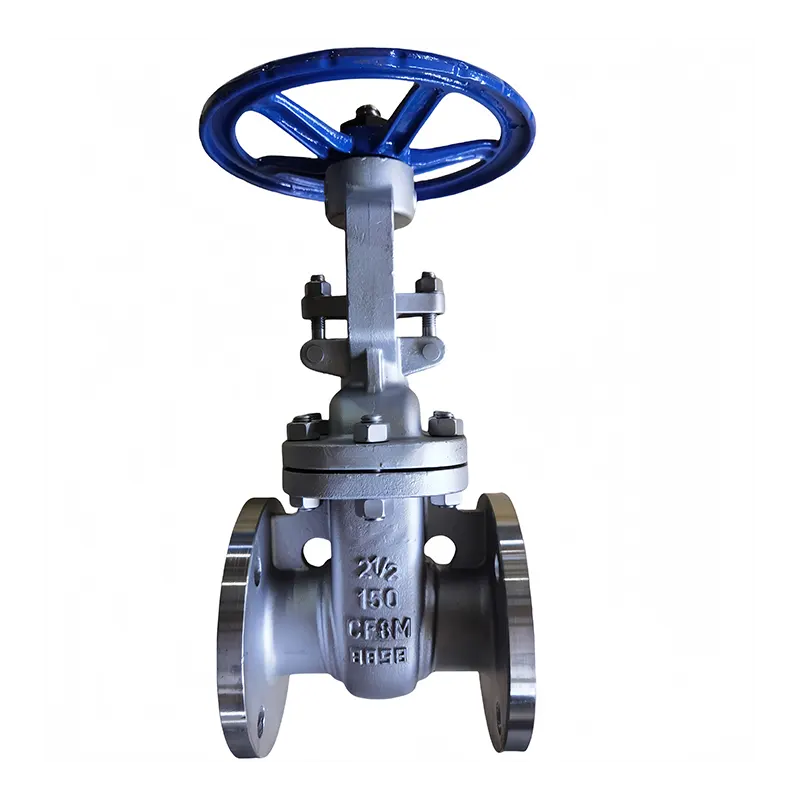

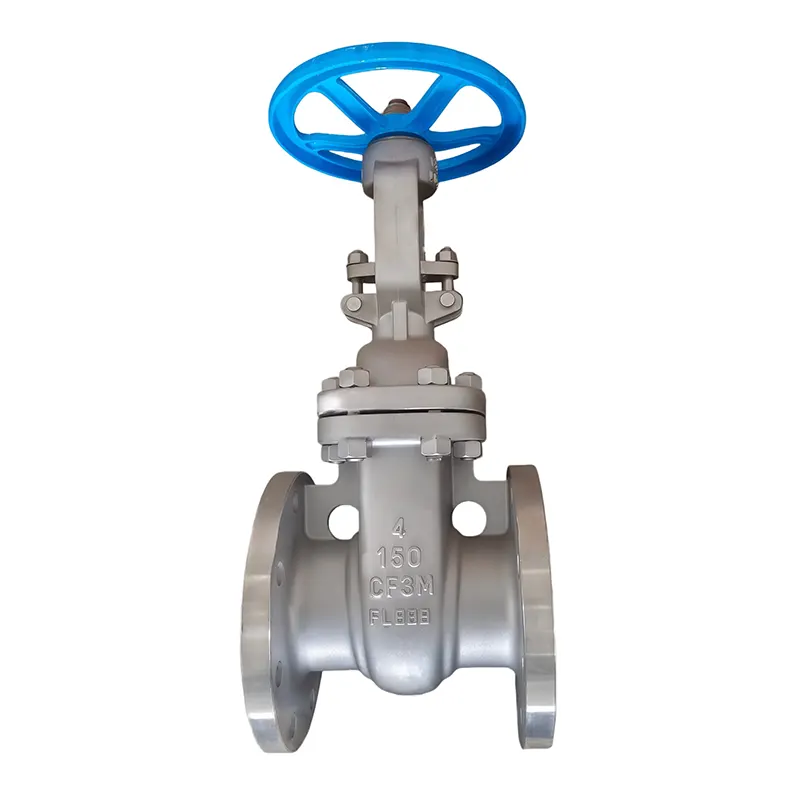

CF8M (316L stainless steel) boasts superior corrosion resistance. It can cope with hydrochloric acid, dilute sulfuric acid, brine and other highly corrosive substances, making it the top pick for fine chemical and pharmaceutical production lines.

We can also customize Hastelloy, Monel and other special alloy materials for ultra-corrosive harsh working conditions on demand.

Does the chemical gate valve support bidirectional sealing? Will leakage happen after long-term use?

All our chemical dedicated gate valves adopt mature reinforced wedge self-sealing structure, realizing reliable bidirectional tight shutoff. No matter the medium flows forward or reversely inside the pipeline, the valve can keep zero leakage after fully closed. The sealing surface uses anti-corrosion hard-facing treatment, which is wear-resistant and erosion-resistant. As long as it works within rated pressure and temperature range, regular chemical medium will not cause rapid sealing failure, and stable sealing performance can be maintained for long-term continuous production.

What pressure grades and caliber sizes are available? Can non-standard customized sizes be produced?

Our standard gate valves adopt ANSI 150LB and 300LB pressure specifications, sizes cover DN15 to DN600 and fit most routine chemical pipelines directly. We can make valves with special pressure levels and irregular sizes on request. According to your site installation space and real working environment, our factory can design exclusive gate valves to fit your workshop unique pipe arrangement.

What temperature range can these chemical industry specific gate valves work within normally?

Normal PTFE soft seal versions work steadily from -20℃ to 180℃, great for most room-temperature chemical production lines. Custom metal hard seal ones can stand heat up to 450℃, suitable for high-temperature chemical reaction pipelines. We also offer special low-temperature sealing structures that work for delivery of liquefied chemical materials under cryogenic conditions.

Can you provide OEM & ODM customization services? What personalized adjustments are supported?

We provide flexible full OEM and ODM customization service. We can replace anti-corrosion alloy materials, configure high-temperature / wear-resistant special sealing parts, engrave exclusive brand logos on valve bodies, adjust surface anti-corrosion coating, customize export packaging standards, change flange connection standards. We can completely produce valves strictly according to your engineering drawings and detailed technical parameters to match unique chemical project requirements.

What certifications and factory inspections will the finished valves go through before delivery?

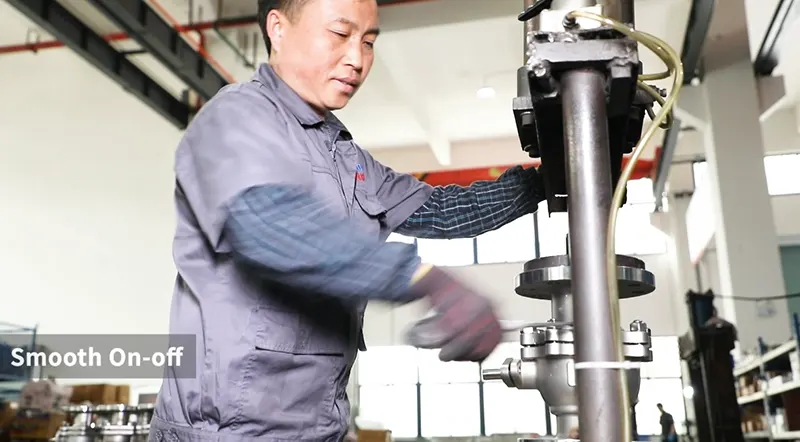

Our factory holds ISO, CE and API official certifications. Every chemical gate valve will go through strict tests one by one before shipment: shell hydrostatic pressure test, sealing tightness test, opening & closing operation fatigue test, raw material spectrum inspection to confirm material composition. Unqualified products will be eliminated directly, all delivered valves meet international chemical equipment safety standards.

Is sample service available for performance test before bulk order placement?

Samples for quality and corrosion resistance testing are available. Standard in-stock valves can be delivered quickly for your lab and on-site trial test. If you need customized special material samples, we will arrange small-batch sample production, confirm clear production cycle with you in advance. You can place formal bulk orders only after you test and confirm the sample meets your working requirements.

What are the key routine maintenance points to extend the service life of chemical industry specific gate valves?

Check handwheel operation flexibility regularly, ensure the gate lifts smoothly without jamming caused by medium crystallization;

Clean residual chemical medium attached to the valve surface and inner channel regularly to avoid long-time corrosion erosion;

Add special anti-corrosion lubricating grease to the valve stem periodically, prevent rust and stem clamping;

Strictly prohibit overpressure and over-temperature operation beyond the valve rated parameters;

Close the valve tightly during long-term shutdown to avoid corrosive medium soaking the sealing surface for a long time.

Which chemical industry scenarios are these gate valves most widely used in?

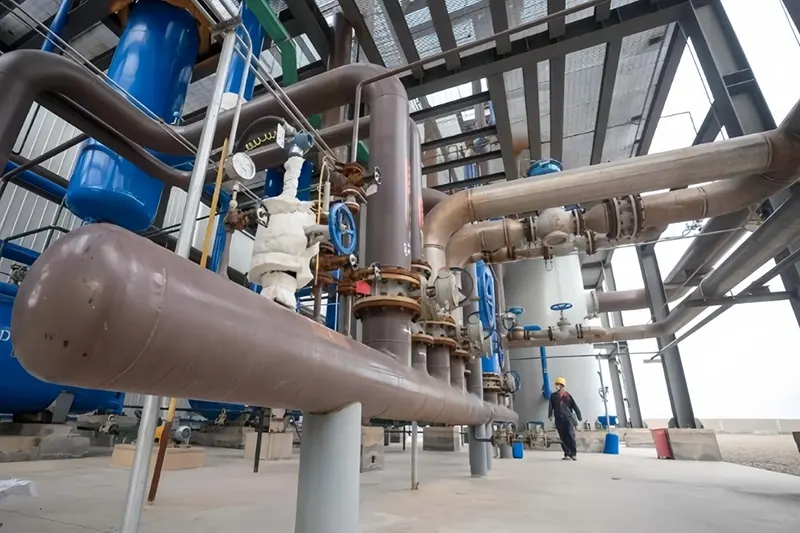

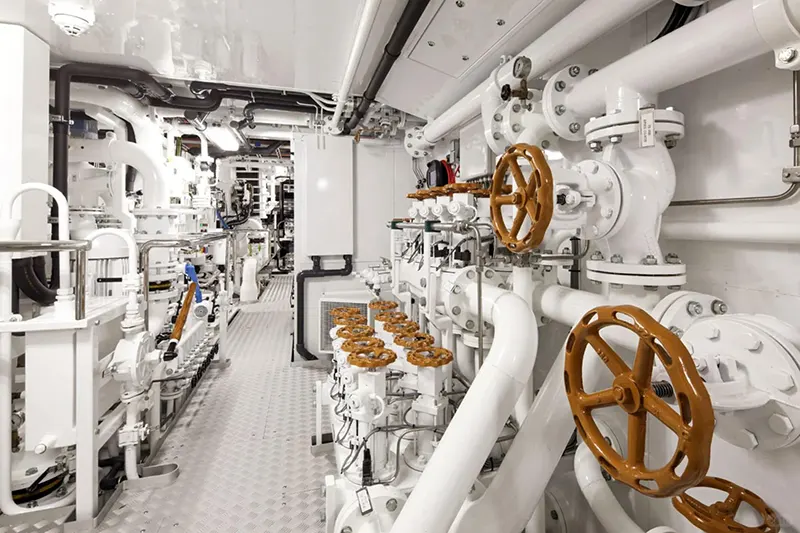

They are widely applied in fine chemical production lines, petrochemical pipelines, pharmaceutical chemical processing, chemical raw material storage & transportation, chemical wastewater treatment, fertilizer manufacturing, new material processing and other mainstream chemical projects.
