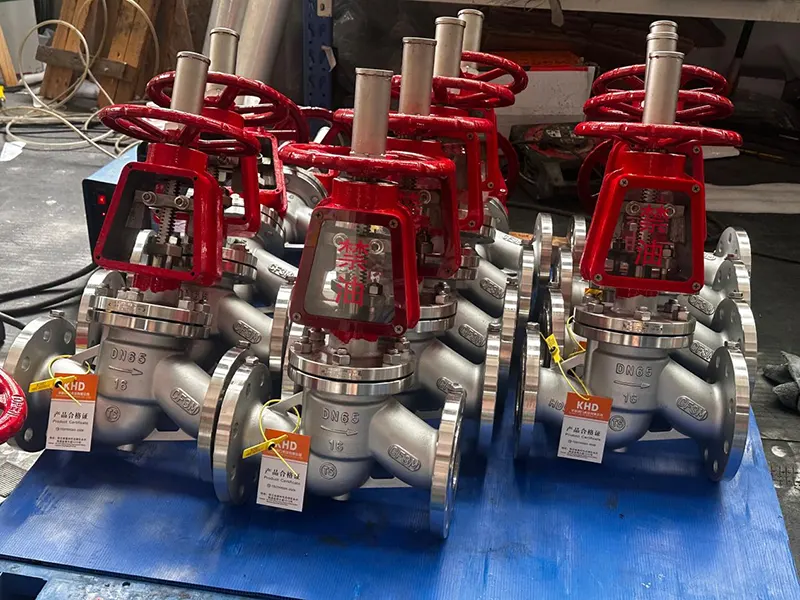

Stainless Steel Oxygen Globe Valve

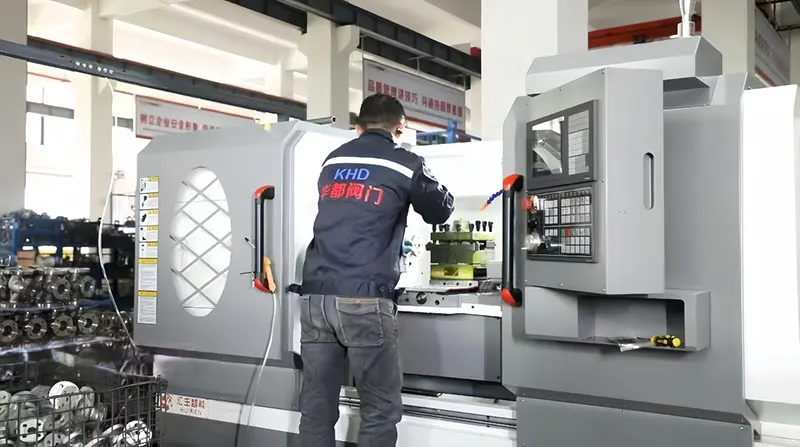

We are a seasoned valve manufacturer certified with ISO, CE and relevant pressure vessel standards. We equip full automatic precision machining machines and strict multi-link inspection procedures covering raw material incoming test, finished product pressure test and cleanliness detection. Custom OEM and ODM service is available, we can adjust size, connection type and inner polishing standard as clients’ actual pipeline demands, with flexible MOQ for both bulk engineering orders and small trial orders. Our oxygen dedicated valves have been delivered to dozens of countries, earning consistent trust from gas engineering and industrial construction purchasers worldwide.

Key Attributes

What is a stainless steel oxygen globe valve, and what scenarios is it suitable for?

This type of globe valve is professionally developed exclusively for oxygen, oxygen-enriched gas delivery pipelines, and it undertakes two core functions: medium cut-off and flow throttling control. Different from ordinary general industrial valves, it undergoes strict oil-free degreasing and high-standard internal polishing to eliminate flammable hidden dangers caused by high-speed oxygen friction and particle collision.

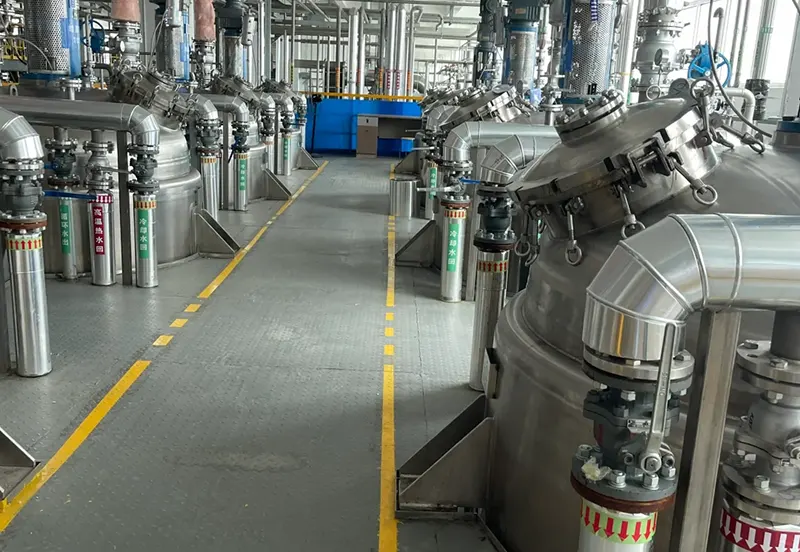

It is widely applied in industrial oxygen stations, chemical gas production lines, metallurgical smelting pipelines, biopharmaceutical purification workshops, aerospace supporting pipelines, and hospital centralized oxygen supply systems. It is the essential safety valve for all high-purity oxygen delivery projects.

Why are oxygen valves mostly made of 304 / 316L stainless steel instead of carbon steel or cast iron?

Carbon steel and cast iron are prone to rust, oxide peeling, and tiny metal debris under long-term working conditions. When these hard particles rub and collide in high-speed flowing oxygen, they will instantly ignite and trigger pipeline explosion accidents.

304 and 316L stainless steel have excellent oxidation resistance and corrosion resistance; after precision polishing, the inner wall is smooth and dense, with no rust flaking, minimal particle shedding, and stable chemical properties. It can adapt to long-term contact with high-purity oxygen and fully satisfy the ultra-clean safety requirements of oxygen medium transportation.

What special anti-combustion and cleaning treatments do your oxygen globe valves go through?

All our finished oxygen globe valves follow a standardized dedicated cleaning process:

First, ultrasonic high-temperature degreasing removes all mechanical lubricating oil, cutting fluid and residual grease inside the valve body;

Second, repeated rinsing with high-purity deionized water washes away fine dust and tiny metal particles;

Third, dry, impurity-free nitrogen purges the valve cavity thoroughly for drying;

Finally, finished products are sealed and packed in a dust-free workshop to prevent secondary pollution.

The whole process ensures zero grease, zero impurities inside the valve, fundamentally avoiding oxygen combustion accidents.

What pressure grades, temperature range and standard specifications do you supply?

Pressure grades: PN16, PN25, PN40, PN64, Class150, Class300, Class600 are conventional stock models; ultra-high pressure customization is available.

Applicable medium temperature: -29°C ~ +180°C, can match normal-temperature oxygen and low-temperature liquid oxygen working conditions.

Nominal diameter range: DN15~DN200 for regular stock; DN6~DN300 non-standard caliber can be customized on demand.

How about the sealing performance? Will frequent opening and closing cause leakage?

We adopt hard precision lapped sealing pairs and oxygen-specific non-flammable sealing filler. Each valve will undergo shell hydraulic strength test and sealing tightness test one by one before delivery, reaching industrial zero-leak standard under rated working pressure.

The valve stem packing structure is optimized to reduce friction loss; even under frequent opening, closing and long-time throttling use, sealing performance stays stable, and medium leakage will not occur.

What connection end types can be selected for installation?

Three mainstream connection forms are available for matching different pipeline construction standards:

Flange connection: suitable for large-diameter main pipelines, convenient for disassembly, inspection and maintenance, in line with GB, ASME B16.5 standards;

NPT/BSP threaded connection: small-caliber pipelines, compact installation for small oxygen equipment;

Butt welding end: applied to high-pressure long-distance pipelines, firm connection, good sealing, suitable for heavy-duty engineering projects.

Can I customize oxygen globe valves with special requirements? What OEM & ODM services do you provide?

We fully support flexible OEM and ODM customization:

Appearance customization: carve customer brand LOGO, project number and mark on valve body;

Structure customization: adjust inner polishing roughness, optimize throttling structure, change connection mode;

Standard customization: produce valves according to European EN, American API, national GB and other regional standards;

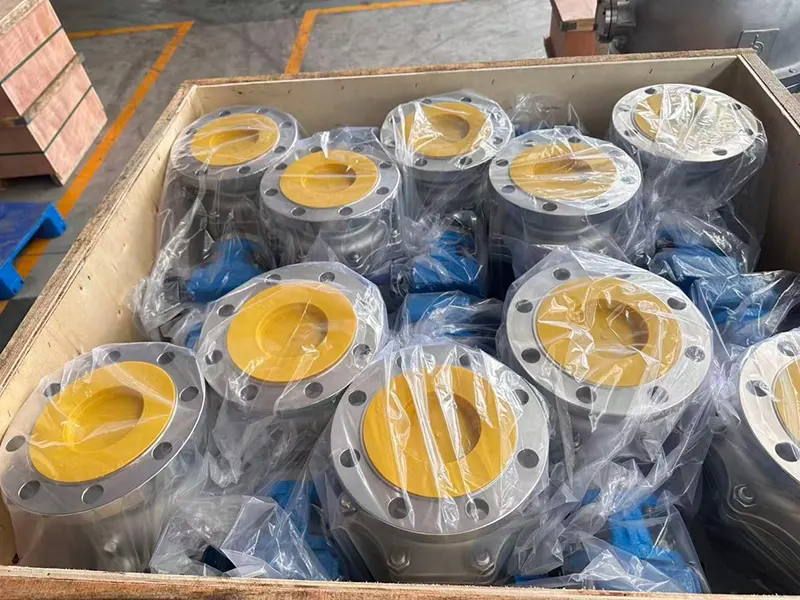

Packaging customization: customize dust-free vacuum packaging, export plywood wooden case packaging.

Our MOQ is flexible, supporting small trial orders and large-scale bulk engineering orders.

What official certificates and inspection reports can you provide for customs clearance and project acceptance?

We can provide complete supporting documents: ISO quality management system certificate, CE pressure equipment certification, raw material material test certificate (MTC), factory hydraulic pressure test report, oil-free cleaning inspection report, dimensional inspection report. All documents are formal and valid, which can smoothly meet overseas customs clearance and domestic and international engineering inspection acceptance requirements.

What quality control measures are adopted in your production process?

We implement full-process quality inspection:

Incoming inspection: strictly test stainless steel raw materials to ensure material composition meets 304/316L standard;

Machining inspection: check dimensional accuracy of valve body, valve core and valve stem in real time during processing;

Finishing inspection: unified cleaning, polishing and cleanliness detection;

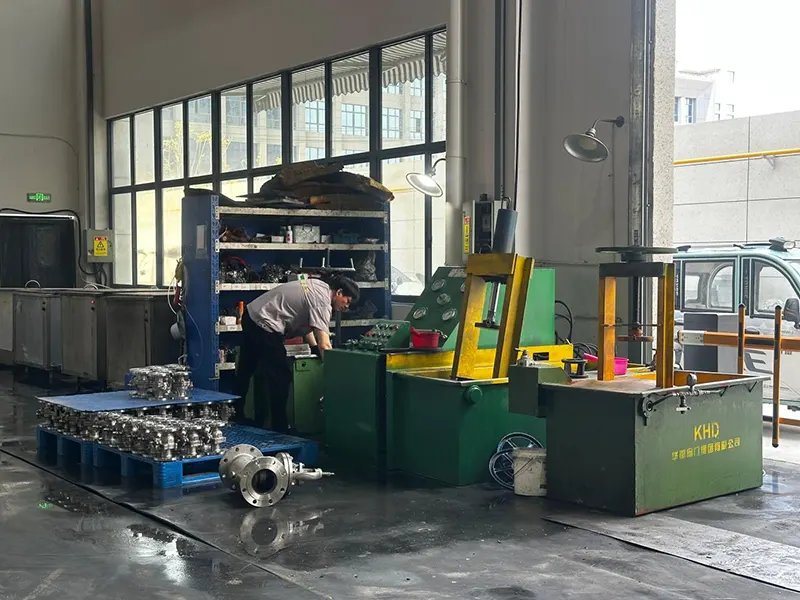

Pressure test: 100% hydraulic shell test and air tightness sealing test;

Archive record: every finished valve has independent production and test records for later quality traceability.

What is your delivery cycle? Can urgent project orders be delivered in advance?

Conventional stainless steel oxygen globe valves of common specifications are in stock, and can be delivered within 1~3 working days after receiving payment.

For conventional customized orders, the production cycle is 7~15 working days; for large engineering bulk orders, the delivery schedule can be negotiated separately.

For urgent emergency orders, we will arrange priority production lines to shorten the delivery period properly.

What are the key installation and maintenance tips for oxygen globe valves?

Installation must keep the valve cavity clean; do not use ordinary greasy tools during installation to avoid oil contamination;

Install strictly according to the medium flow direction marked on the valve body;

Do not open and close the valve rapidly and violently in daily use, slow operation can protect the sealing surface;

Regularly check the tightness of packing and flange position; once abnormal leakage appears, stop using immediately and clean or replace accessories after cutting off oxygen supply.

What are your advantages compared with other valve suppliers?

We are a professional valve manufacturer with ISO and CE certification, with independent production workshop and complete processing equipment. We have rich experience in oxygen special valve manufacturing, mature oil-free cleaning technology, stable product quality, direct factory price without middleman markup. Long-term cooperation clients cover Southeast Asia, the Middle East, Europe and other regions, with reliable after-sales service guarantee.
